*Please note – spec applies to all sizes unless listed separately
Frameset
Frame:

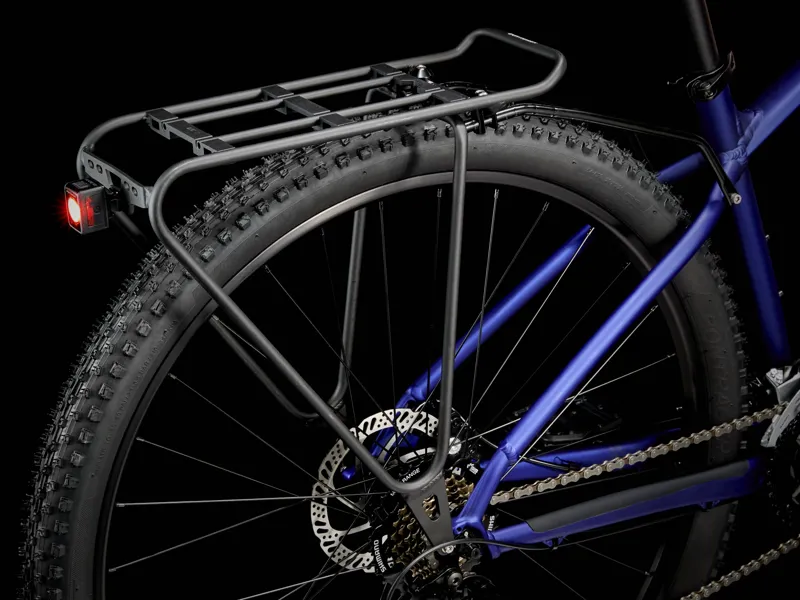

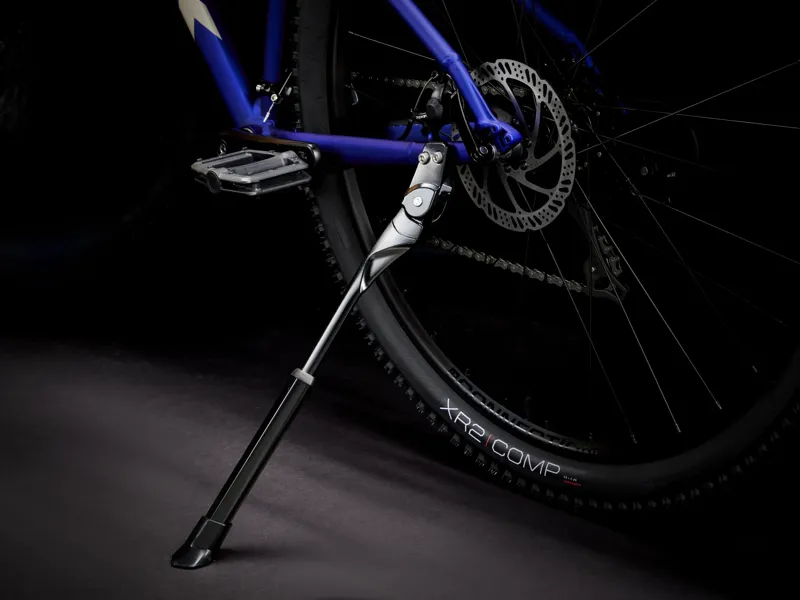

Size: XS, S – Alpha Silver Aluminium, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5 mm QR
Size: M, ML, L, XL, XXL – Alpha Silver Aluminium, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5 mm QR
Fork:

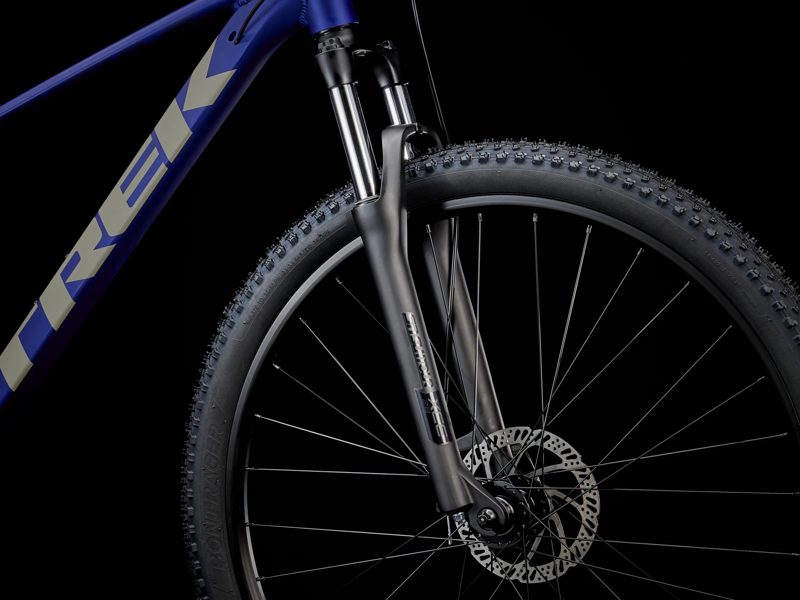

Size: XS – SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
Size: S – SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Size: M, ML, L, XL, XXL – SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Max compatible fork travel: 100 mm (XS and S: 490 mm axle-to-crown, M and up: 509 mm axle-to-crown)
Wheels
Rear skewer: 152x5 mm QR

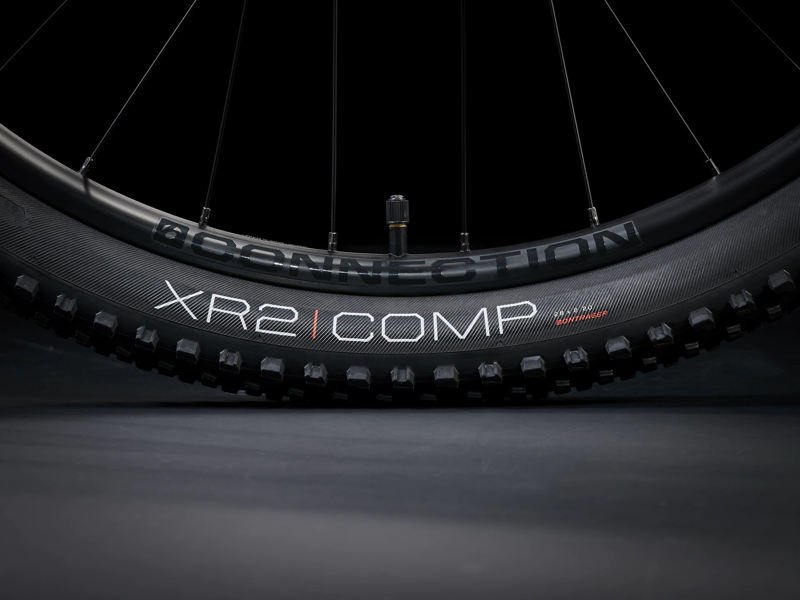

Max tyre size: Frame: 29x2.20" (XS & S: 27.5x2.40"), Fork: See manufacturer

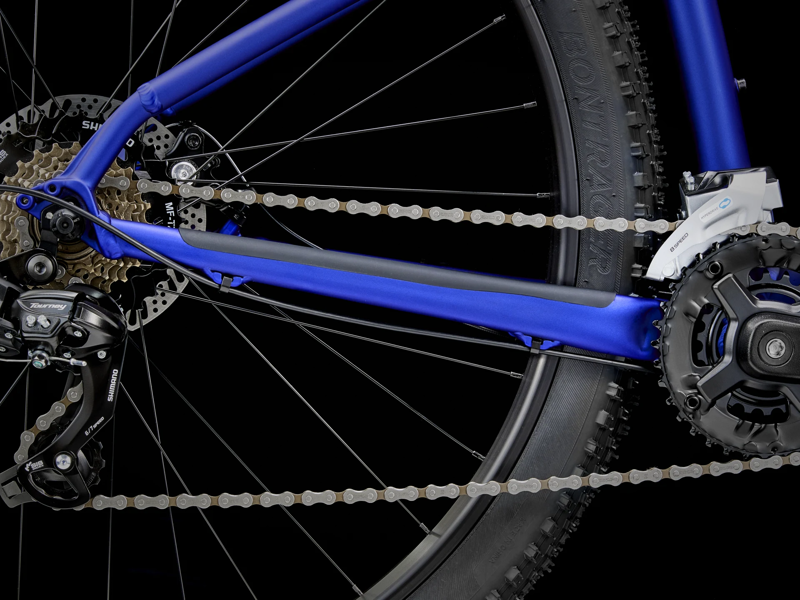

Drivetrain
Shifter: Shimano EF500, 2-speed (XS, S, M, ML, L, XL, XXL)
Shimano Altus EF500, 7-speed (XS, S, M, ML, L, XL, XXL)
Front derailleur: Shimano Altus M315, 34.9 mm clamp, top swing, dual pull
Rear derailleur: Shimano Tourney TY300

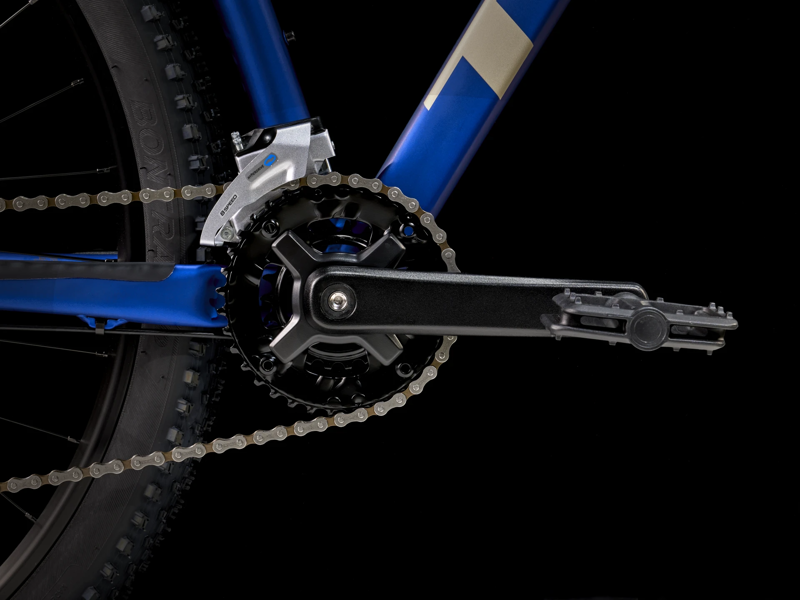

Crank:
Size: XS, S, M – ProWheel TM-CY10, 36/22, 170 mm length
Size: ML, L, XL, XXL – ProWheel TM-CY10, 36/22, 175 mm length
Bottom bracket: VP BC73, 73 mm, threaded cartridge
Cassette: Shimano TZ500, 14-34, 7-speed
Chain: KMC Z7, 7-speed
Pedal: VP-536 nylon platform
Max. chainring size: 1x/2x: 34T, 3x: 42T
Components
Saddle: Bontrager Verse Short, stainless steel rails
Seatpost:
Size: XS, S – Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: M – Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length
Size: ML, L, XL, XXL – Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length

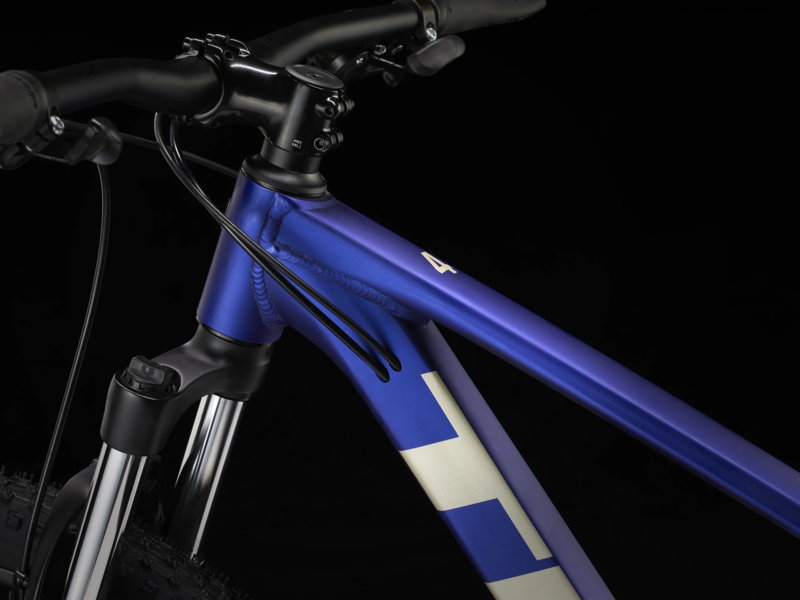

Handlebar:
Size: XS, S – Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Size: M, ML, L, XL, XXL – Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips: Bontrager XR Endurance Comp, lock-on
Stem:
Size: XS, S – Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
Size: M – Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size: ML, L – Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Size: XL, XXL – Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length
Headset: Semi-integrated, 1-1/8"
Brakes
Brake:

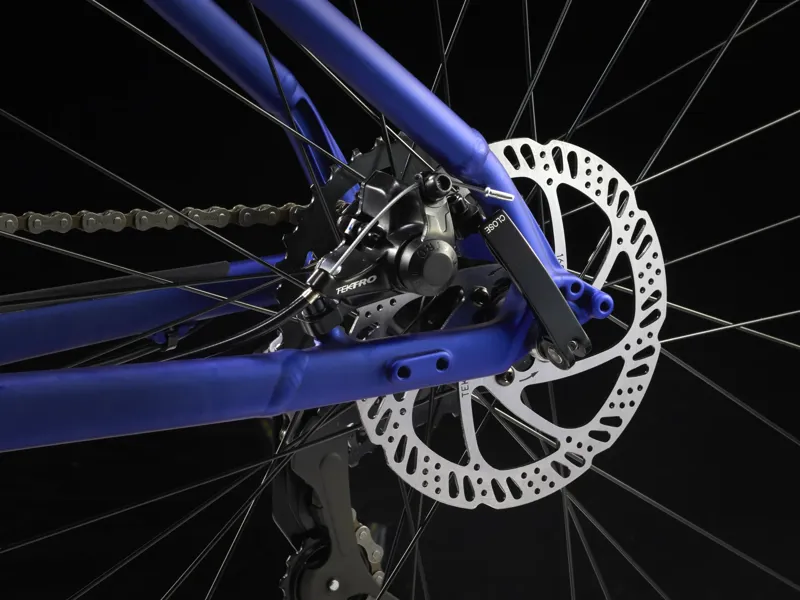

Size: XS, S, M, ML, L, XL, XXL – Tektro MD-M280 mechanical disc
Size: XS, S, M, ML, L, XL, XXL – Tektro MD-M281 mechanical disc
Brake rotor: Tektro, 6-bolt, 160 mm
Weight
Weight: M – 14.60 kg / 32.19 lbs
Weight limit: 136 kg (300 lb)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
