Please note – spec applies to all sizes unless listed separately.
Frameset

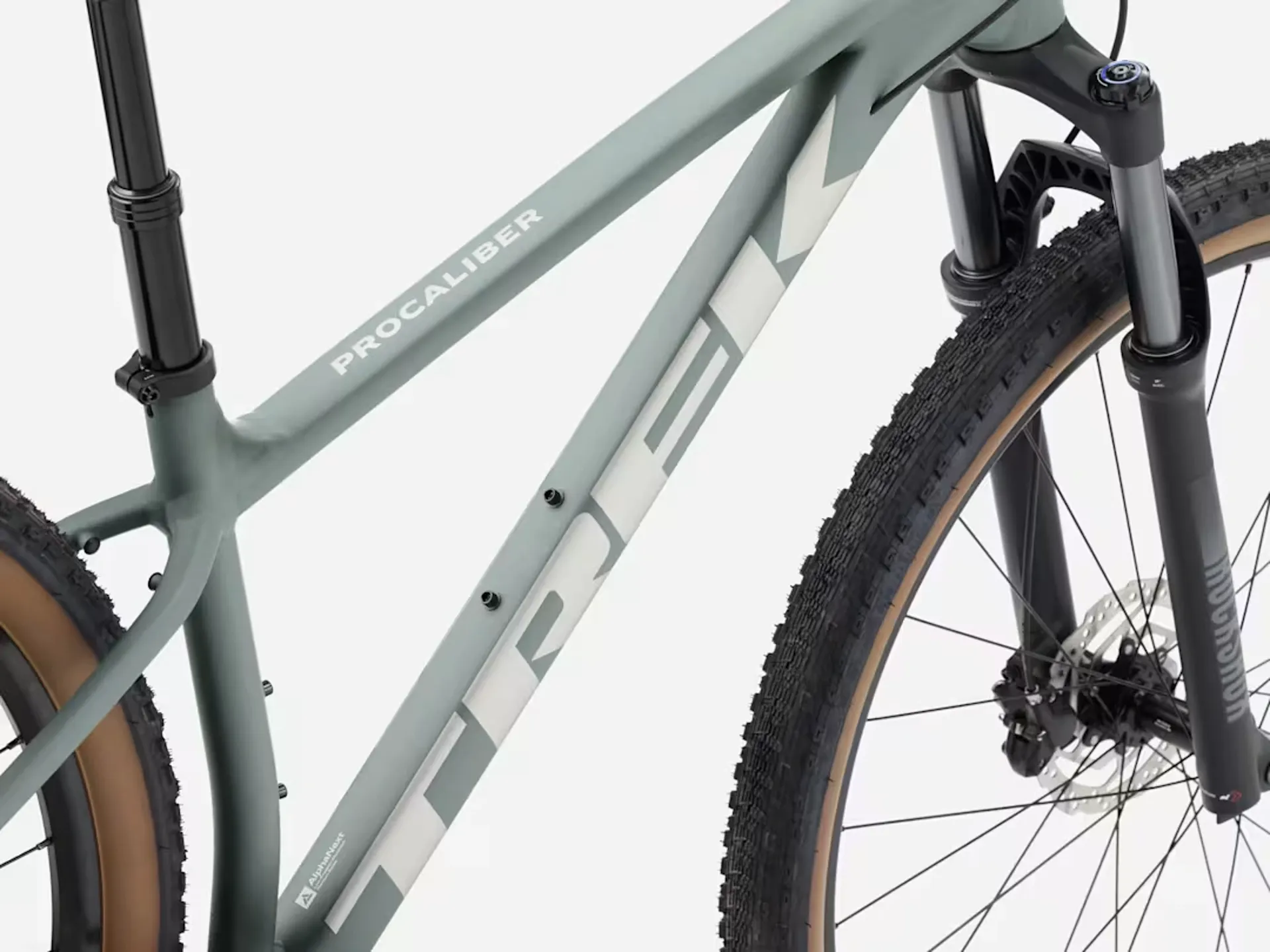

Frame: Alpha Platinum Aluminium, tapered head tube, internal routing, BSA 73, hidden rack and kickstand mounts, UDH, Boost148, 12 mm thru axle

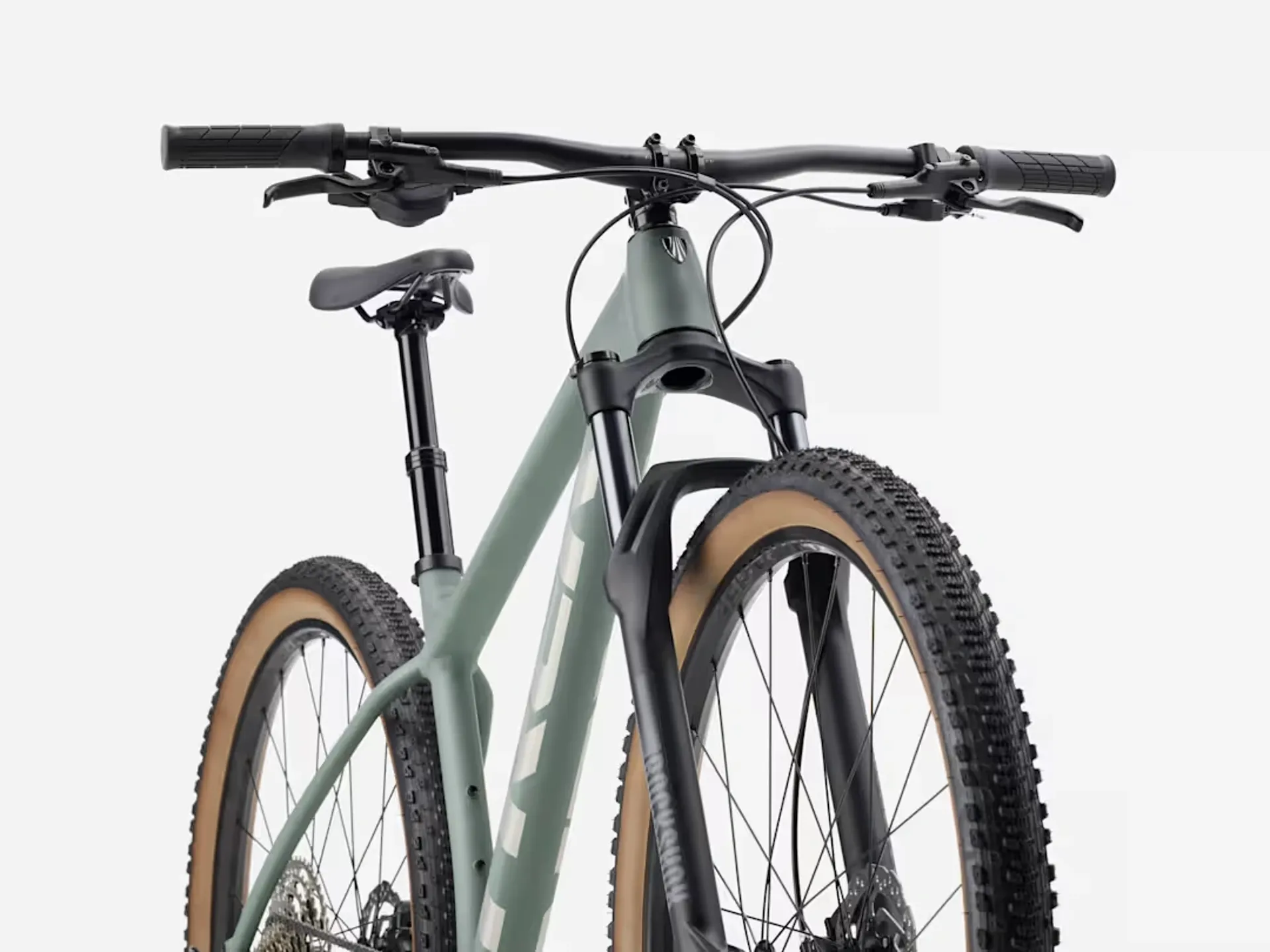

Fork: RockShox Judy Silver, Solo Air spring, TurnKey lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Wheels and tyres
Front hub: Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
Rear hub: Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
Rear skewer: Bontrager Switch thru axle, removable lever
Rims: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Tyres: Sizes S, M, ML, L and XL: Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.20" or 29x2.40"
Rim strip: Bontrager TLR
Maximum tyre size: Frame: 29x2.40" / Fork: see manufacturer

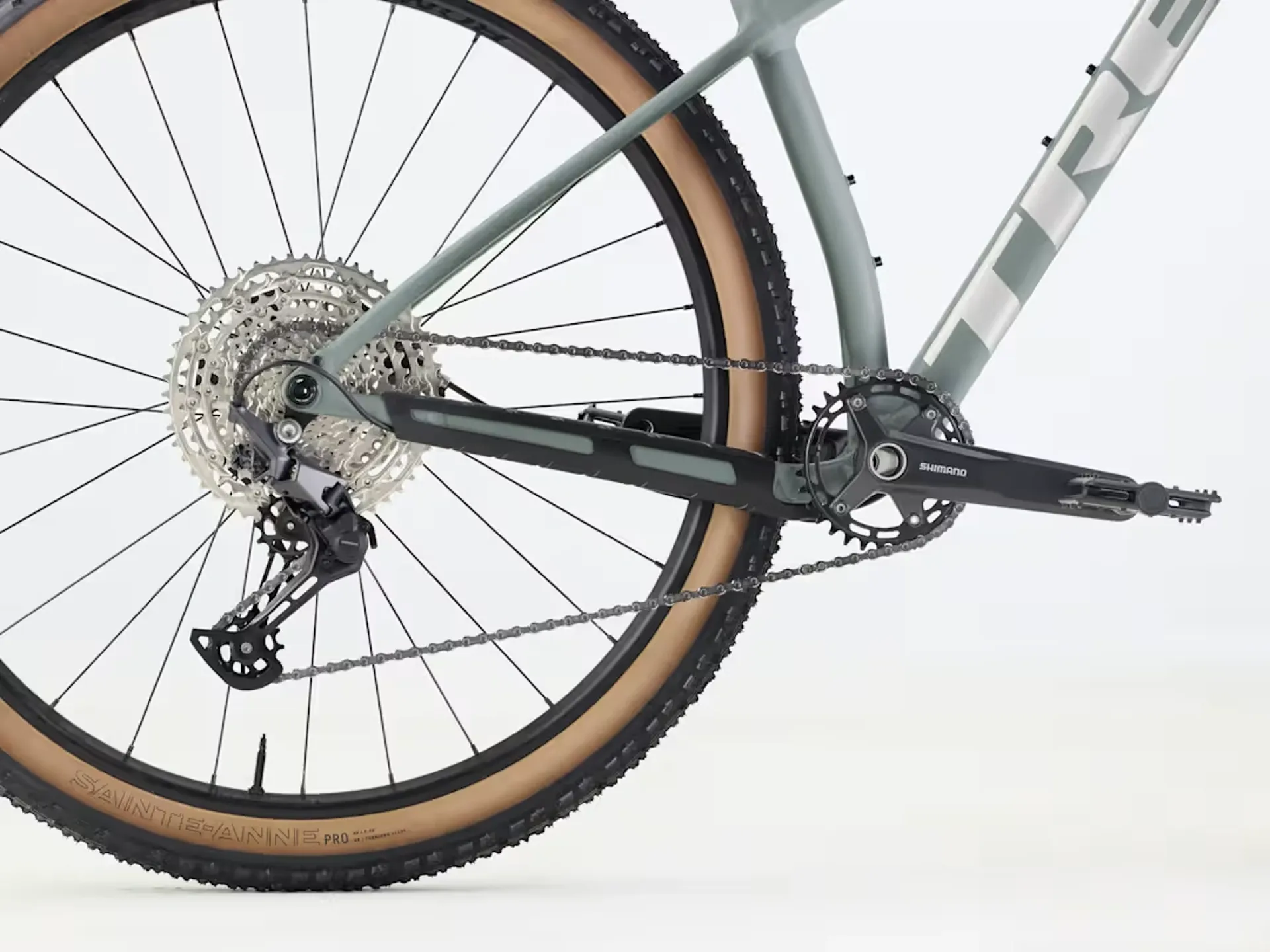

Drivetrain and brakes
Shifter: Shimano Deore M6200
Rear derailleur: Shimano Deore M6200, long cage
Crank: Shimano MT520, 32T, 55 mm chainline, 170 mm length
Bottom bracket: Shimano BB-MT501 BSA
Cassette: Shimano M6200, 10-51, 12-speed
Chain: Shimano Deore M6100, 12-speed
Pedals: VP-536 nylon platform
Maximum chainring size: See service manual
Brakes: Shimano MT200 hydraulic disc
Brake rotors: Sizes S, M and ML: Shimano RT10, CenterLock, 160 mm / Sizes L and XL: Shimano RT10, CenterLock, 160 mm or 180 mm
Maximum brake rotor size: Frame: 180 mm / Fork: see fork manufacturer

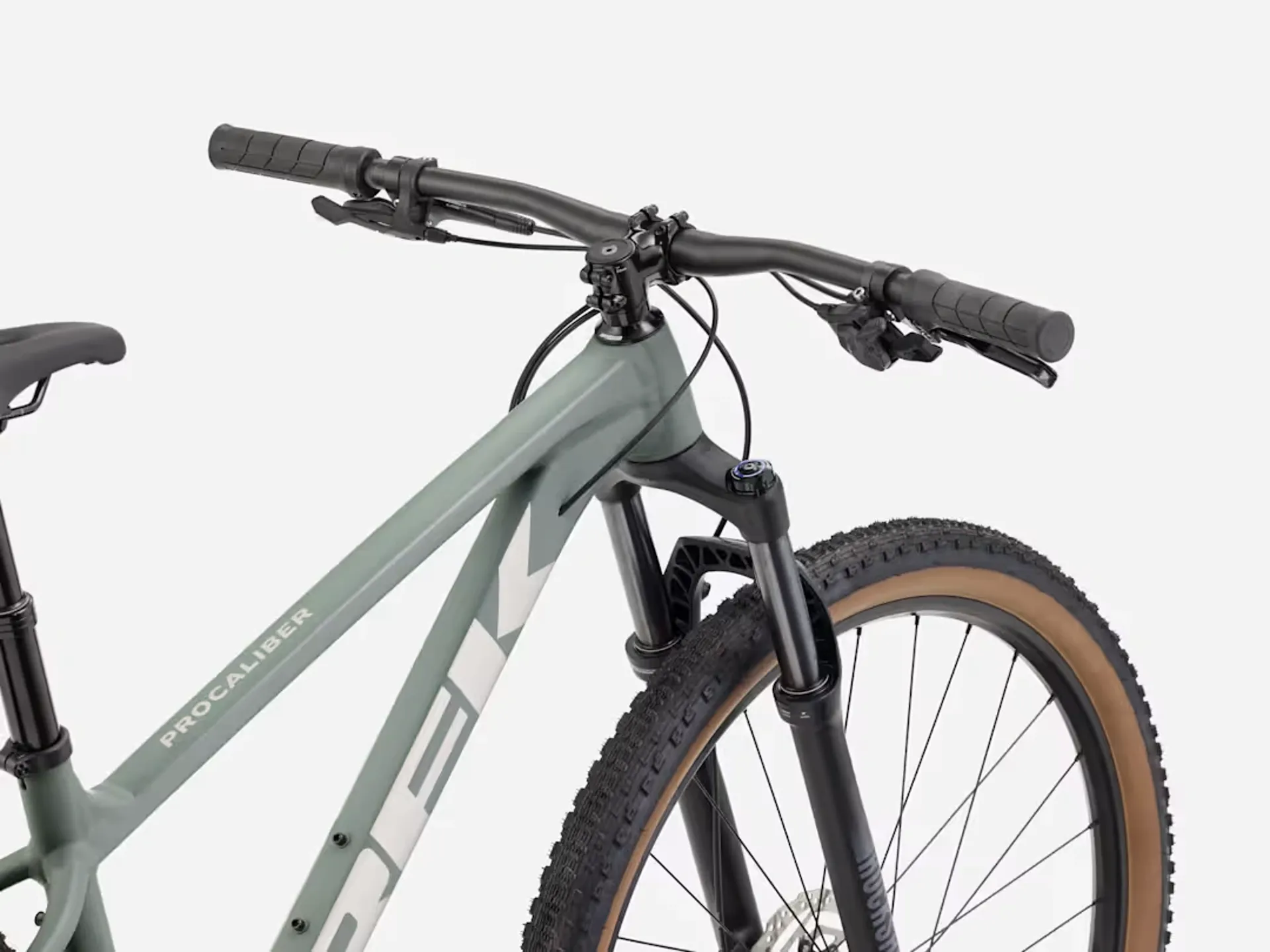

Cockpit
Handlebar: Size S: Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width / Sizes M, ML, L and XL: Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips: Trek Line Comp, lock-on
Stem: Sizes S and M: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length / Size ML: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length / Size L: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length / Size XL: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length
Headset: Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom
Additional Features
Saddle: Verse Short, steel rails, 145 mm width
Seatpost: Sizes S and M: TranzX JD-YSI34, 100 mm travel, internal routing, 31.6 mm, 350 mm length / Sizes ML and L: TranzX JD-YSI34, 150 mm travel, internal routing, 31.6 mm, 456 mm length / Size XL: TranzX JD-YSI34, 170 mm travel, internal routing, 31.6 mm, 500 mm length
Weight
Weight: Size M – 14.08 kg / 31.05 lbs, with TLR sealant and no tubes
Weight limit: This bike has a maximum total weight limit, including the bicycle, rider and cargo, of 136 kg / 300 lbs.
Care Instructions
We reserve the right to make changes to the product information at any time without notice, including equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted without notice.
Bike and frame weights are based on pre-production painted frames at the time of publication. Final production weights may vary.
