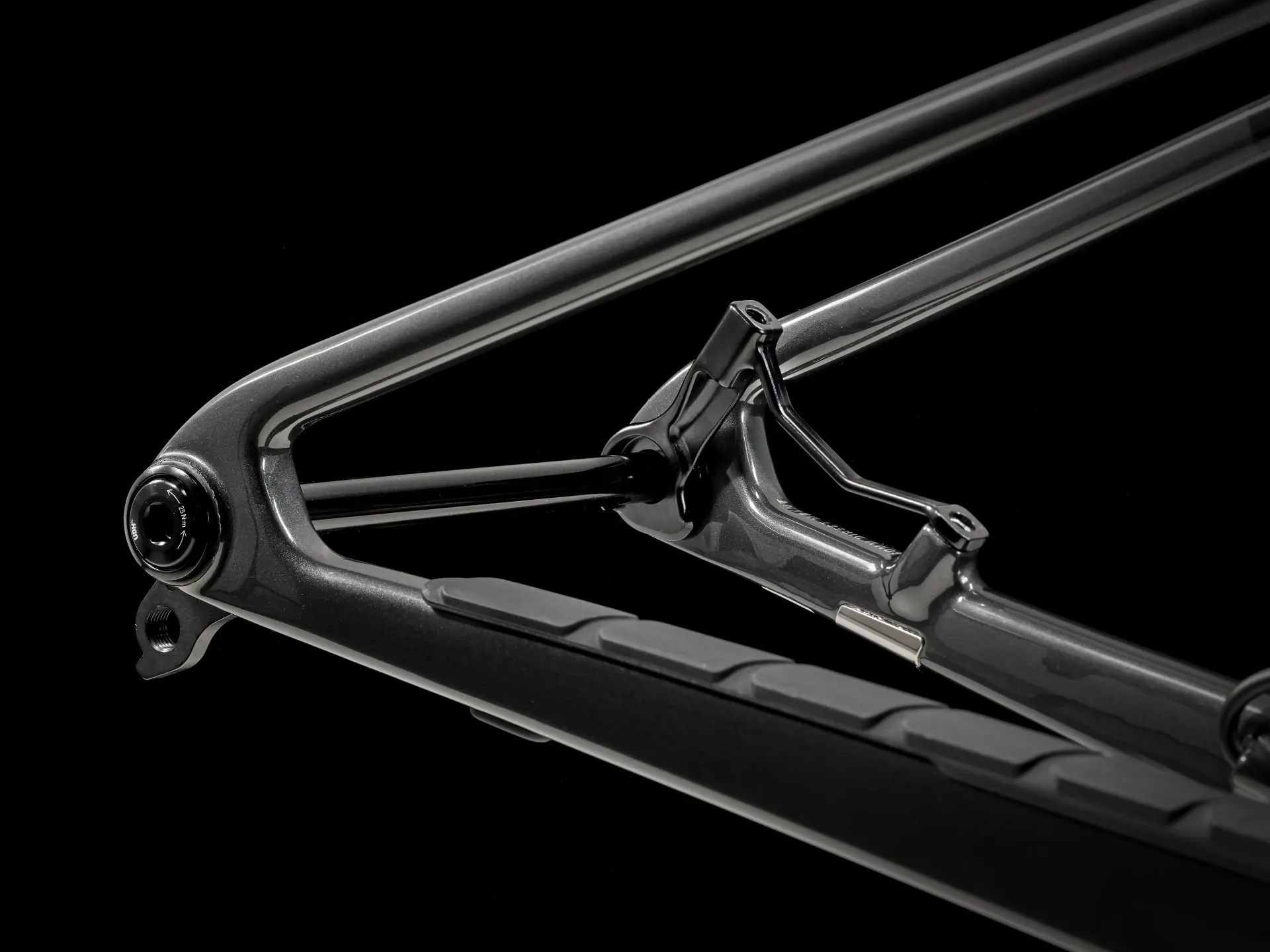

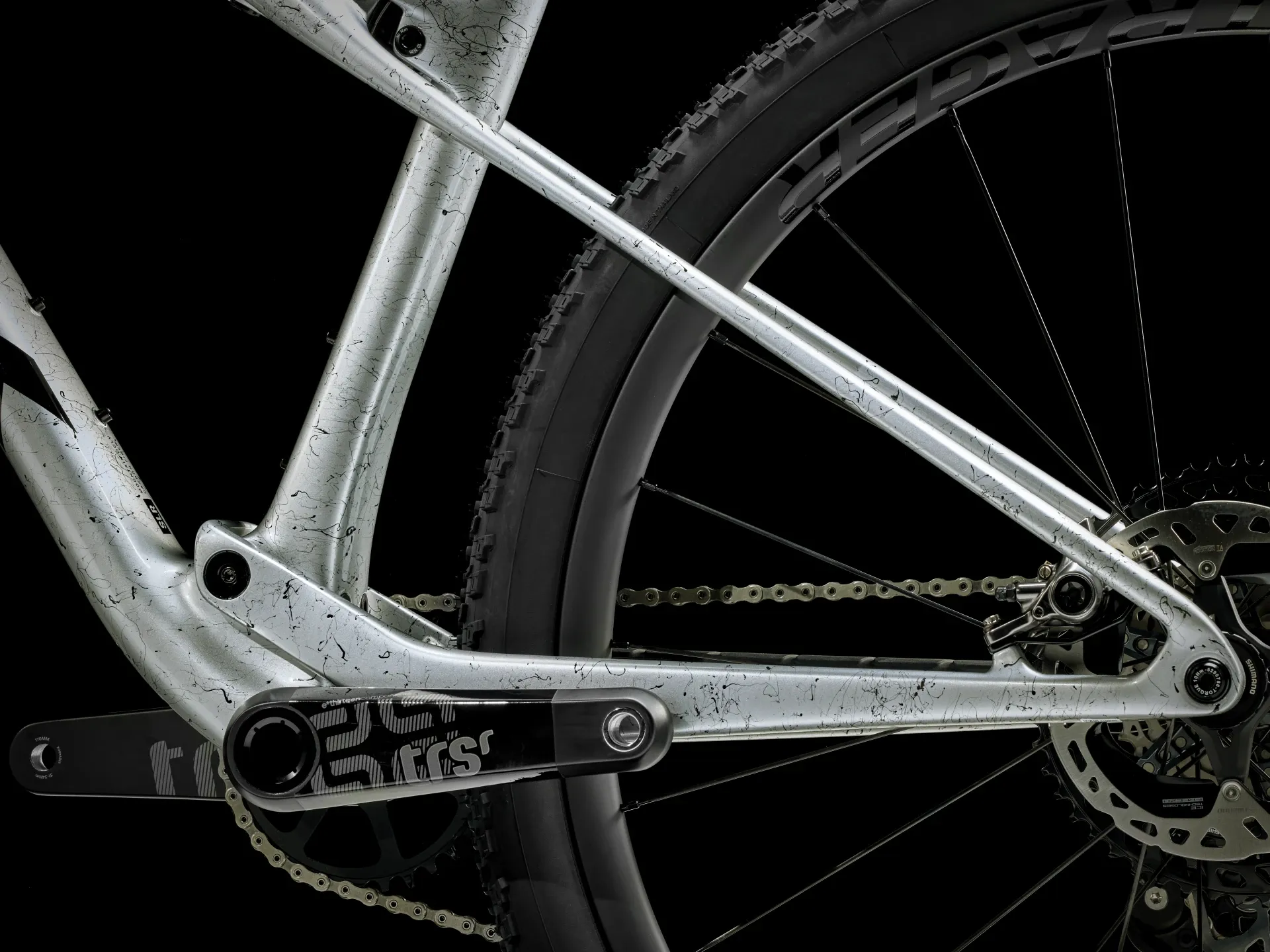

Frame
SLR OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel
Frame set
SLR OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel
Fork
Fox Factory 34 Step-Cast, Float EVOL air spring, FIT4 2-position damper, dual remote lockout, tapered steerer, 44 mm offset, Kashima Coat, Boost110, 15 mm Kabolt axle, 110 mm travel

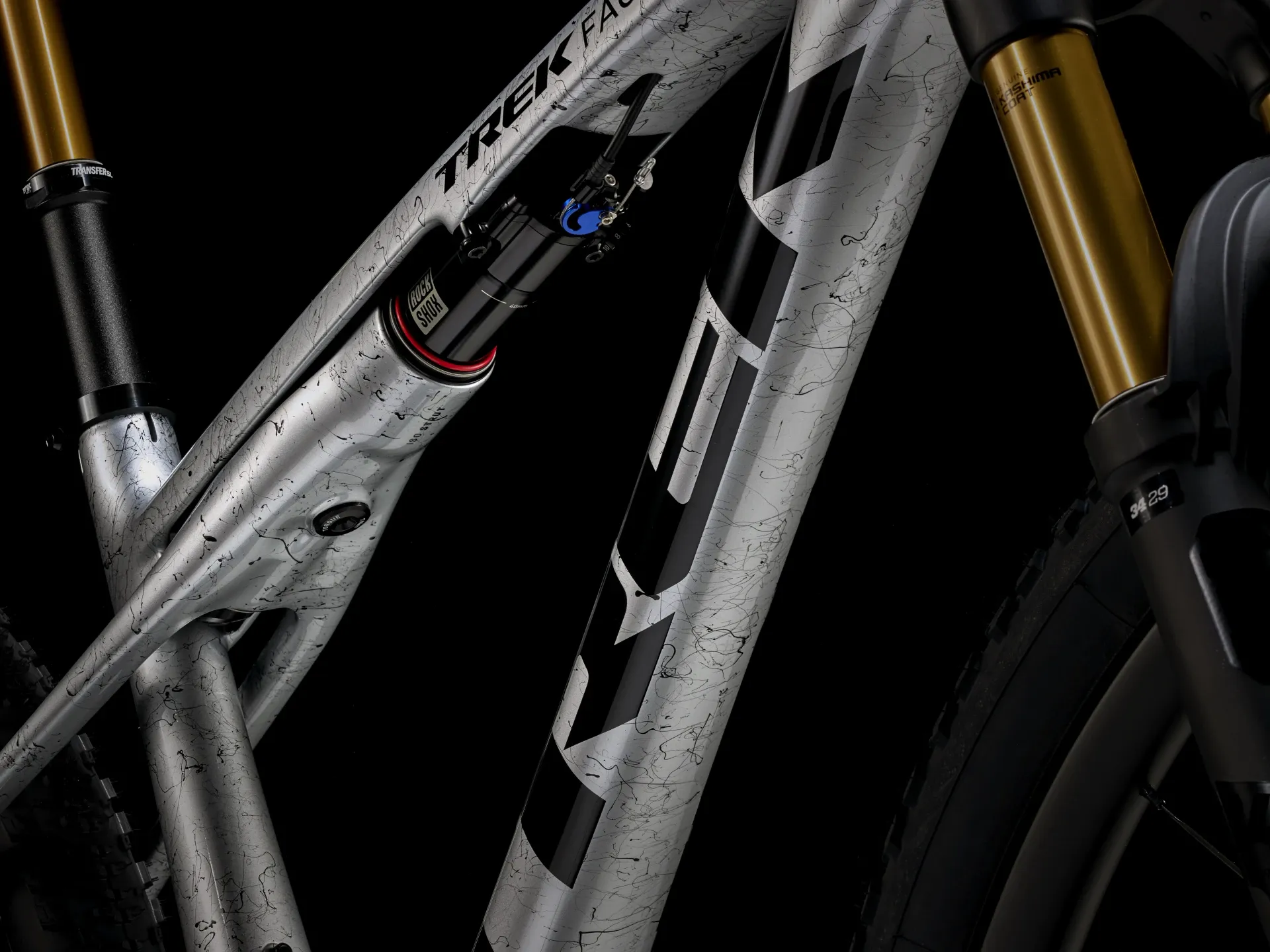

Shock

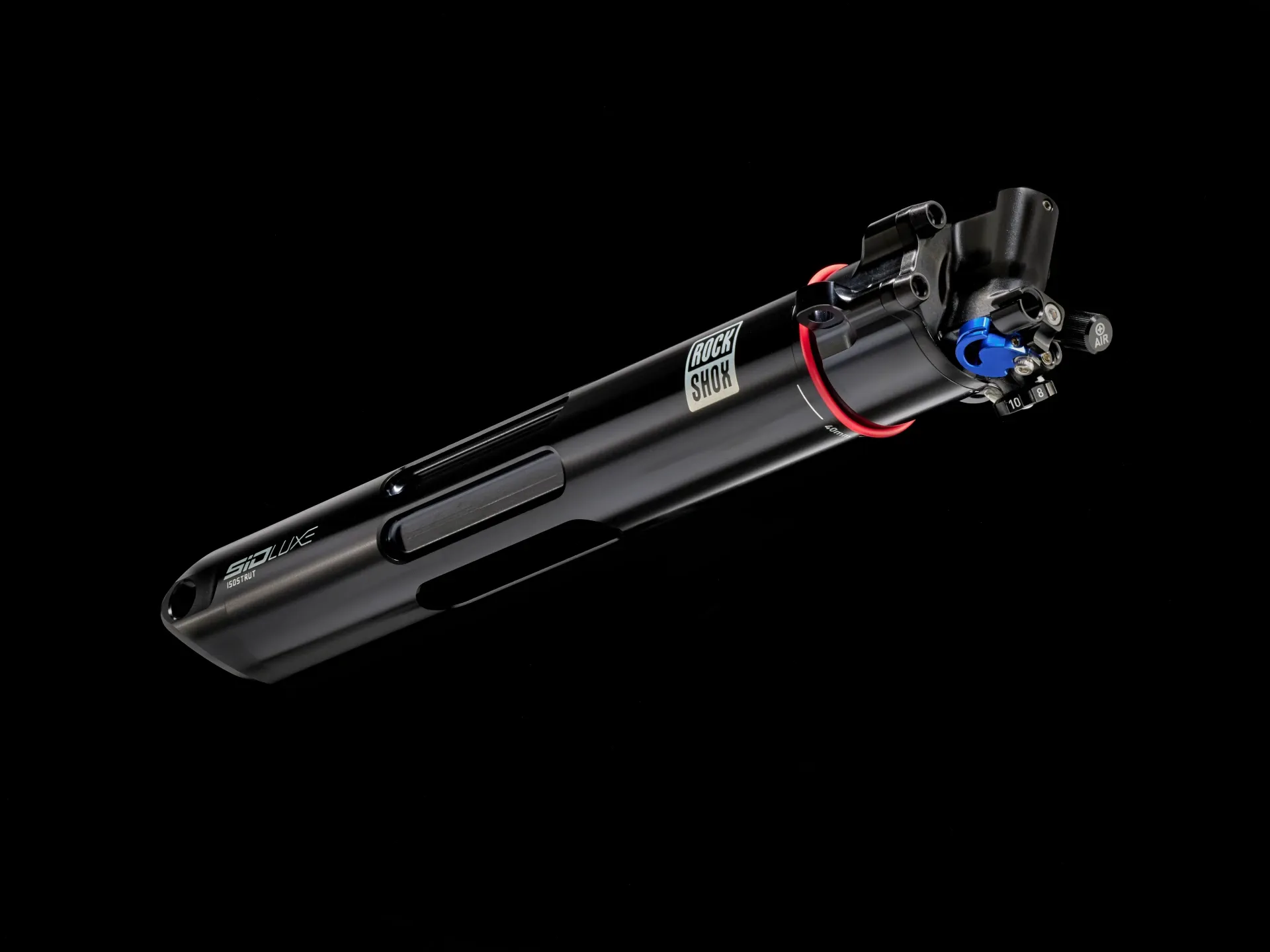

Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper
Max compatible fork travel
120 mm (533 mm axle-to-crown)
Wheel front

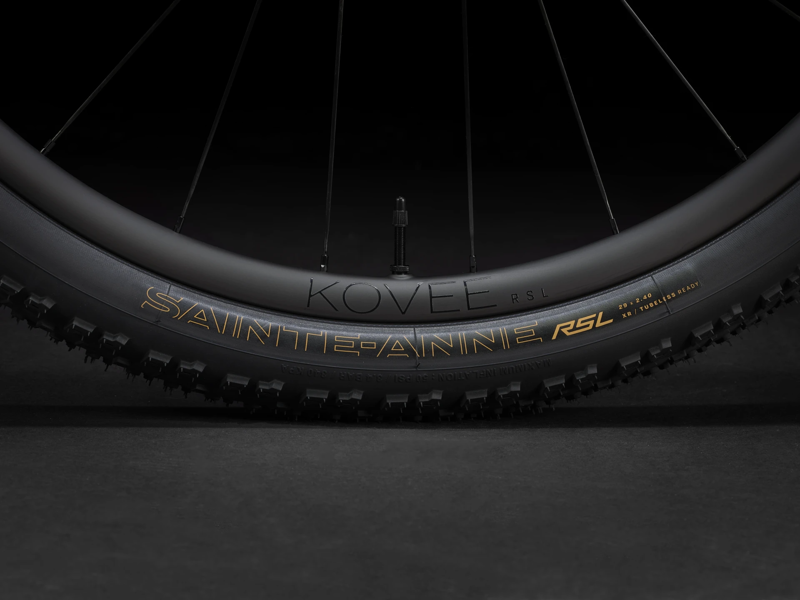

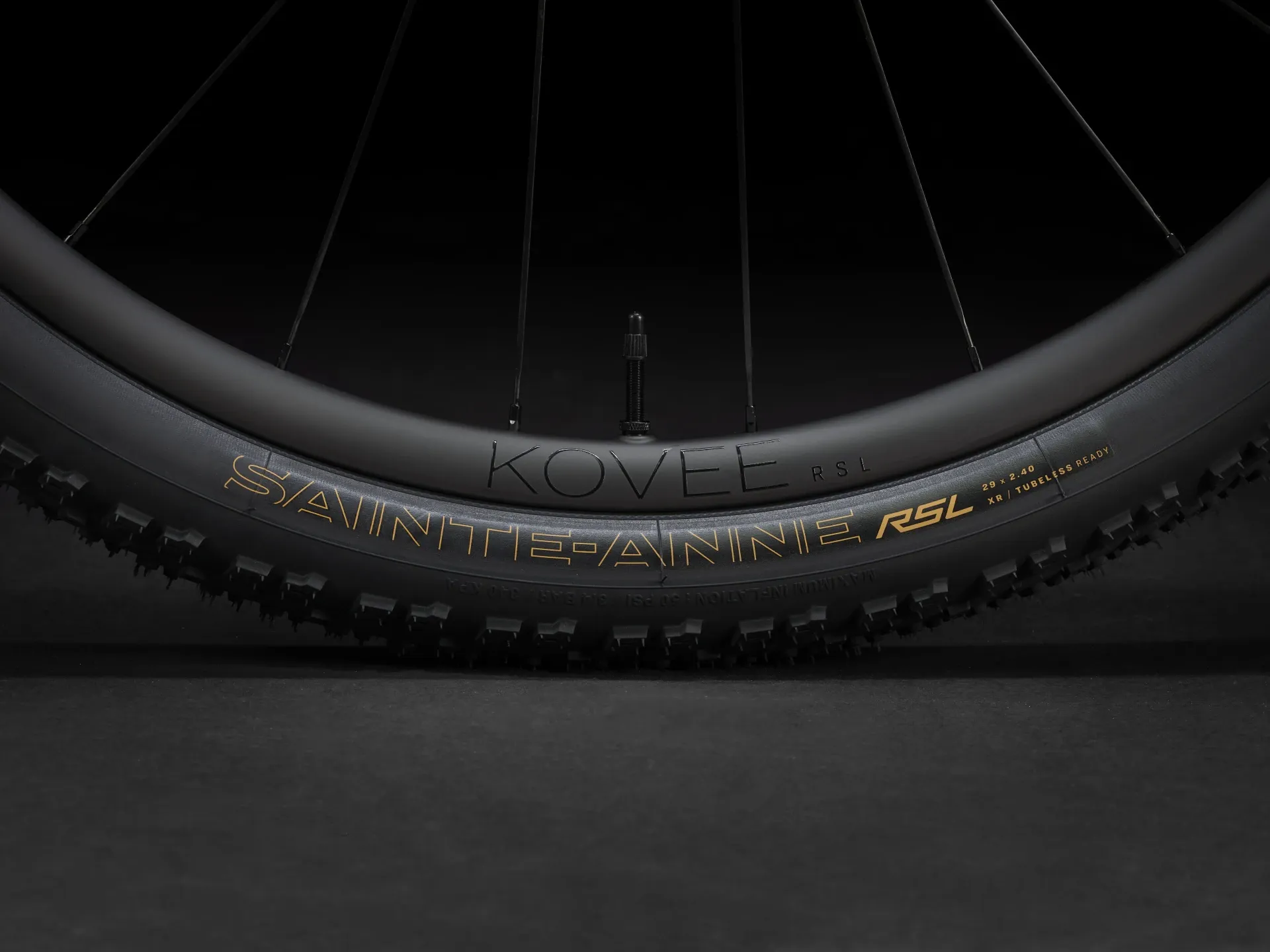

Bontrager Kovee RSL, OCLV Mountain Carbon, Tubeless Ready, CentreLock, Boost110, 15 mm thru axle
Wheel rear
Bontrager Kovee RSL, OCLV Mountain Carbon, Tubeless Ready, CentreLock, Boost148, 12 mm thru axle
Tyre
Bontrager Sainte-Anne RSL XR, Tubeless Ready, dual compound, aramid bead, 220 tpi, 29x2.40"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.40", Fork: See manufacturer
Shifter
Shimano XTR M9100, 12-speed

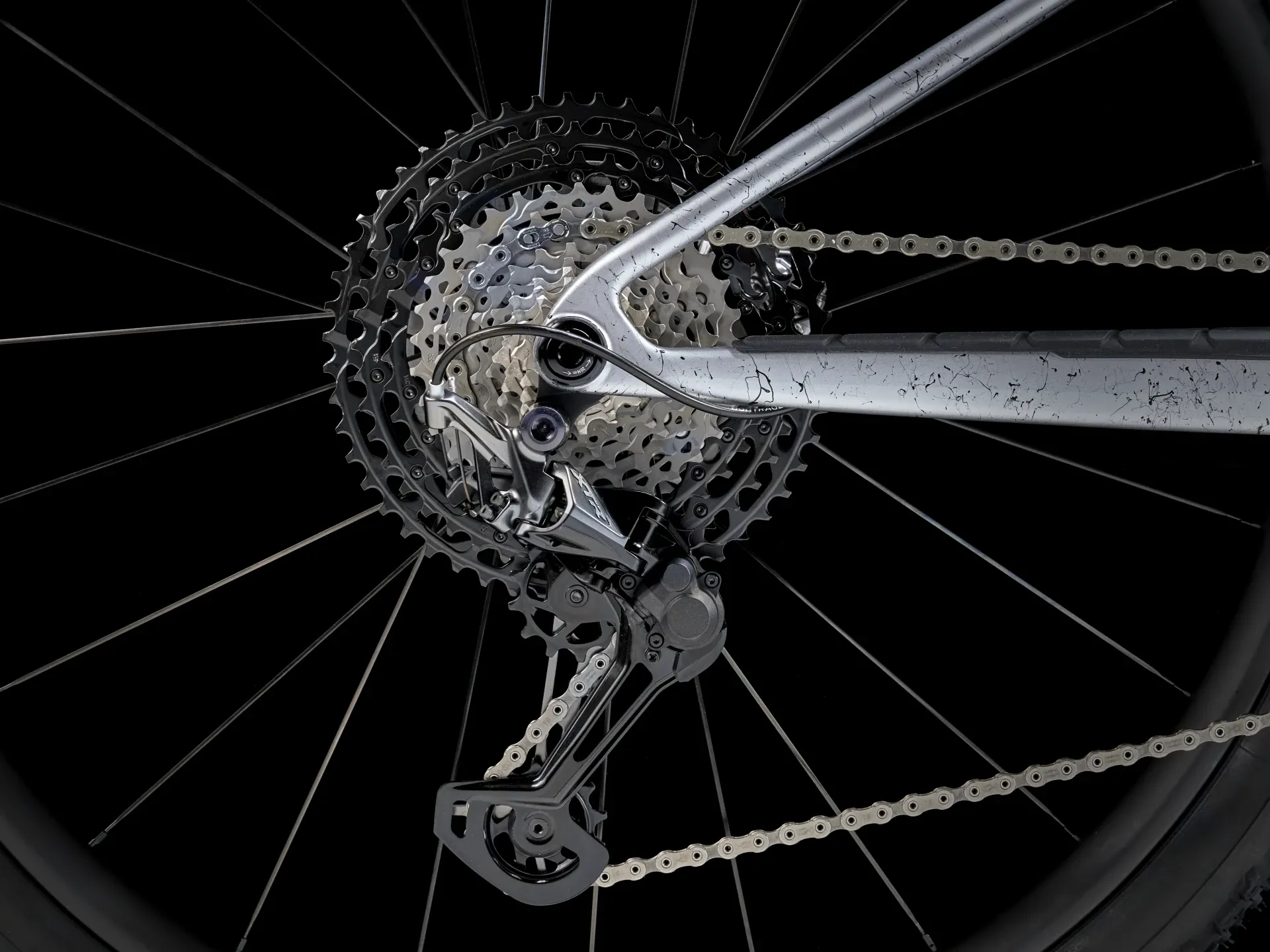

Rear derailleur
Shimano XTR M9100, Shadow Plus, long cage, 51-T max cog

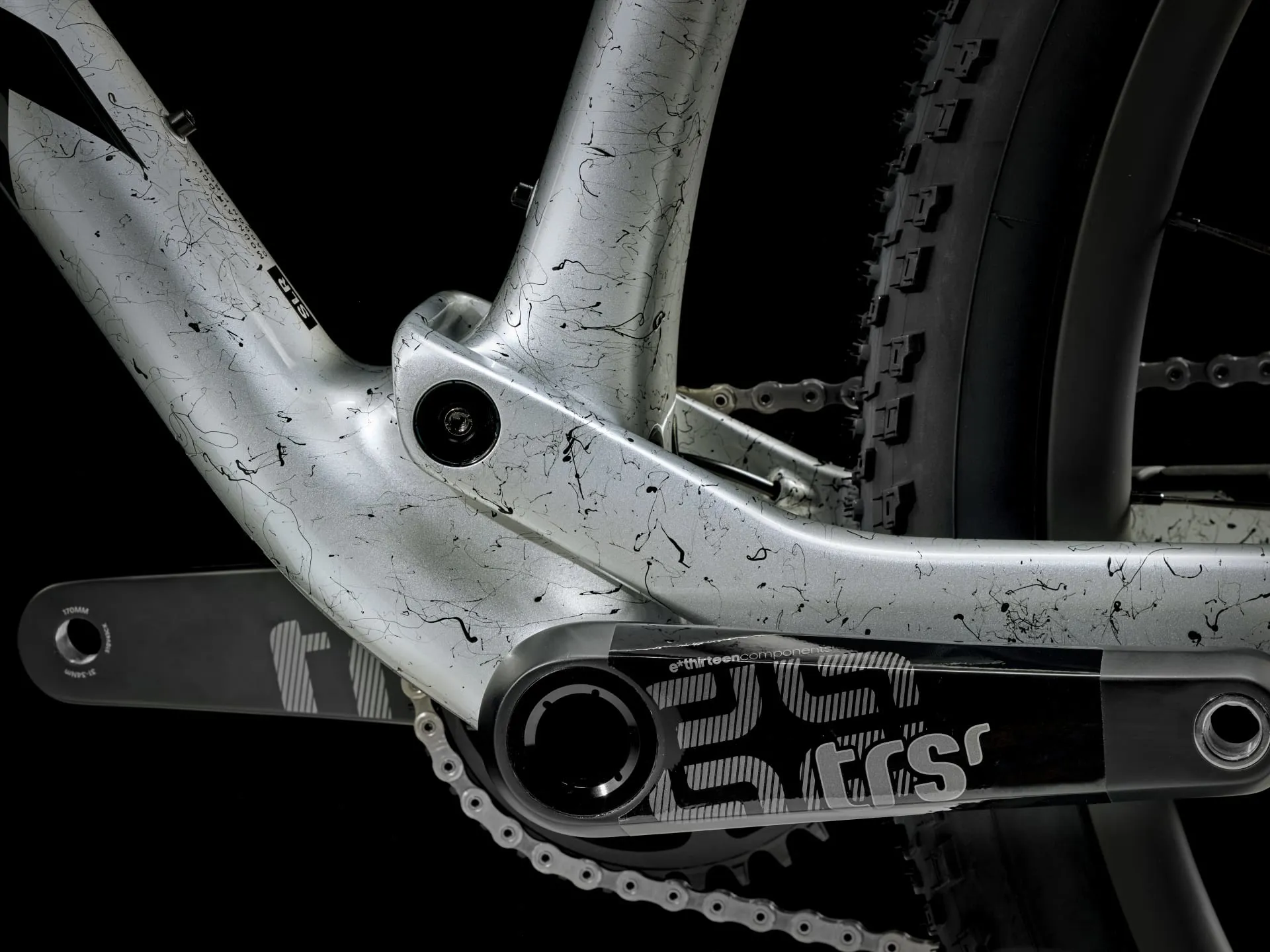

Bottom bracket
E*thirteen BB20-92
Cassette
Shimano XTR M9101, 10-51, 12-speed
Chain
Shimano Dura-Ace/XTR M9100, 12-speed

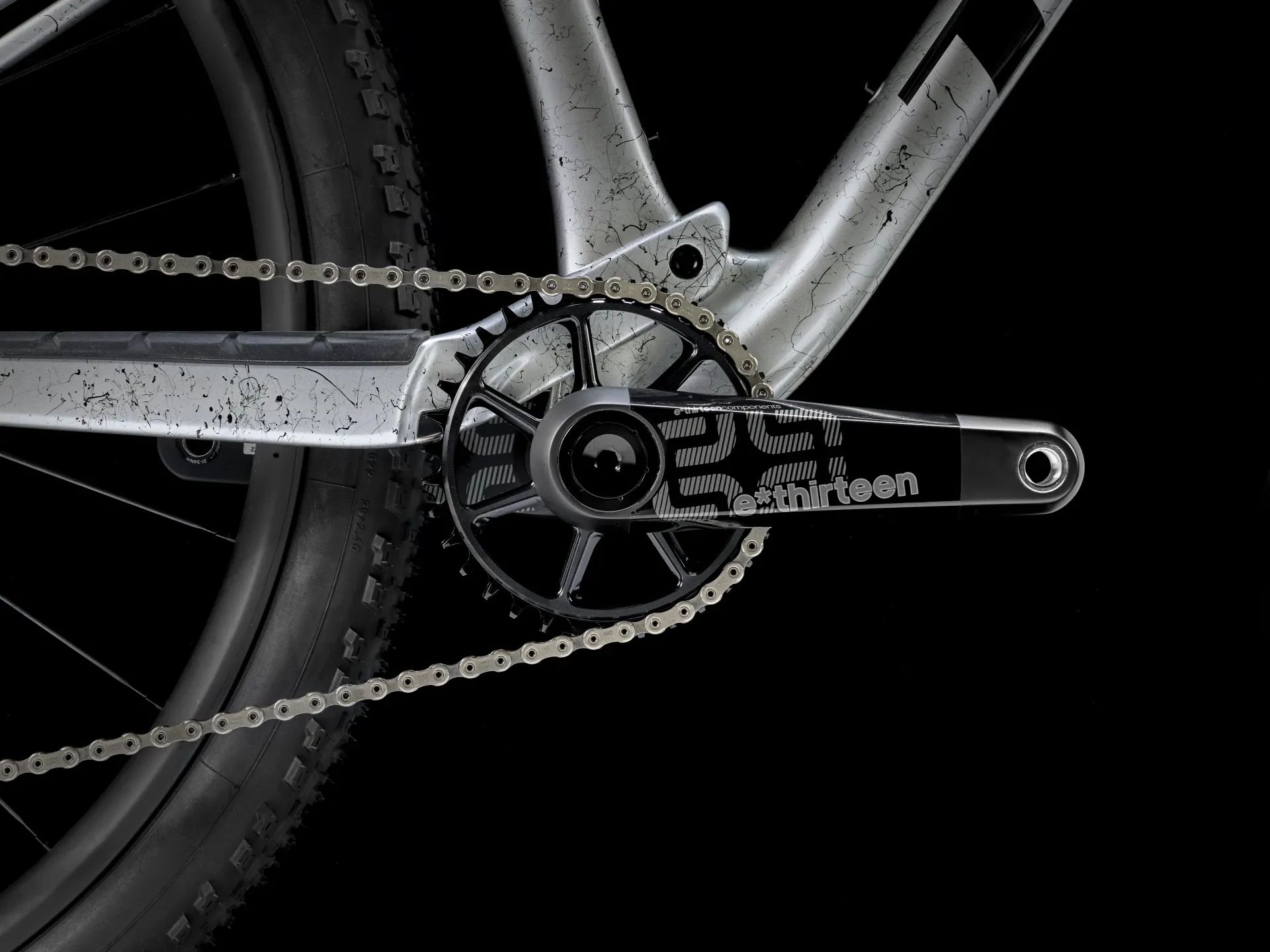

Max. chainring size
1x: 38T, min 30T
Saddle
Aeolus RSL, carbon rails, 145 mm width
Seatpost
Size:S, M
Fox Transfer SL, 100 mm travel, internal routing, 31.6 mm
Size:M/L, L
Fox Transfer SL, 125 mm travel, internal routing, 31.6 mm
Size:XL
Fox Transfer SL, 150 mm travel, internal routing, 31.6 mm

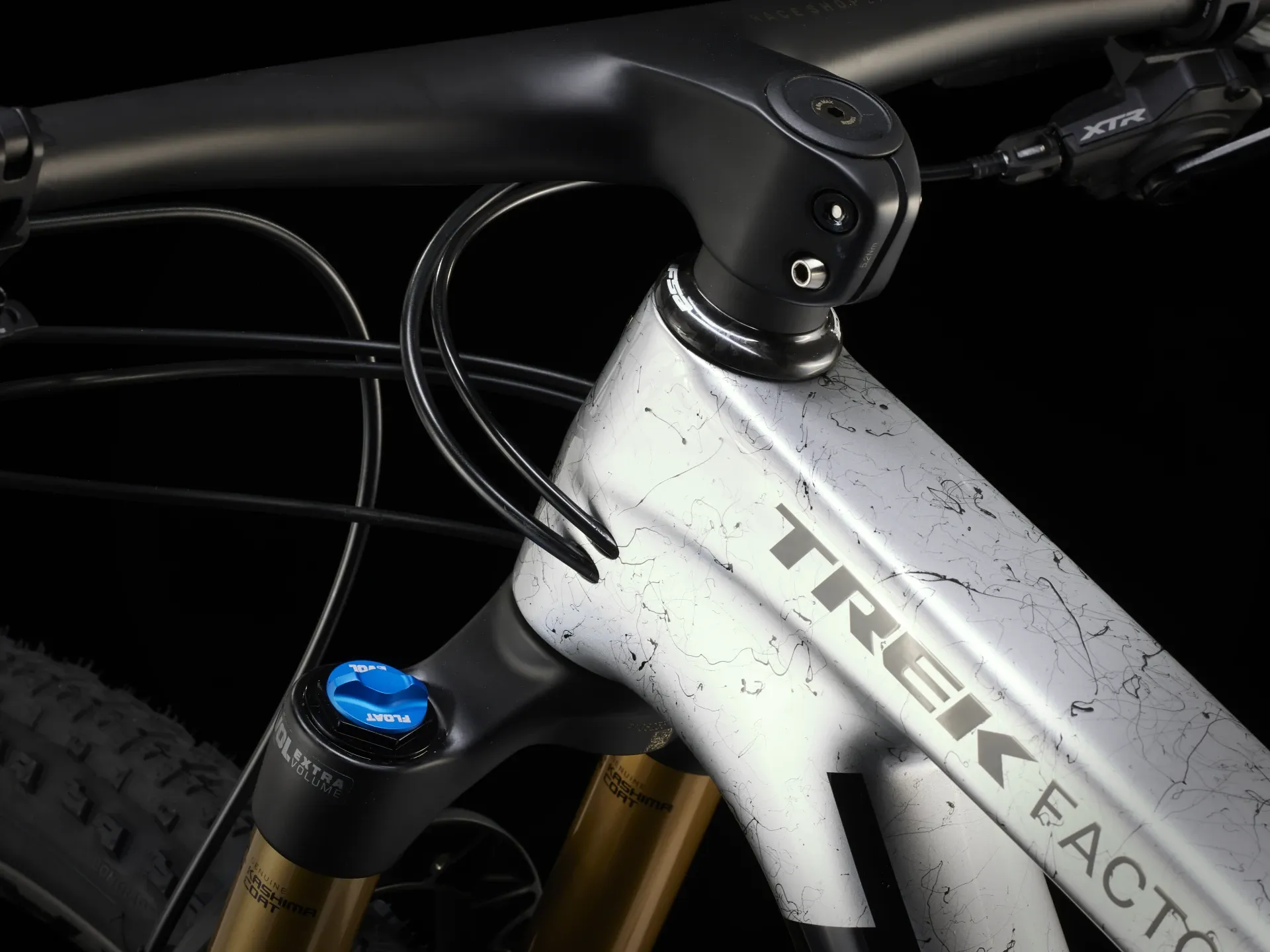

Handlebar/stem (integrated)
Size:S, M, M/L
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 70 mm length
Size:L
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 80 mm length
Size:XL
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 90 mm length
Head set
FSA IS-2, 1-1/8" top, 1.5" bottom
Brake
Shimano XTR M9100 hydraulic disc
Brake rotor
Shimano MT900, CentreLock, 160mm
Rotor size
Max brake rotor sizes: 160mm front & rear
Weight
M - 9.75 kg / 21.5 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
