Please note – spec applies to all sizes unless listed separately
Frameset
Frame: C:62® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing

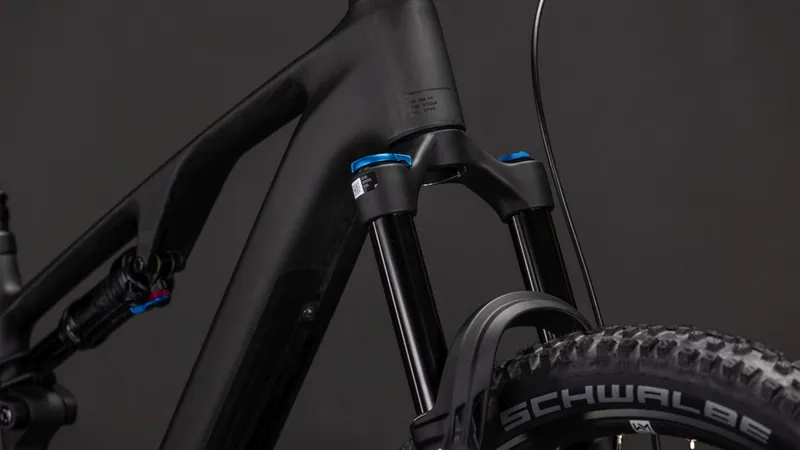

Fork: Fox 34 Float Rhythm GRIP, Tapered, 15x110mm, 140mm travel

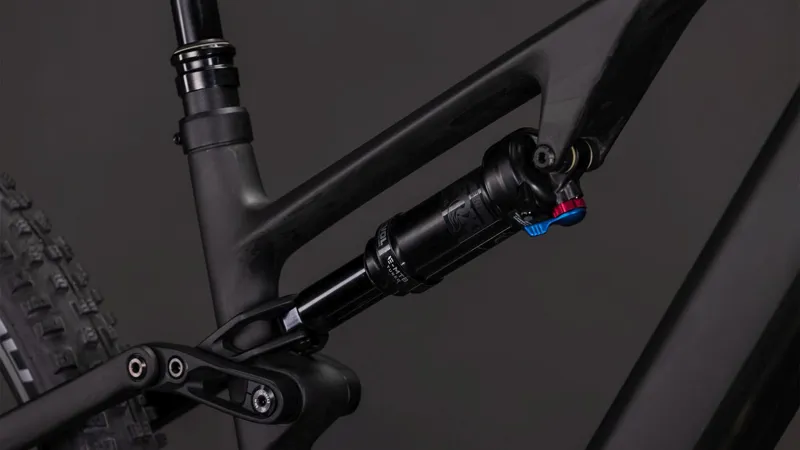

Shock: Fox Float Rhythm RC, 210x55mm, Adjustable LSR with 2-Position Lever
E-bike System

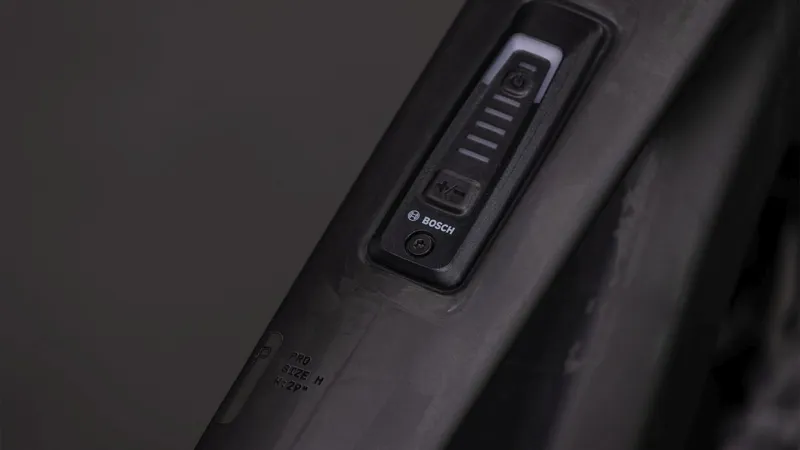

Engine: Bosch Drive Unit Performance SX, max. 60 Nm (BDU31)
Battery: Bosch CompactTube 400
Drivetrain & Brakes
Front Brake: Shimano XT BR-M8120, Hydraulic Disc (203/180 mm)
Rear Brake: Shimano XT BR-M8120, Hydraulic Disc (203/180 mm)
Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifters: Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus

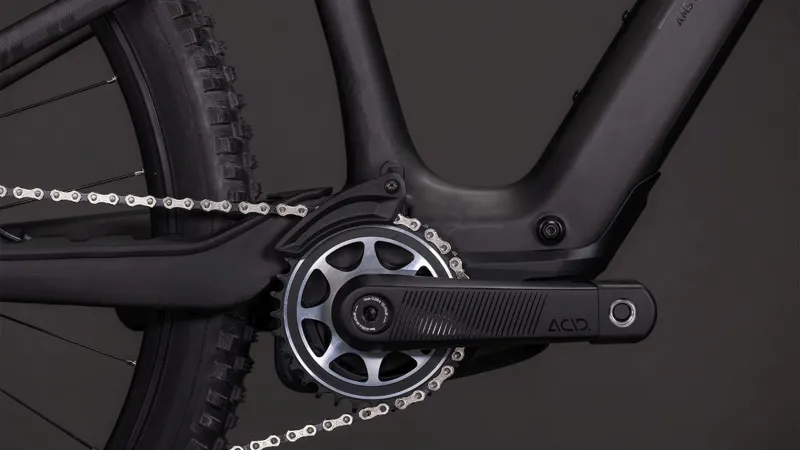

Crankset: Acid MTB Hybrid Carbon, 32T
Cassette: Shimano Deore CS-M6100, 10-51T
Chain: KMC e12
Cockpit
Headset: Acros AZF-675, ICR, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
Handlebar: Newmen Evolution SL 318.25, 780mm
Stem: Cube Stereo Stem with Cable Routing
Grips: Acid Disrupt, Soft Compound
Wheels & Tyres
Wheels: Newmen Performance 30 base/base, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Front Tyre: Schwalbe Nobby Nic, Addix Performance, Kevlar, 2.4"
Other Parts
Saddle: Acid Venec EMTB Trail 140
Seatpost: Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Seatpost Clamp: Cube Seatpost clamp
Pedals: Acid PP MTB
