Please note – spec applies to all sizes unless listed separately
Frameset
Frame: Alpha Gold Aluminium, internal cable routing, internal battery, rack and mudguard mounts, kickstand mount
Fork: Verve+ LT alloy, threadless steel steerer, ThruSkew QR
Wheels
Hub front: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Skewer front: 132x5 mm QR, ThruSkew
Hub rear: Hyena hub drive motor, 40 Nm, 250 W
Rim: Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Spokes: 14 g stainless steel, black
Tyre: Bontrager H2 Comp, wire bead, 30 tpi, 27.5x2.00"
Max tyre size: 27.5x2.00"
E-system

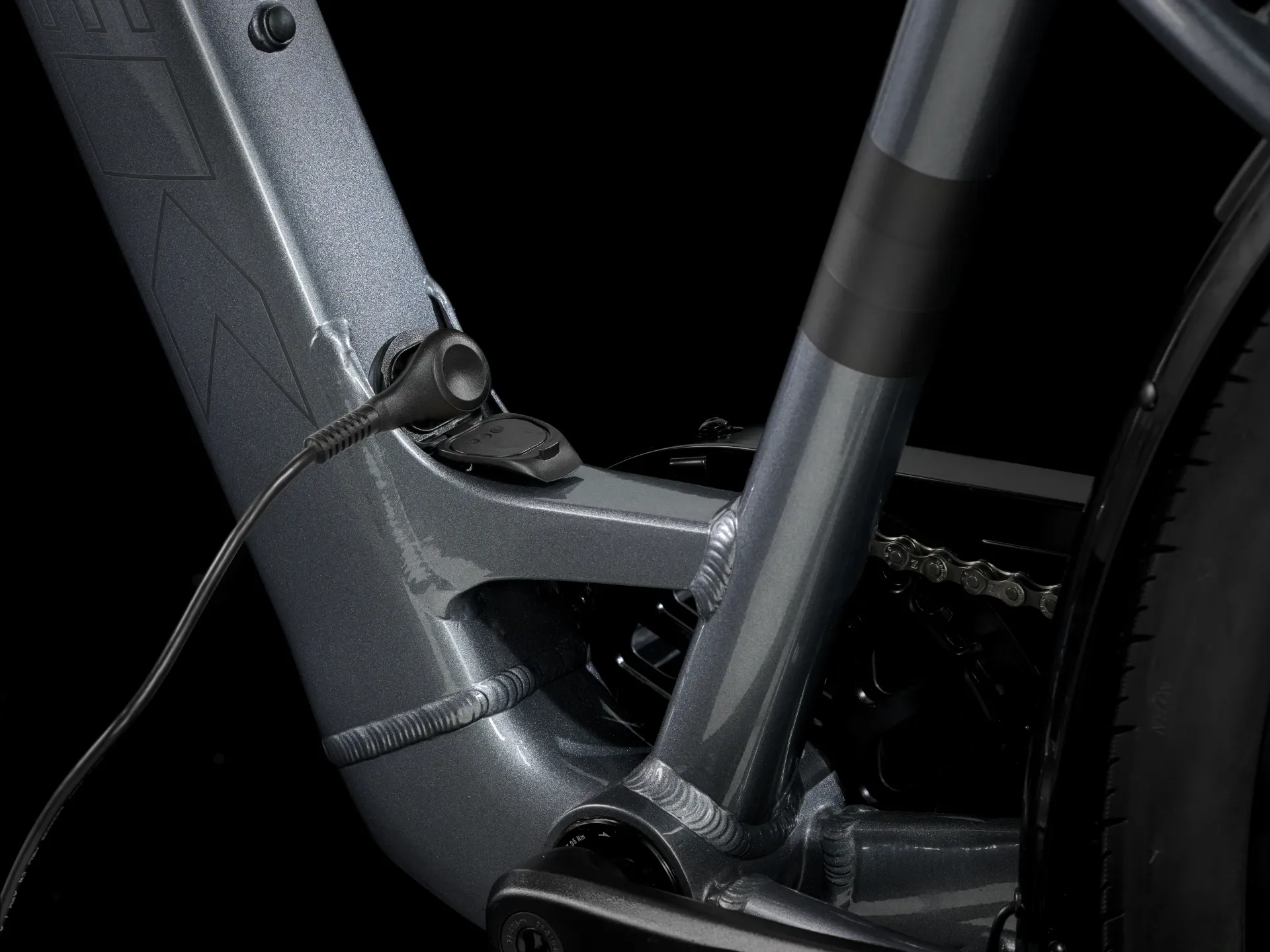

Battery: 250 Wh, integrated in down tube
Charger: 2A, 42V output, 100V–240V AC input
Computer: LED display
Drivetrain
Shifter: Shimano M315, 8-speed

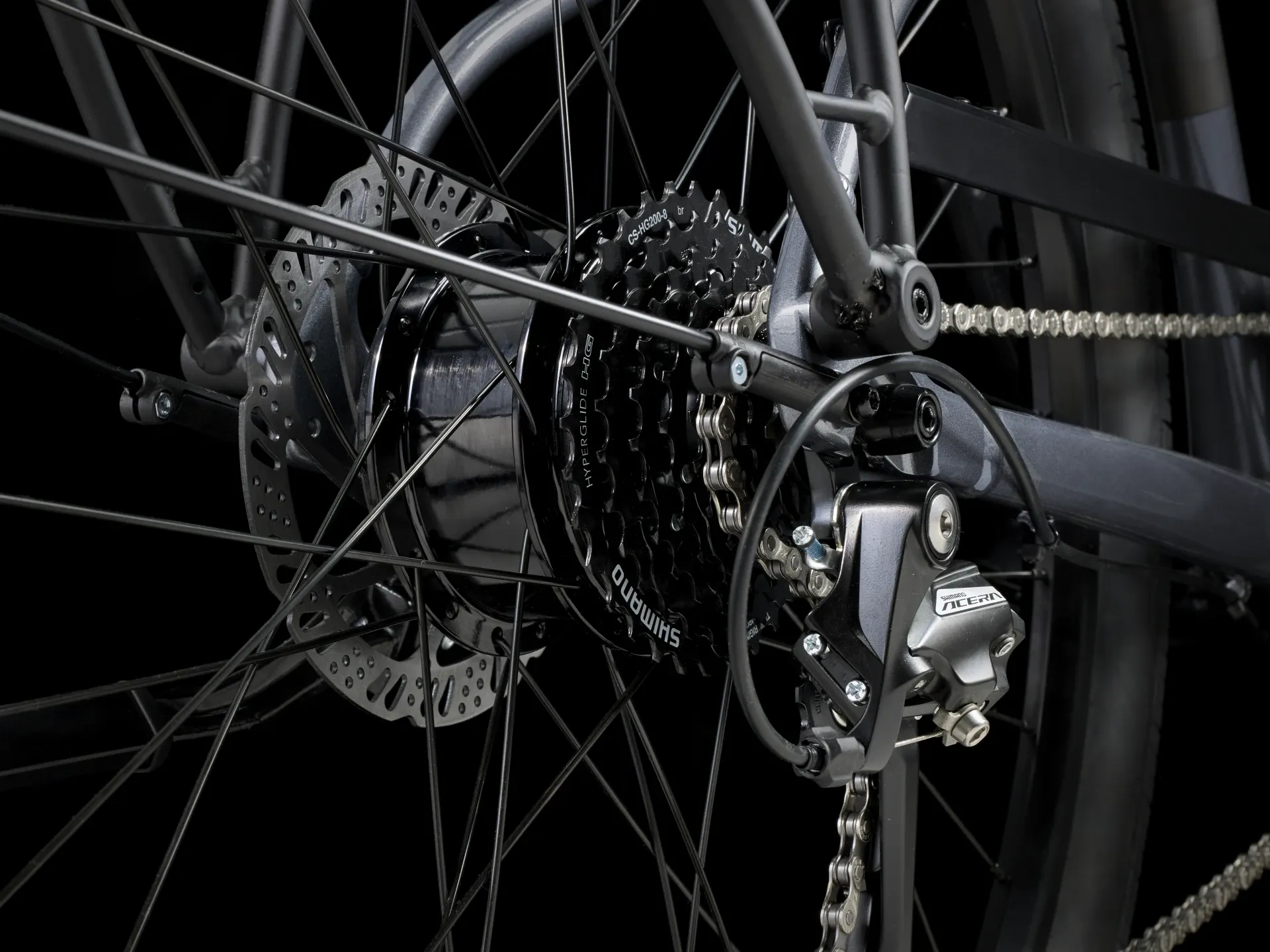

Rear derailleur: Shimano Acera M3020-8, 40T max cog

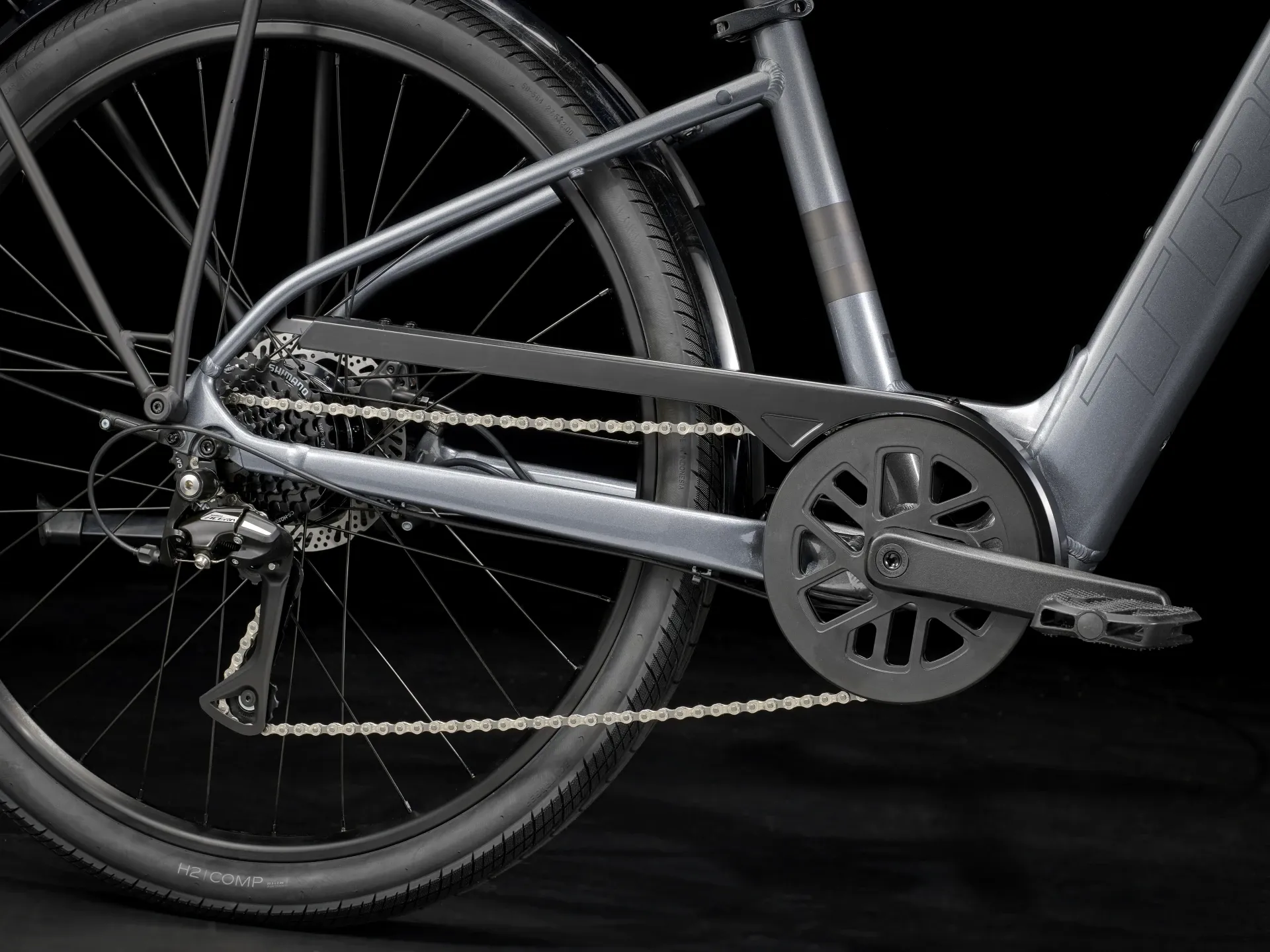

Crank: ProWheel Pro alloy, 42T narrow-wide steel ring, 170 mm length
Bottom bracket: Torque sensor, threaded, 122.5 mm spindle
Cassette: Shimano HG400, 11-40, 8-speed
Chain: KMC Z8.3
Pedal: Slip-proof pedals with reflectors
Max. chainring size: 1x: 42T
Components
Saddle: Selle Royal Nuvola
Seatpost: Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length

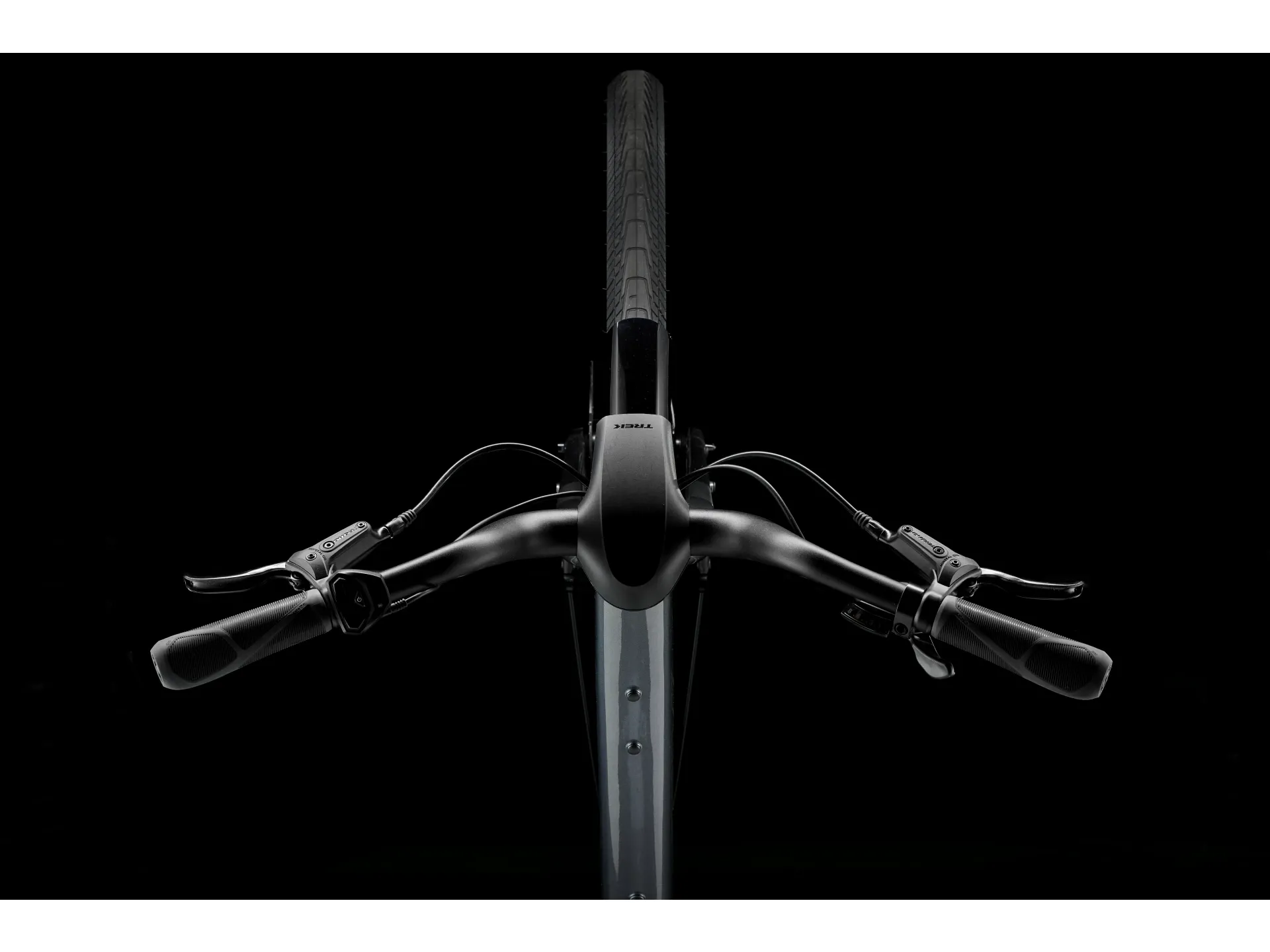

Handlebar: Bar/stem w/ light mount

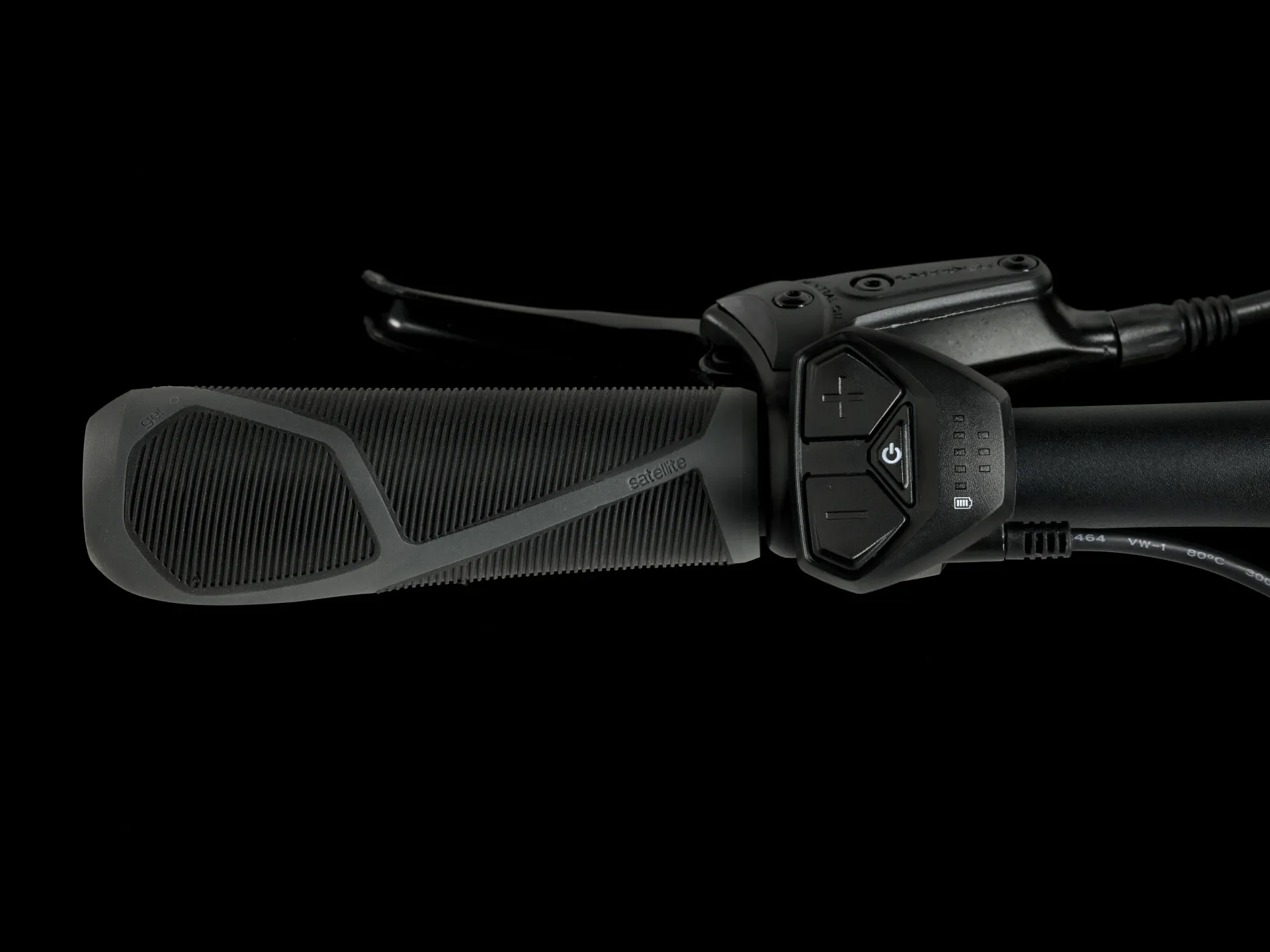

Grips: Bontrager Satellite Elite, alloy lock-on
Stem: Integrated stem, 35 mm clamp

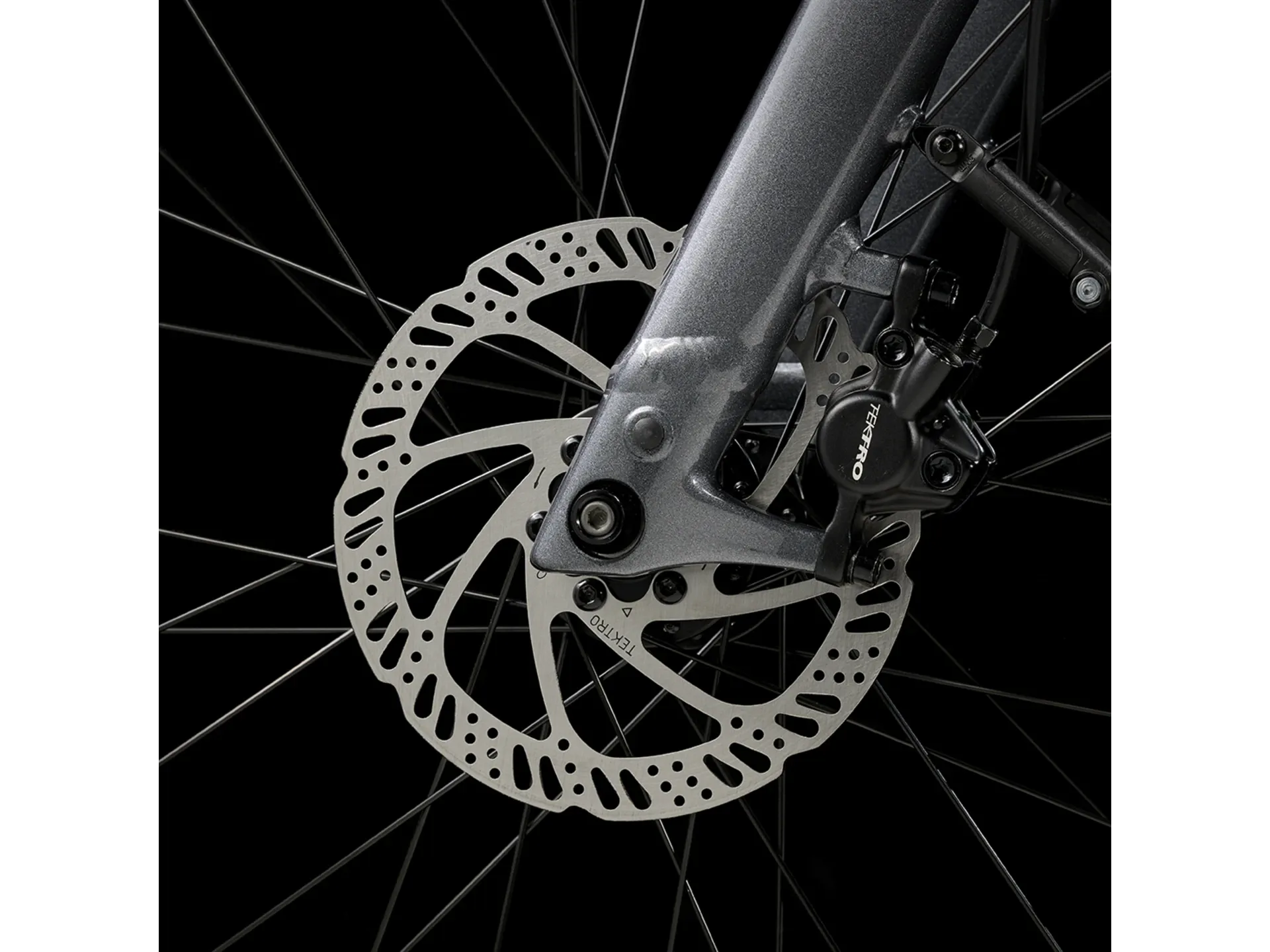

Brake: Tektro HD-M275 hydraulic disc
Brake rotor: Tektro wave, 6-bolt, 160 mm
Brake Set: Tektro HD-M275 hydraulic disc
Accessories
Light:
Size S, M, L: Spanninga SOLO for e-bike, taillight

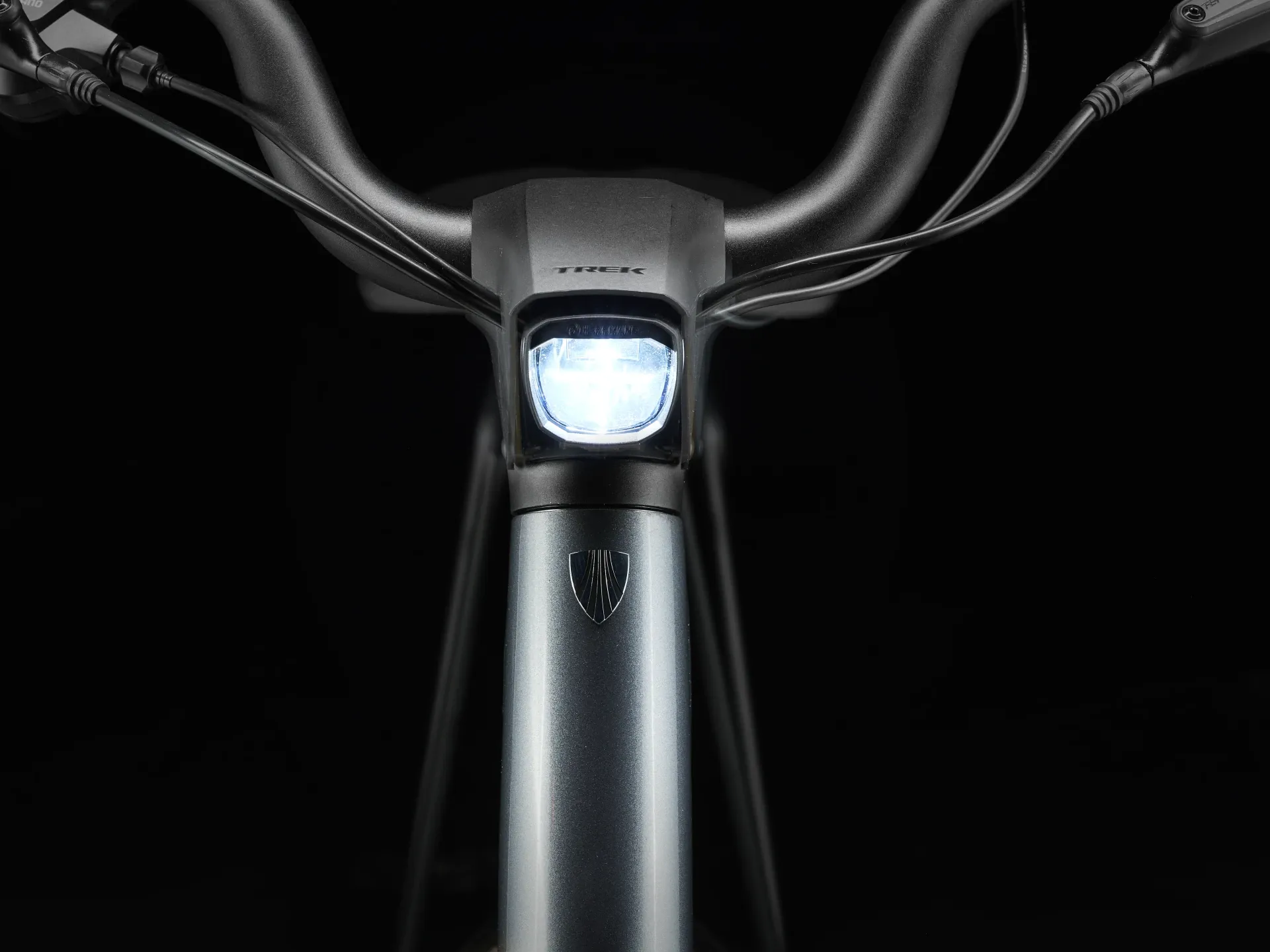

Size S, M, L: Herrmans H-Black MR5-E, 140 Lumen, 40 Lux, LED, headlight
Kickstand: Pletscher Comp 18

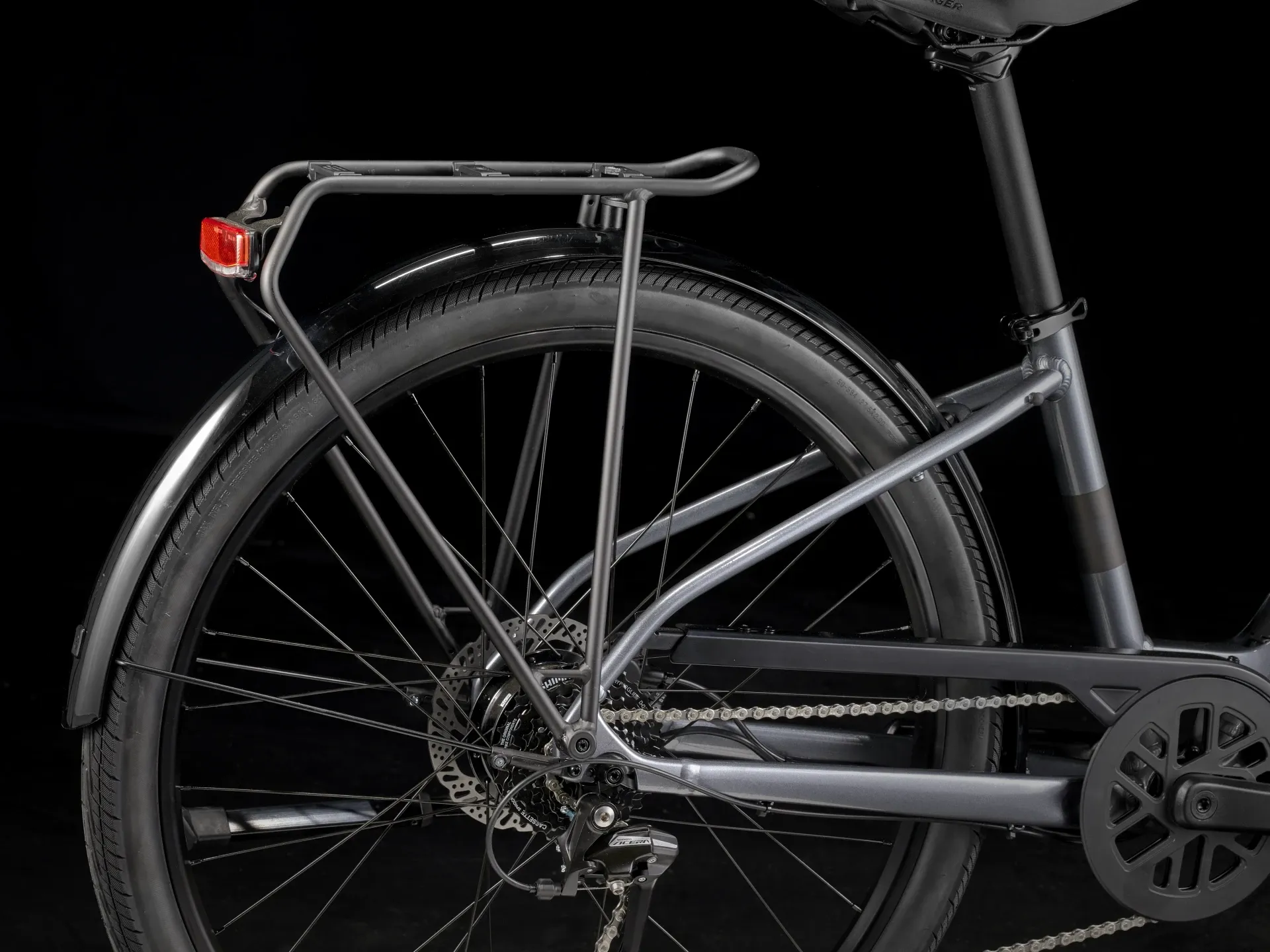

Cargo rack: MIK-compatible alloy rear rack, maximum load 25 kg
Mudguard:
Size S, M, L: SKS wide, front
Size S, M, L: SKS plastic, rear
Weight
Weight: M - 19.80 kg / 43.66 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)
