Frame
Size: S, M, L

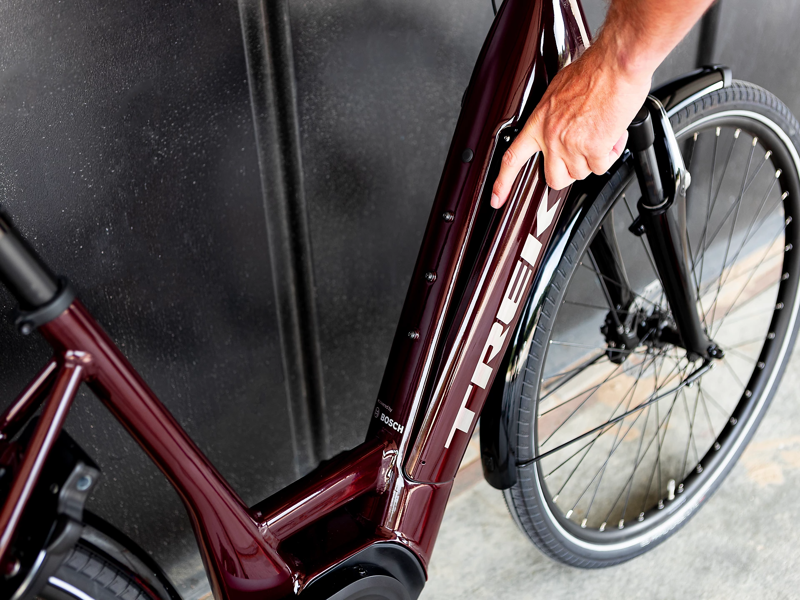

Alpha Platinum Aluminium, Removable Integrated Battery (RIB), smooth welds, rack & mudguard mounts, internal routing, kickstand mount, 135x5mm QR
Size:S, M, L, XL
Alpha Smooth Aluminium, with Removable Integrated Battery (RIB)

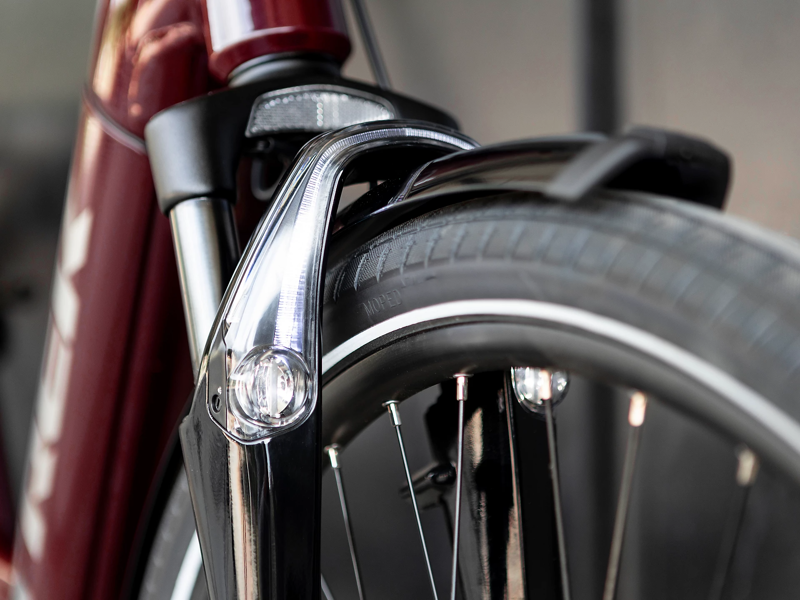

Fork
Forklight 3.0 with integrated 50LUX lighting, 40 mm travel
Hub front
Shimano TX505, CenterLock
Hub rear
Shimano
Rim
Alex Rims DP23, alloy, 36-hole, Presta valve
Spokes
14 g stainless steel, black
Tyre
Bontrager E6 Hard-Case Lite, reflective, wire bead, 60 tpi, 700x50c
Max tyre size
700x50c with or without fenders
Shifter
Shimano Alivio M3100, 9-speed
Rear derailleur

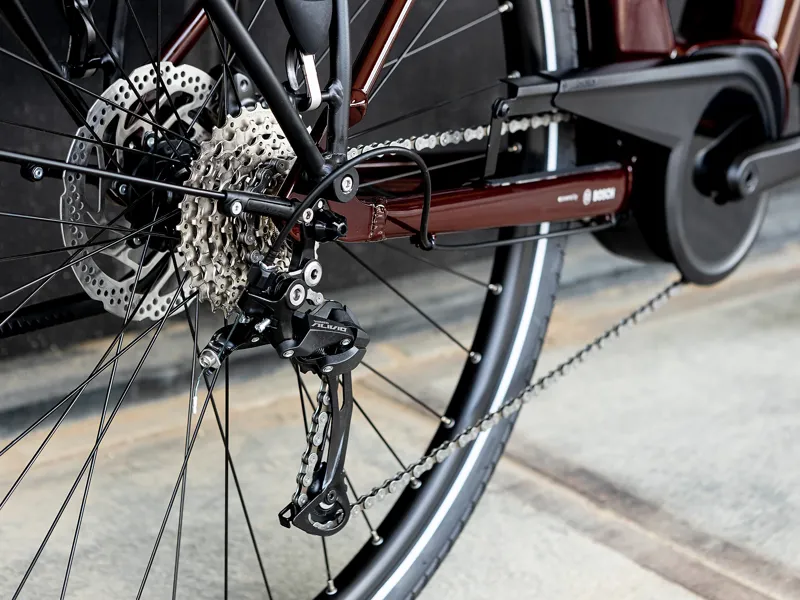

Shimano Alivio M3100, long cage
Crank
ProWheel alloy, 170 mm
Chainring
ProWheel 38T narrow/wide steel, w/alloy guard
Cassette
Shimano Sora HG400, 11-32, 9-speed
Chain
KMC E9S, 9-speed
Pedal
Size: S, M, L, XL
Bontrager City pedals
Size:S, M, L, XL
Wellgo C157, boron axle, plastic body
Saddle
Bontrager Boulevard
Seatpost
Alloy, suspension, 31.6 mm, 300 mm length
Handlebar
Size: S, M, L, XL
Bontrager aluminium touring, 31.8 mm clamp, 25 mm rise, 630 mm width
Size:S, M, L, XL
Bontrager aluminium touring
Grips

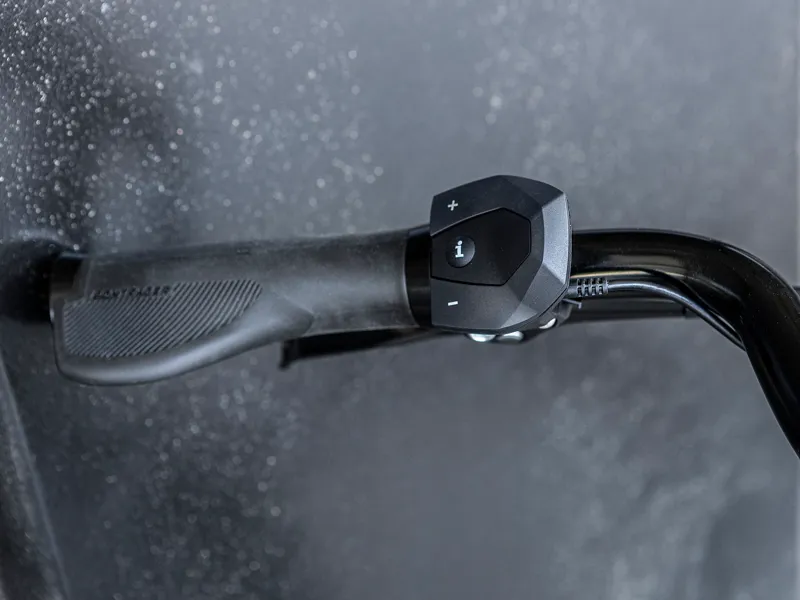

Bontrager Satellite Elite, alloy lock-on
Stem
Size: S, M
Bontrager alloy quill, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length
Size:L, XL
Bontrager alloy quill, 31.8 mm clamp, adjustable rise, Blendr-compatible, 105 mm length
Head set
VP sealed cartridge, 1-1/8", threaded
Brake

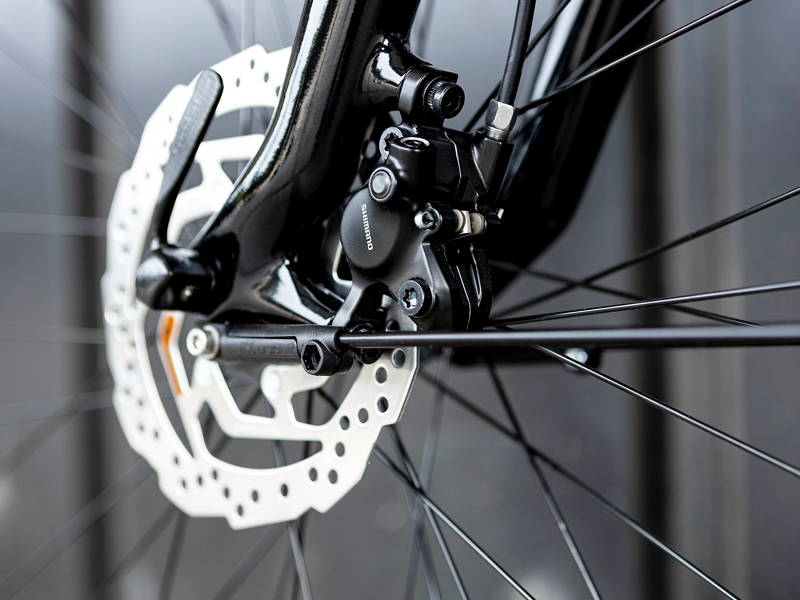

Shimano MT200 hydraulic disc
Brake rotor
Size: S, M, L, XL
Shimano EM300, CenterLock, 160 mm
Size:S, M, L, XL
Shimano RT10, CenterLock, 160 mm
Brake Set
Size: S, M, L, XL
Tektro HD-M275 hydraulic disc, 160 m rotor
Size:S, M, L, XL
Tektro HD-M275 hydraulic disc, 160 mm rotor
Battery
Bosch PowerTube, vertical, 500 wh
Charger
Bosch standard 4A, 220-240 V

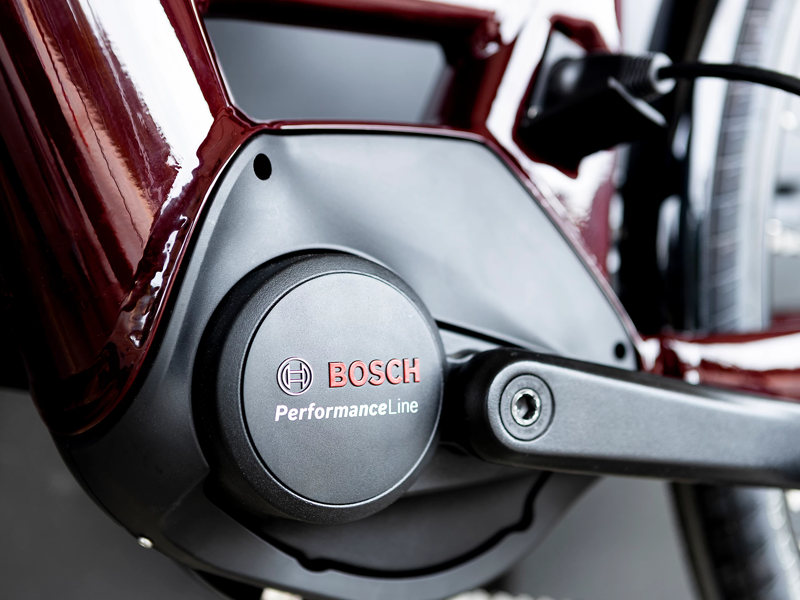

Motor
Bosch Performance Line Cruise, 250 watt, 65 Nm, 20 mph (25 km/h in Europe)
Light
Size: S, M, L, XL
Spanninga SOLO for e-bike
Size:S, M, L, XL
Forklight 3.0 with integrated 50LUX lighting
Computer

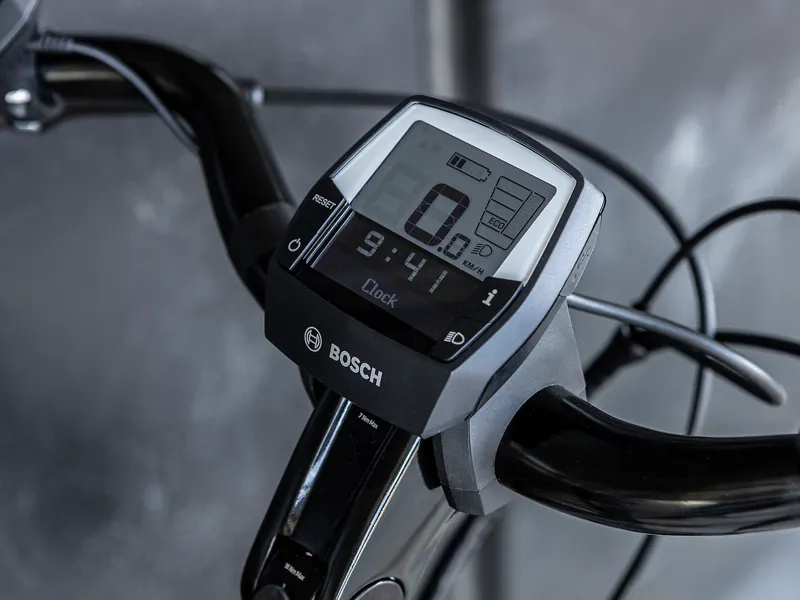

Bosch Intuvia
Kickstand

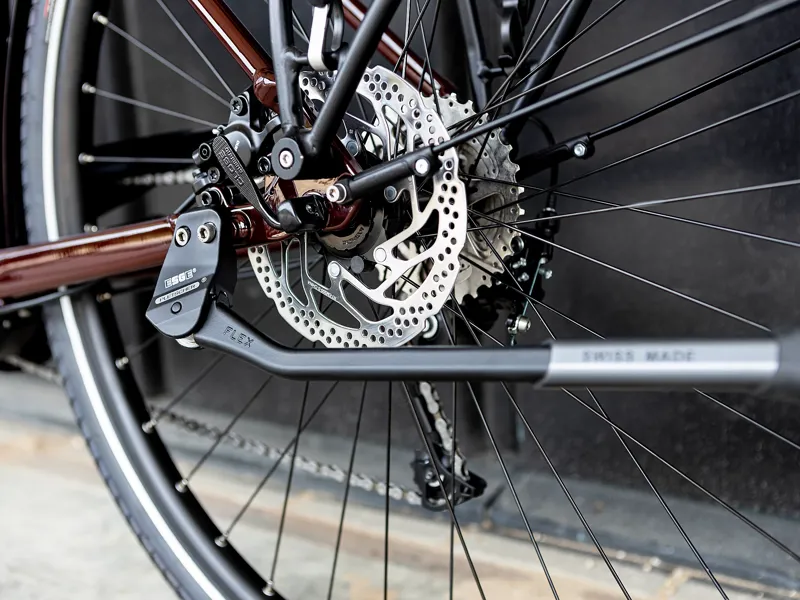

Pletscher Comp Flex 18

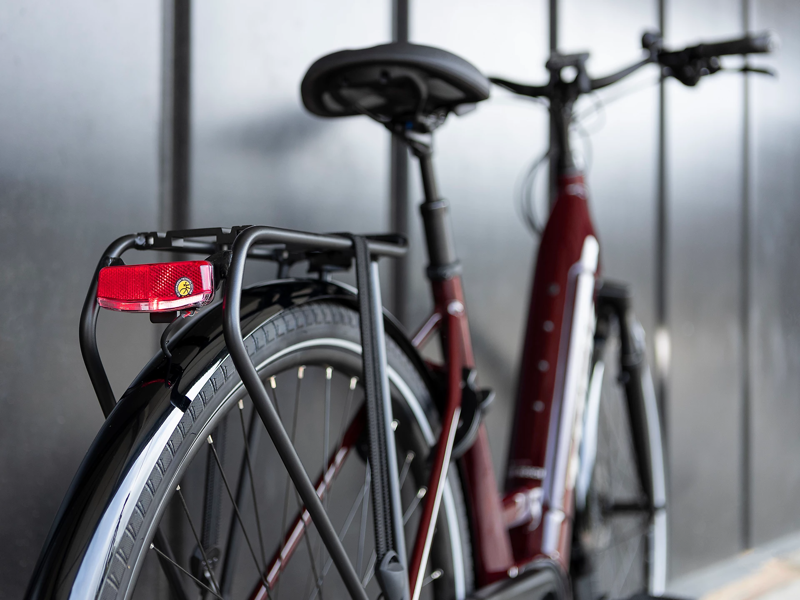

Cargo rack
Alloy rear rack
Mudguard
Size: S, M
SKS wide
Size:S, M, L, XL
SKS Wide
Weight
M - 23.80 kg / 52.48 lbs (excluding battery)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
