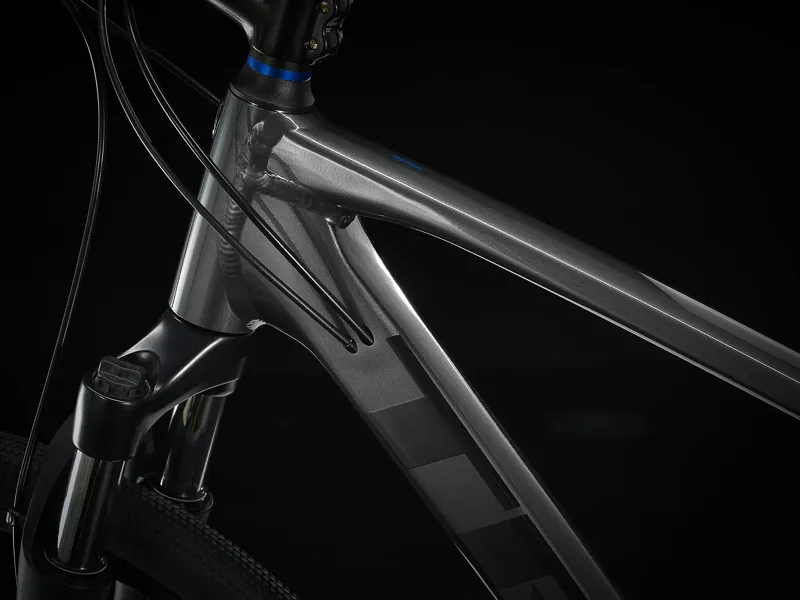

Frame
Alpha Gold Aluminium, DuoTrap S-compatible, internal cable routing, rack and mudguard mounts, post-mount disc, kickstand mount, 135x5 mm QRFork

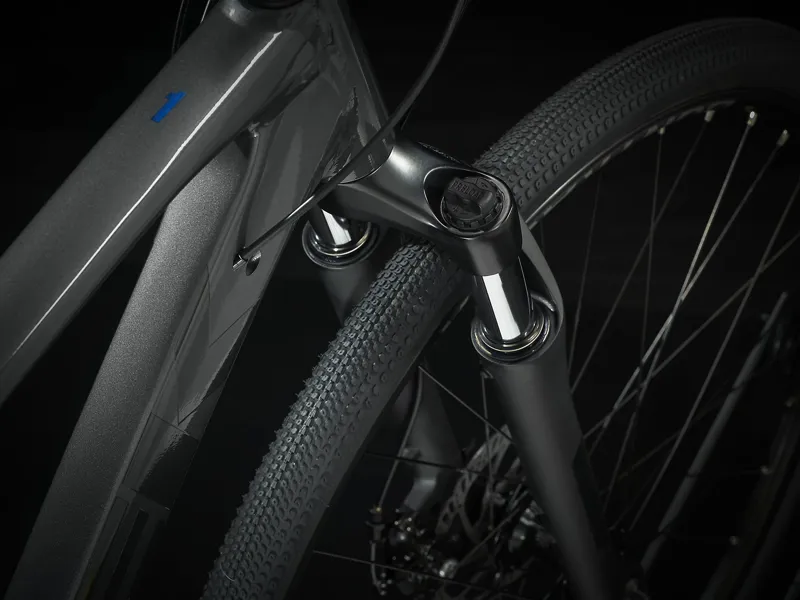

SR Suntour NEX, coil spring, preload, 100x5 mm QR, 63 mm travel
Hub front
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Hub rear
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear
152x5mm QR
Rim
Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve
Tyre
Bontrager GR1 Comp, wire bead, 60 tpi, 700x40 c
Max tyre size
Frame: 700x45c with fenders, 29x2.10" without fenders Fork: See manufacturer
Shifter
Shimano EF500, 8-speed
Front derailleur
Shimano Tourney TY710, 34.9 mm clamp, top swing, dual pull

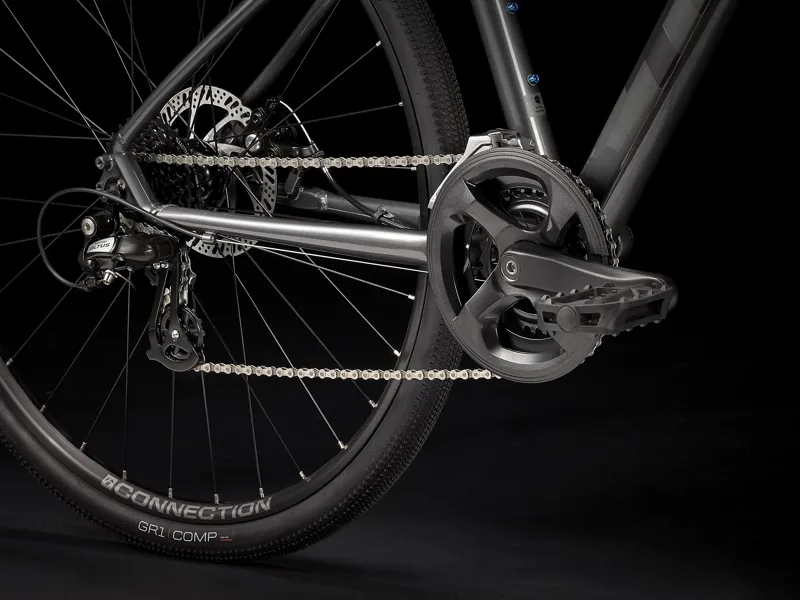

Rear derailleur
Shimano Altus M310
Crank
Forged alloy, 46/30, chainguard, 170 mm length
Bottom bracket
Sealed cartridge, 68 mm
Cassette
Shimano HG31, 11-32, 8 speed
Chain
KMC Z8.3
Pedal
Wellgo nylon platform
Saddle
Bontrager Sport
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Handlebar
Size: S, M
Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width
Size:L, XL
Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620 mm width
Grips
Bontrager Satellite
Stem
Size: S, M
Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length
Size:L, XL
Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length
Head set
1-1/8" threadless, sealed cartridge bearings

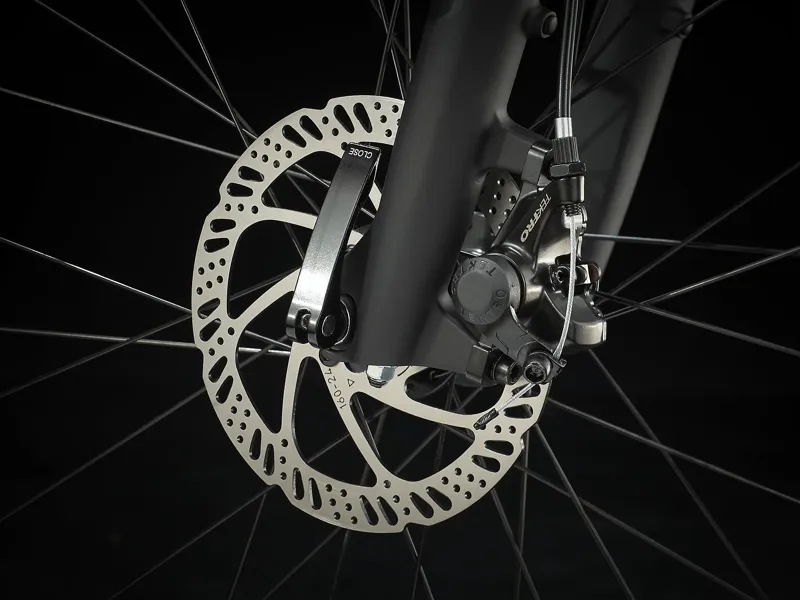

Brake
Tektro MD-M280 mechanical disc, 160 mm rotor
Weight
M - 13.54 kg / 29.86 lb
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
