*Please note – spec applies to all sizes unless listed separately
Frameset
Frame: Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR

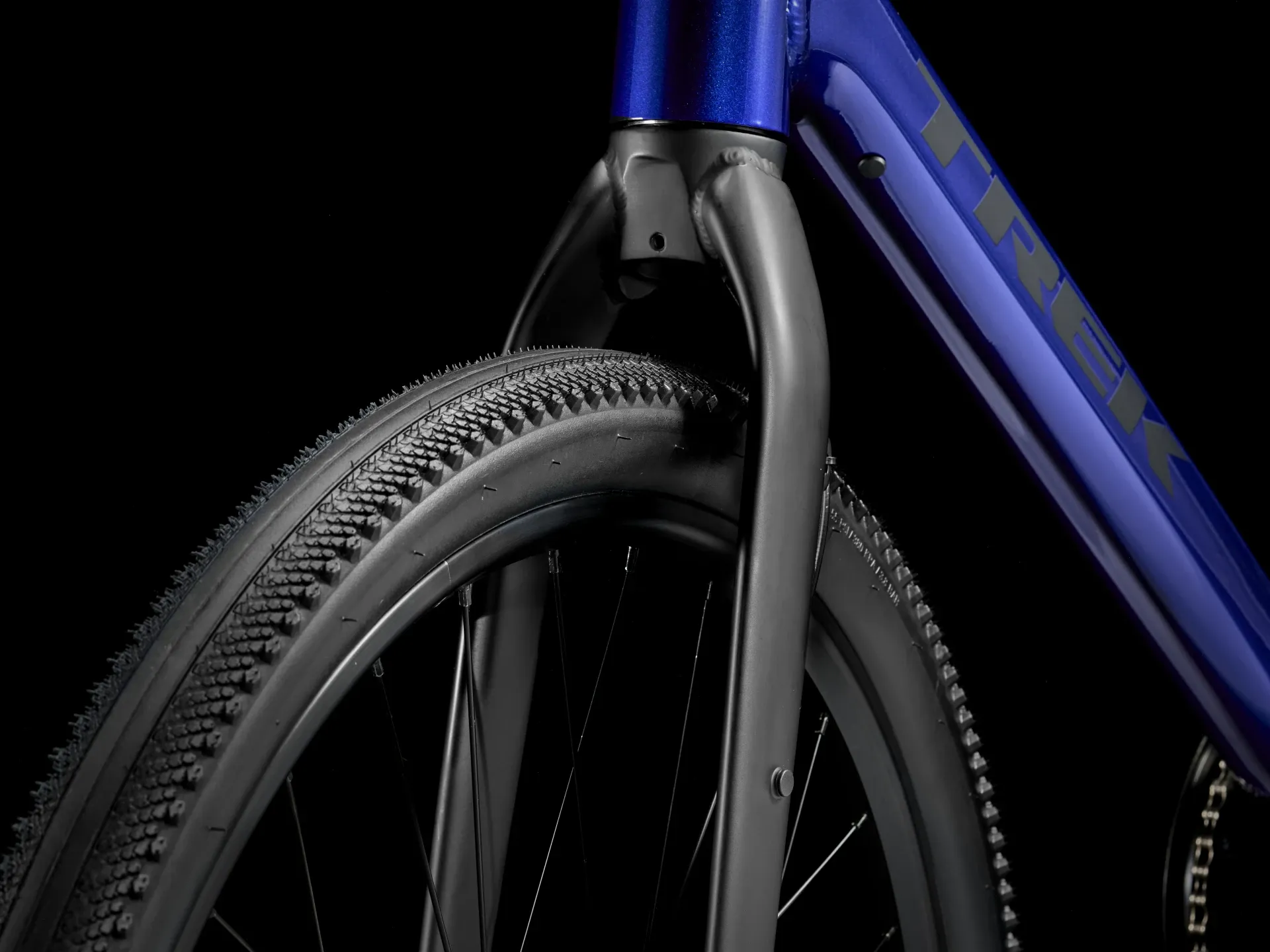

Fork: Dual Sport steel, internal brake routing, mudguard mounts, rack mounts, ThruSkew 5 mm QR
Wheels
Hub front: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Skewer front: 139x5 mm bolt-on
Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear: 152x5 mm QR
Rim: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Spokes: 14 g stainless steel, black
Tyre: Bontrager GR0 Comp, wire bead, 60 tpi, 650x50 mm
Max tyre size: 27.5x2.00"

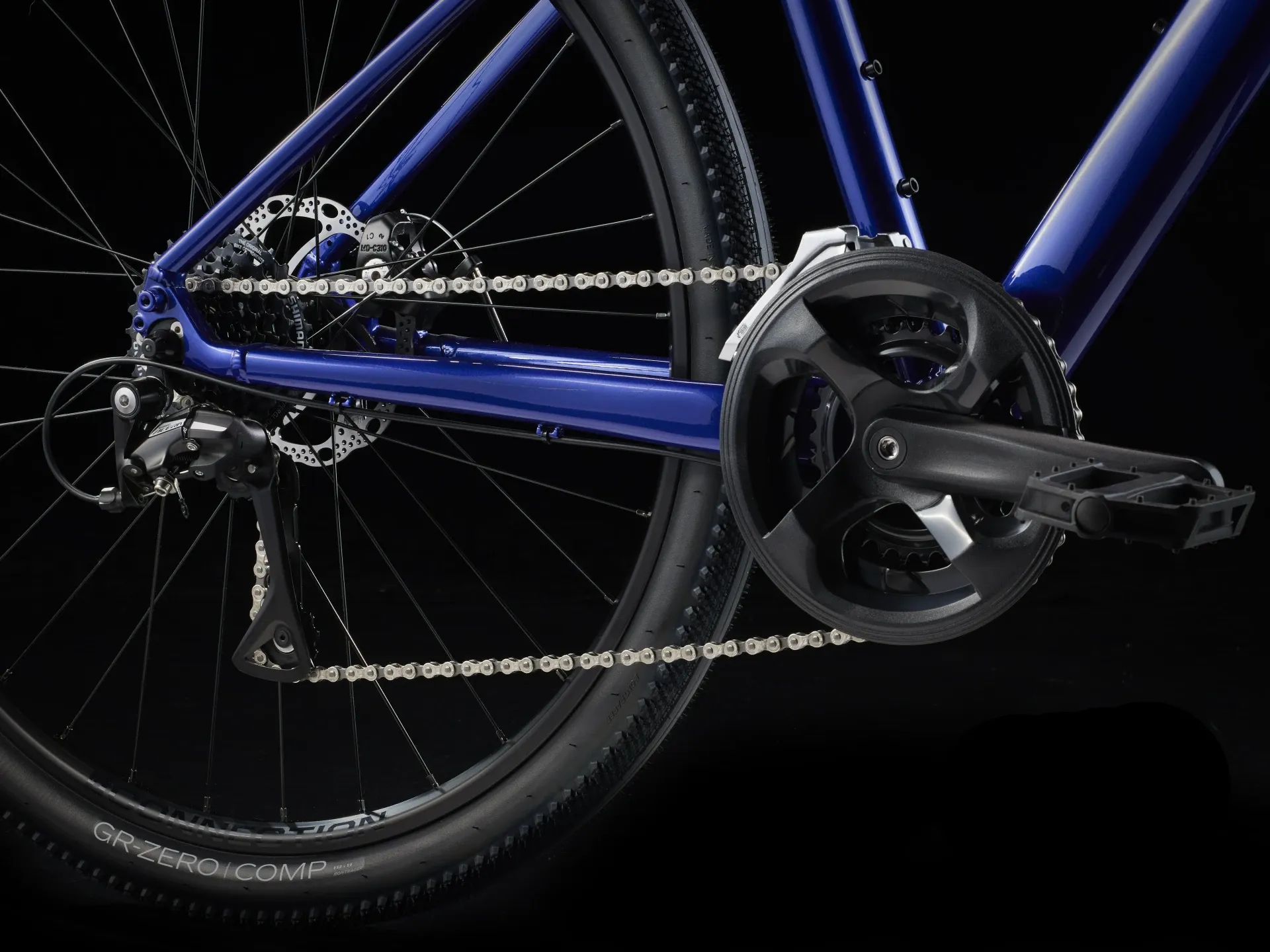

Drivetrain
*Shifter:
Size: XS, S, M, L, XL – Shimano EF500, 2-speed
Size: XS, S, M, L, XL – Shimano EF500, 8-speed
Front derailleur: Shimano Tourney TY606, 31.8/34.9 mm clamp, top swing, dual pull
Rear derailleur: Shimano Acera M3020-8, 40T max cog
Crank: Forged alloy, 46/30, chainguard, 170 mm length
Bottom bracket: Sealed cartridge, 68 mm
Cassette: Shimano 8-speed, 12-32T
Chain: KMC Z8.3
Pedal: Wellgo nylon platform
Max. chainring size: 1x: 42T, 2x/3x: 48T
Components

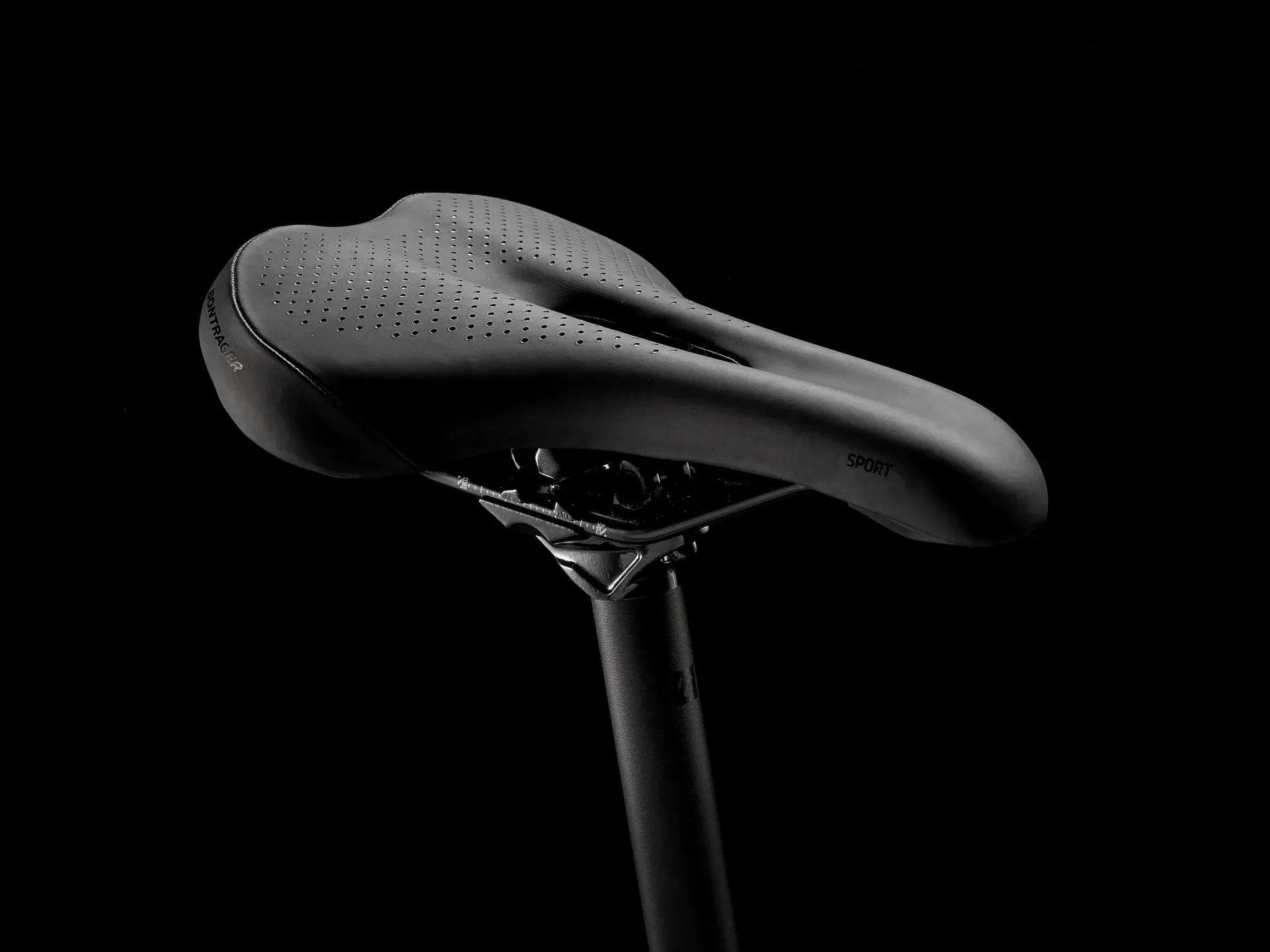

Saddle: Bontrager Sport
Seatpost: Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

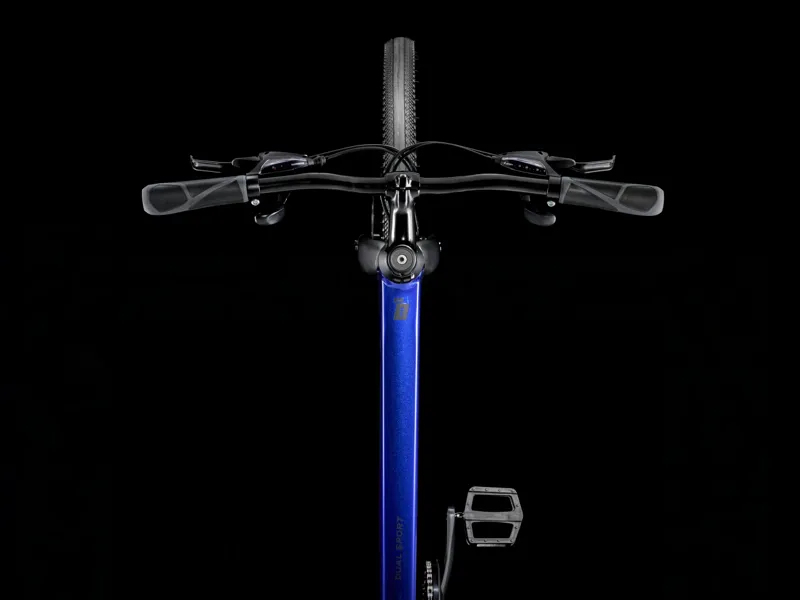

*Handlebar:

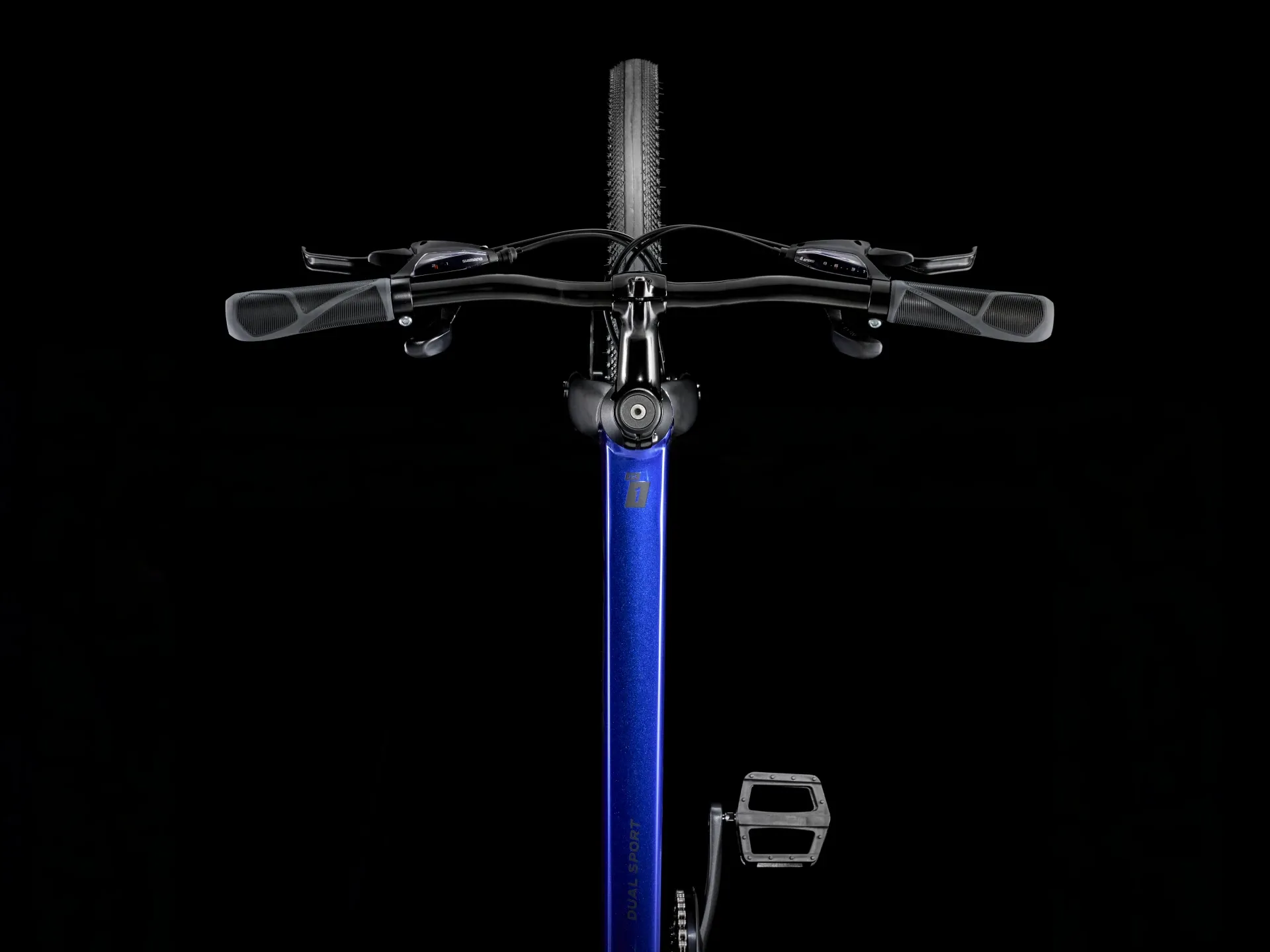

Size: XS, S, M – Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width
Size: L, XL – Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620 mm width

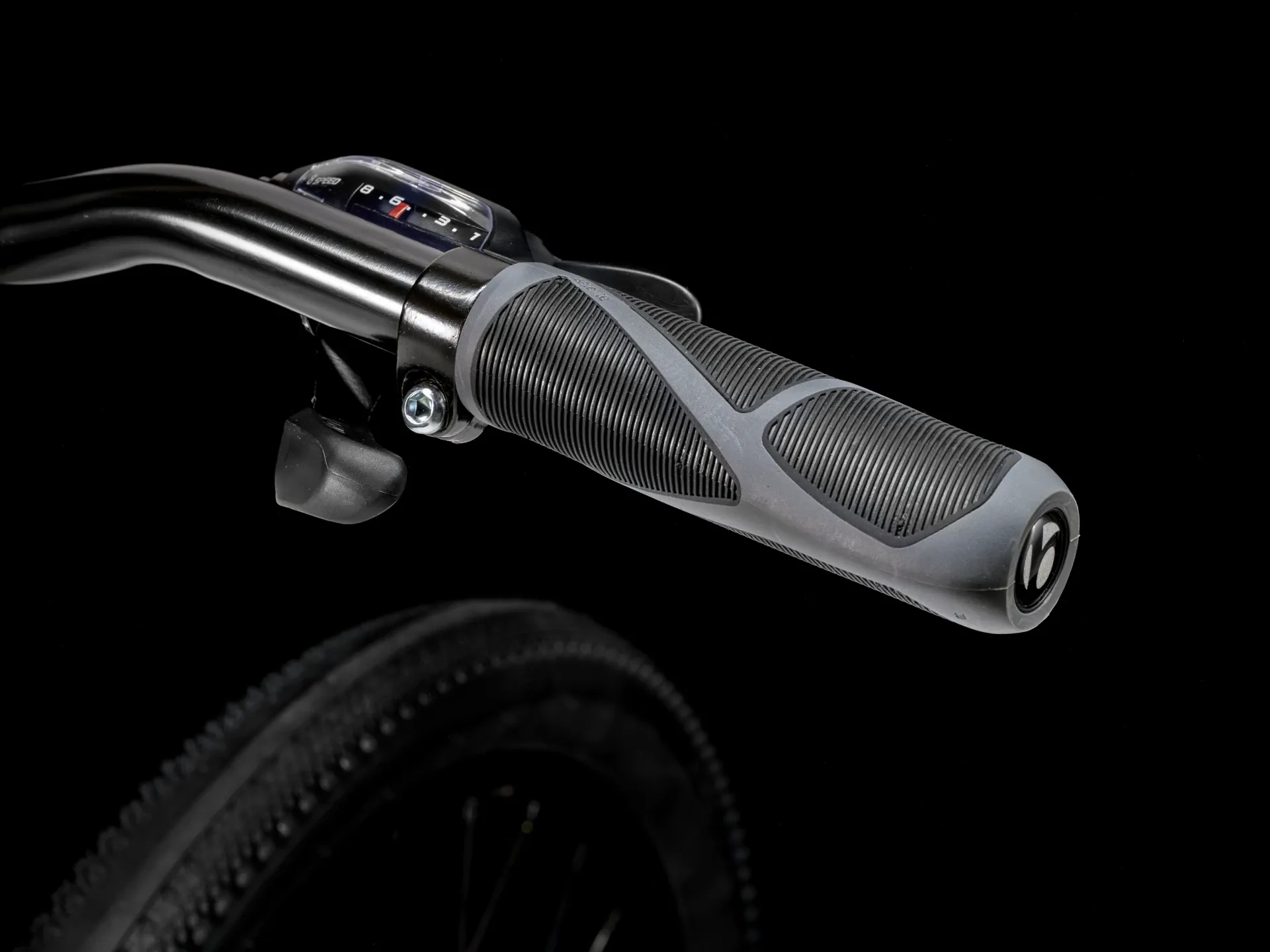

Grips: Bontrager Satellite

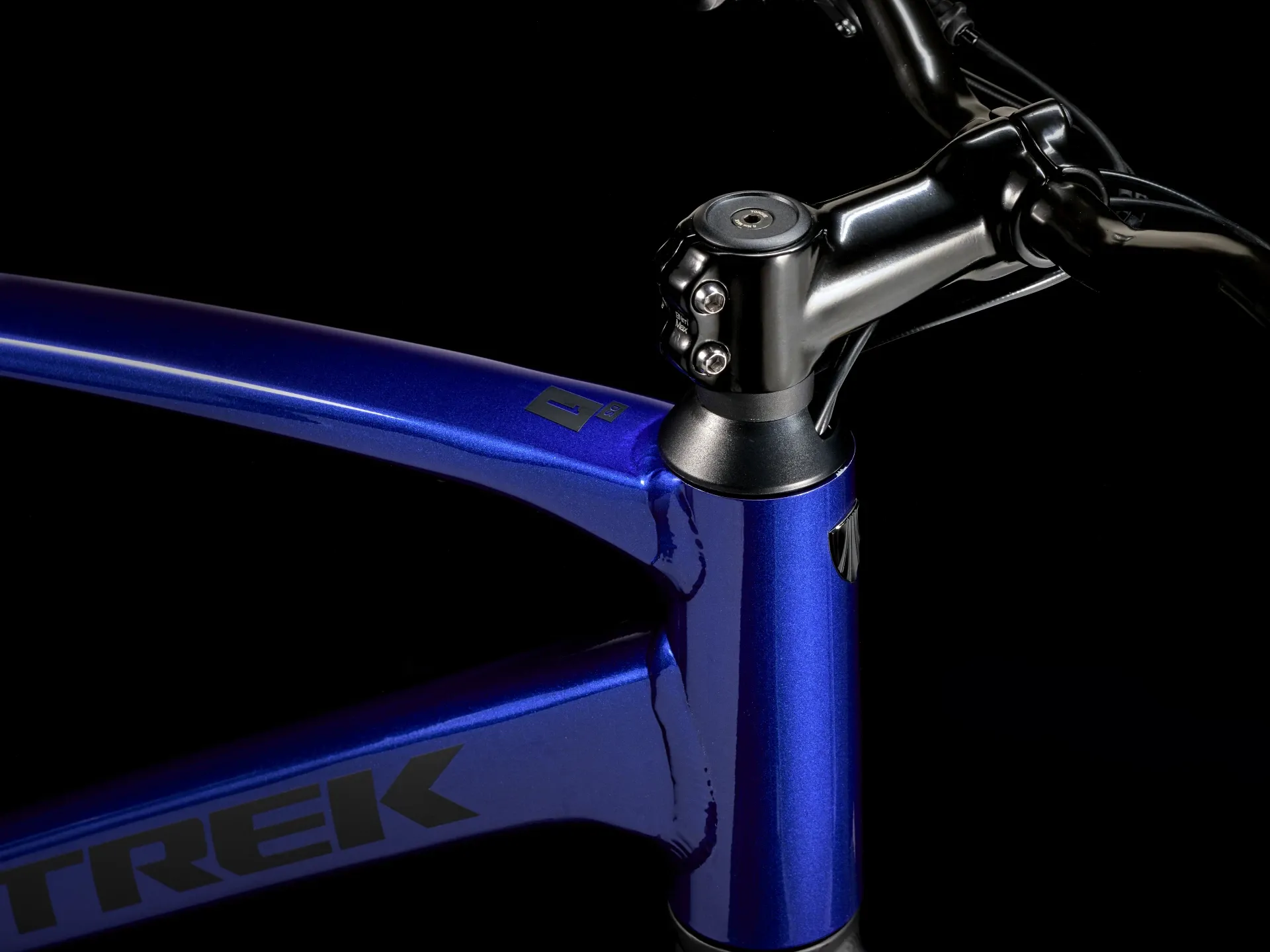

*Stem:
Size: XS, S, M – Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length
Size: L, XL – Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length
Brakes

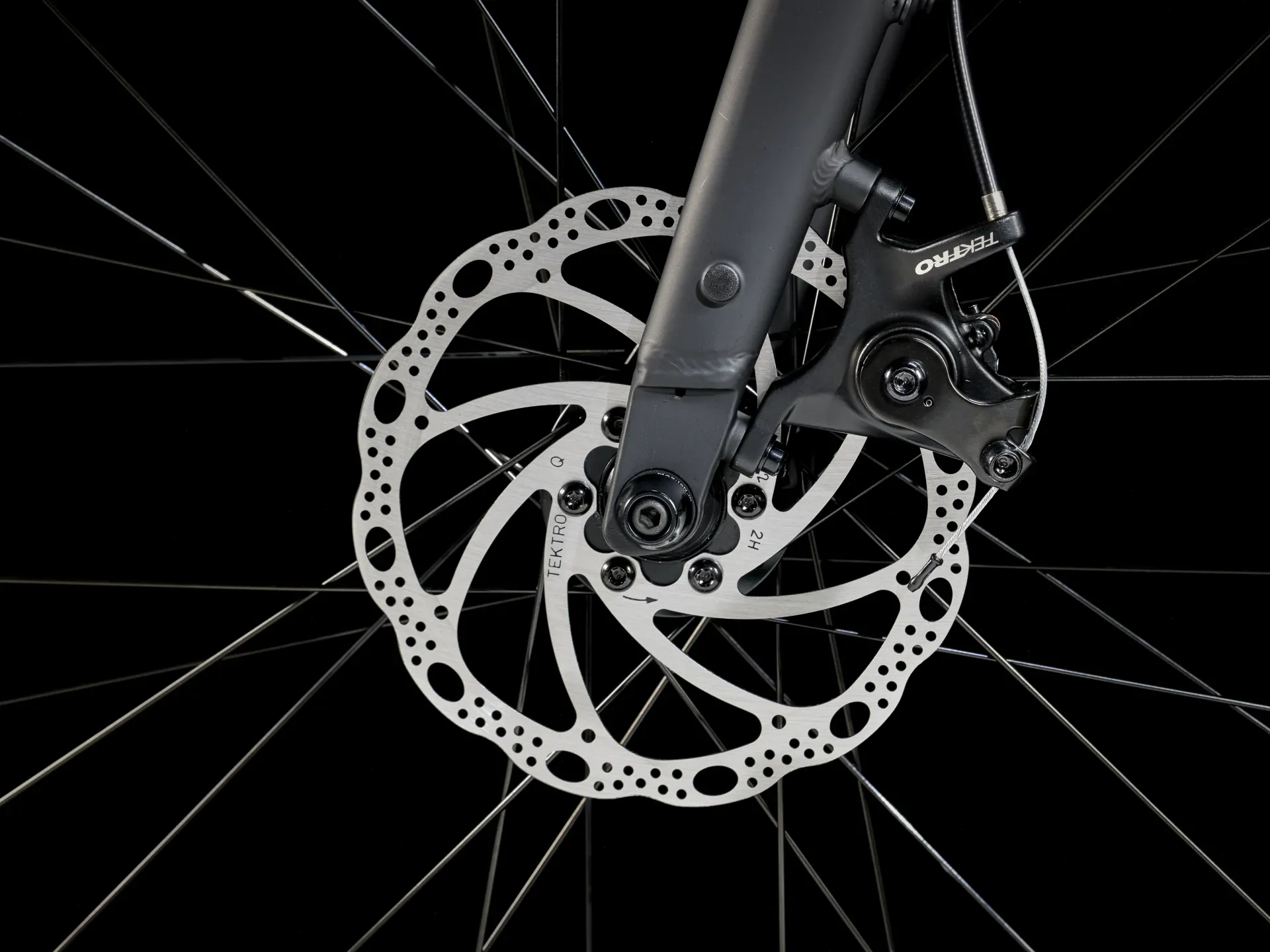

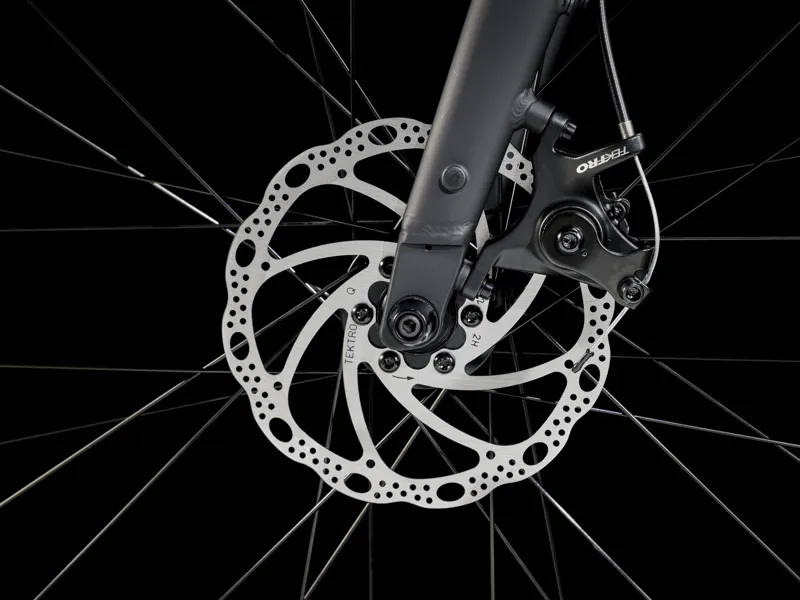

Brake: Tektro MD-U310 mechanical disc
Brake rotor: Tektro wave, 6-bolt, 160 mm
Rotor size: Max brake rotor sizes: 160 mm front and rear
Weight
Weight: M – 14.05 kg / 30.98 lb
Weight limit: 136 kg (300 lb)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
