*Please note – spec applies to all sizes unless listed separately
Frameset
Frame: 400 series OCLV Carbon, internal routing, 3s chain keeper, DuoTrap S compatible, mudguard mounts, flat mount disc, 135x5mm ThruSkew
Fork: Carbon, hidden mudguard mounts, flat mount disc, 100x5mm thru-skew
Weight
Weight: M – 10.50 kg / 23.15 lb
Weight limit: 136 kg (300 lb)

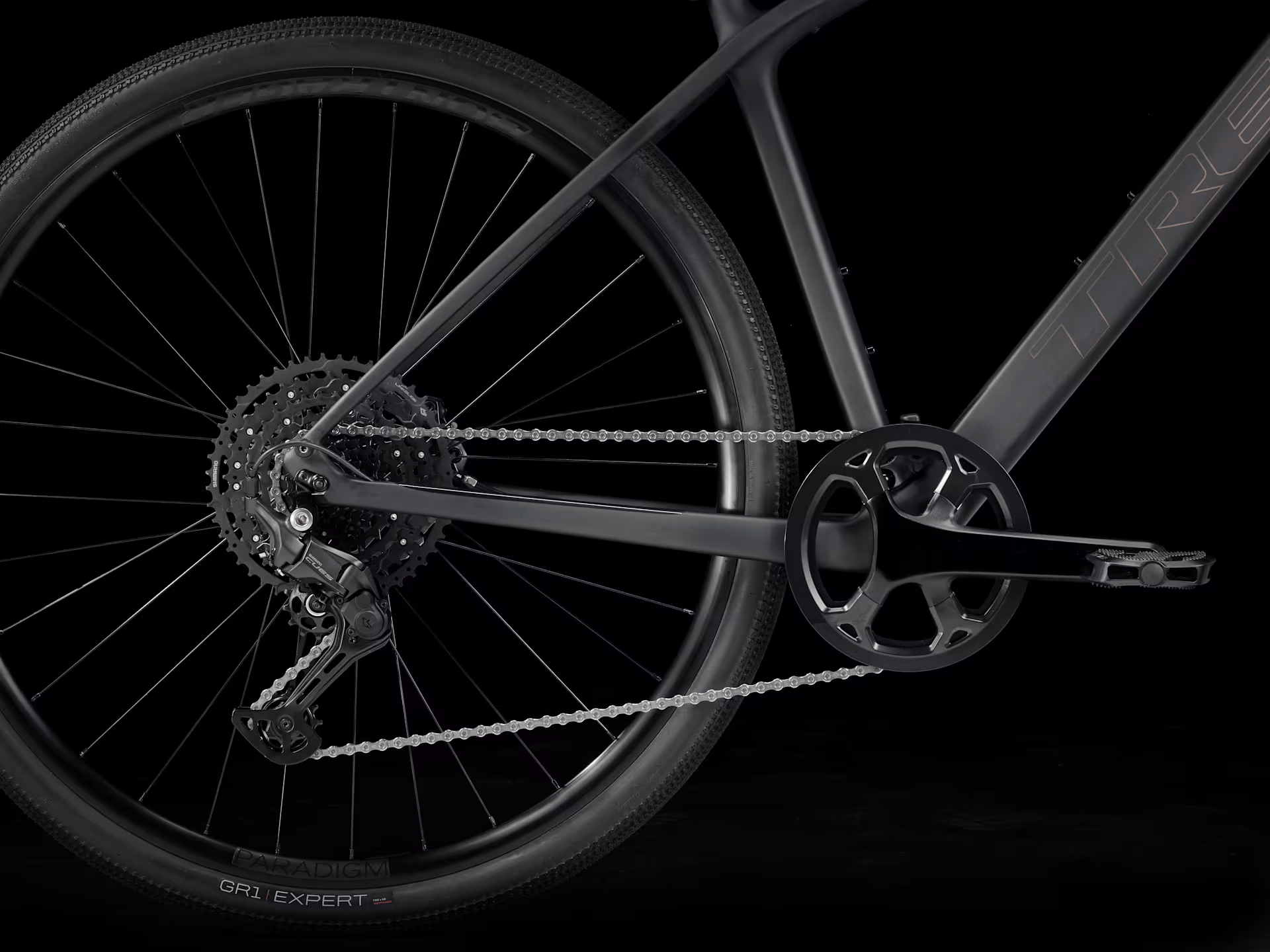

Drivetrain
Shifter: Shimano CUES U6000 w/optical gear display, 10-speed
Rear derailleur: Shimano CUES U6000 GS
Crank arm: Prowheel alloy, 42T narrow-wide ring, 175 mm length
Cassette: Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
Chain: Shimano LG500, 9/10/11-speed
Pedal: Bontrager City pedals
Max. chainring size: 1x: 44T
Wheels
Hub front: Formula CL-51 alloy, 100x5 mm QR
Skewer front: 135x5 mm bolt-on
Hub rear: Formula CL-52 alloy, 135x5 mm QR
Skewer rear: 169x5 mm bolt-on
Rim: Bontrager Paradigm, Tubeless Ready, 32-hole, 21 mm width, Presta valve
Tyre: Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40 mm
Max tyre size: 42 mm without mudguards, 40 mm with mudguards
Components
Saddle: Bontrager H1
Seatpost: Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

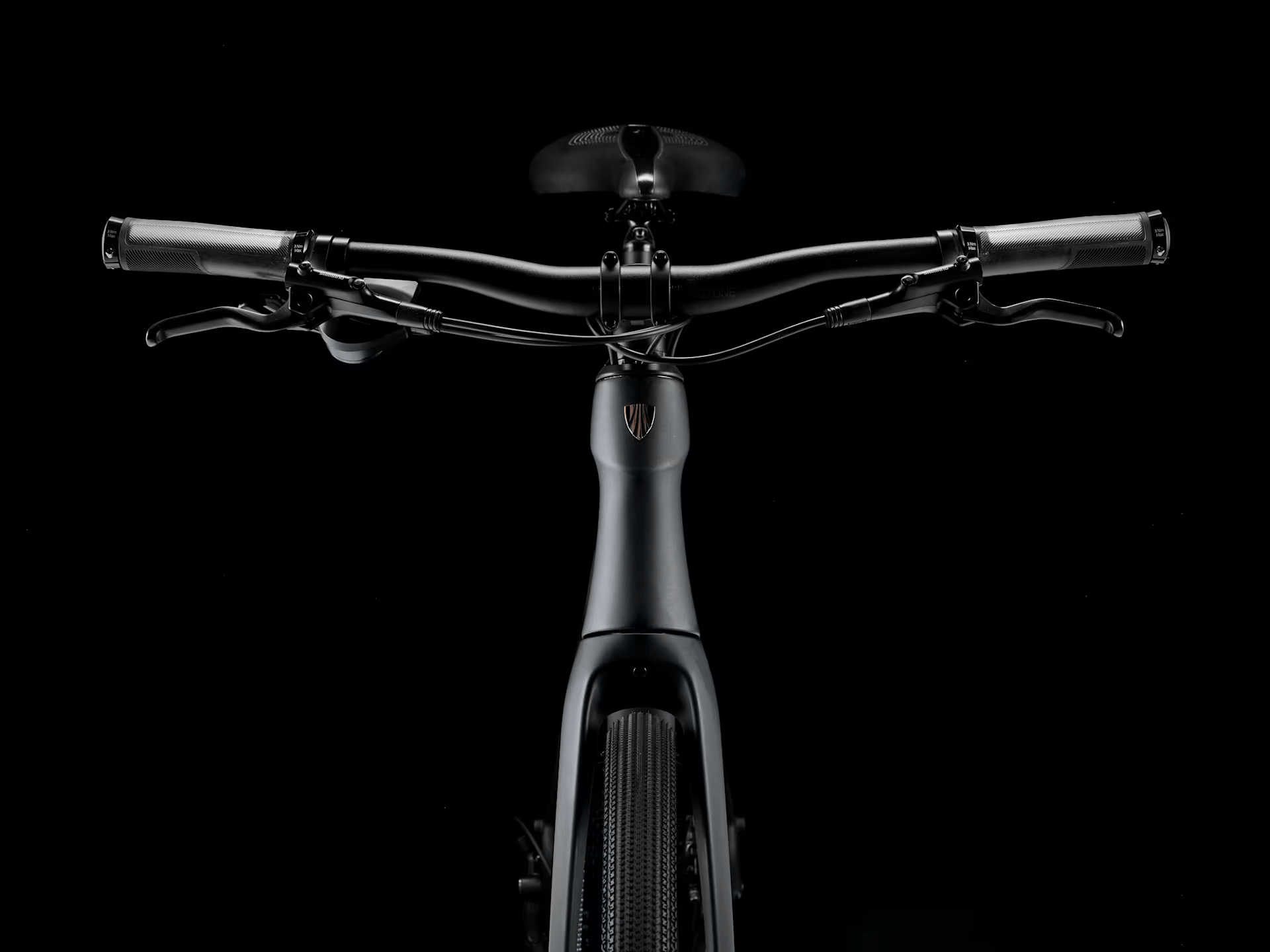

Handlebar:
Size: XS, S – Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 600 mm width
Size: M, L, XL – Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 660 mm width
Grips: Bontrager Satellite IsoZone Plus, lock-on, ergonomic
Brakes
Brake: Shimano hydraulic disc, MT201 lever, UR300 calliper
Brake rotor: Shimano RT10, CenterLock, 160 mm
Rotor size: Max brake rotor sizes: 160 mm front and rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
