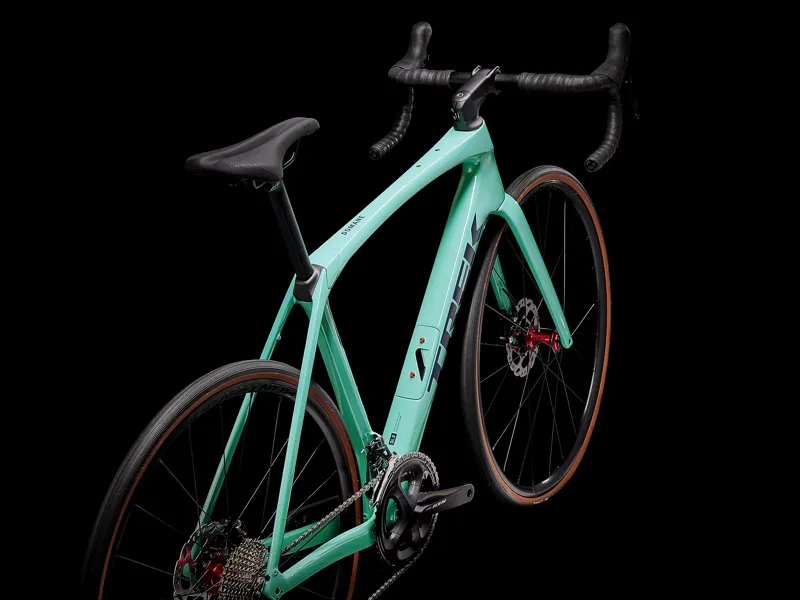

Frame

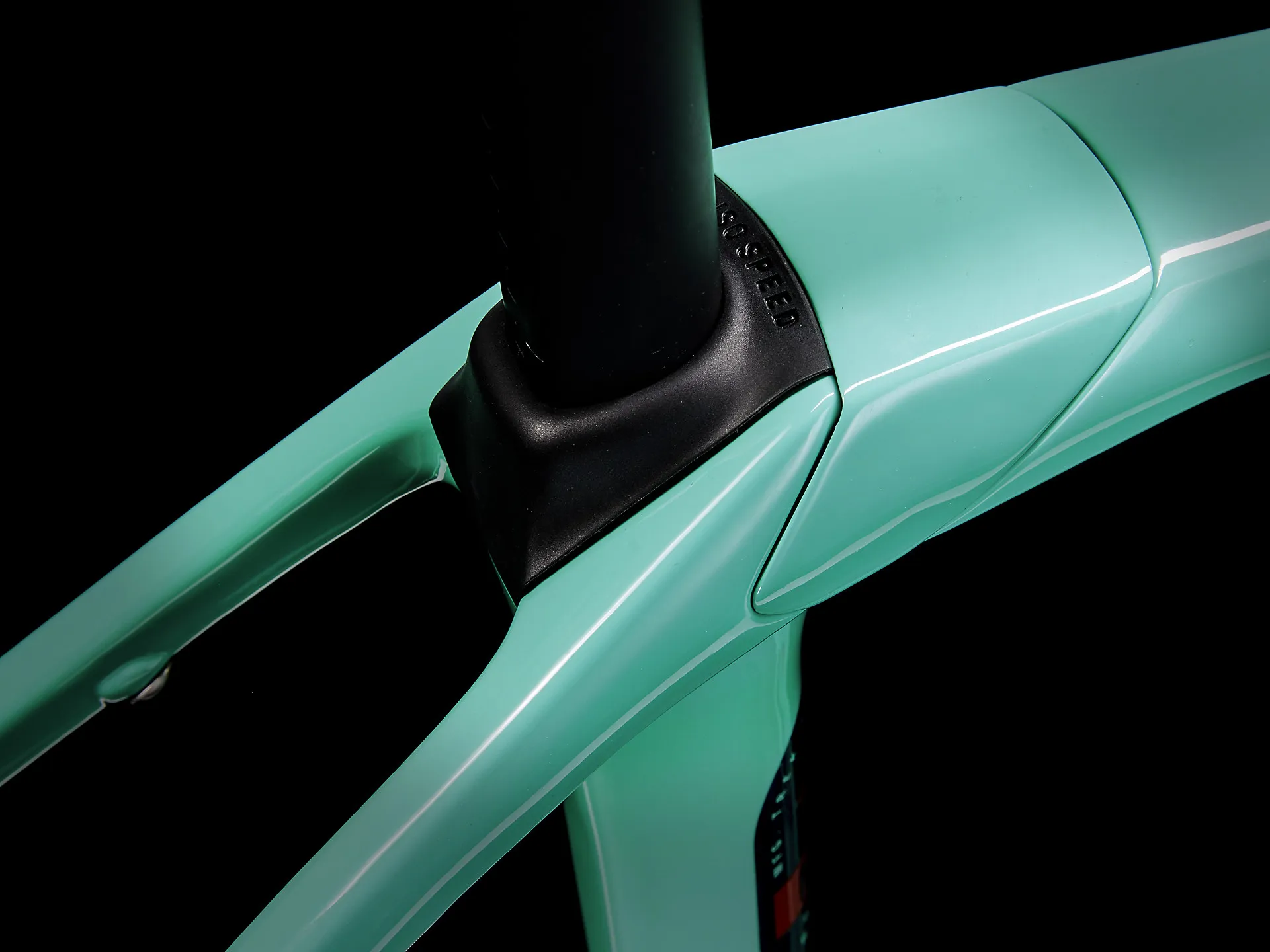

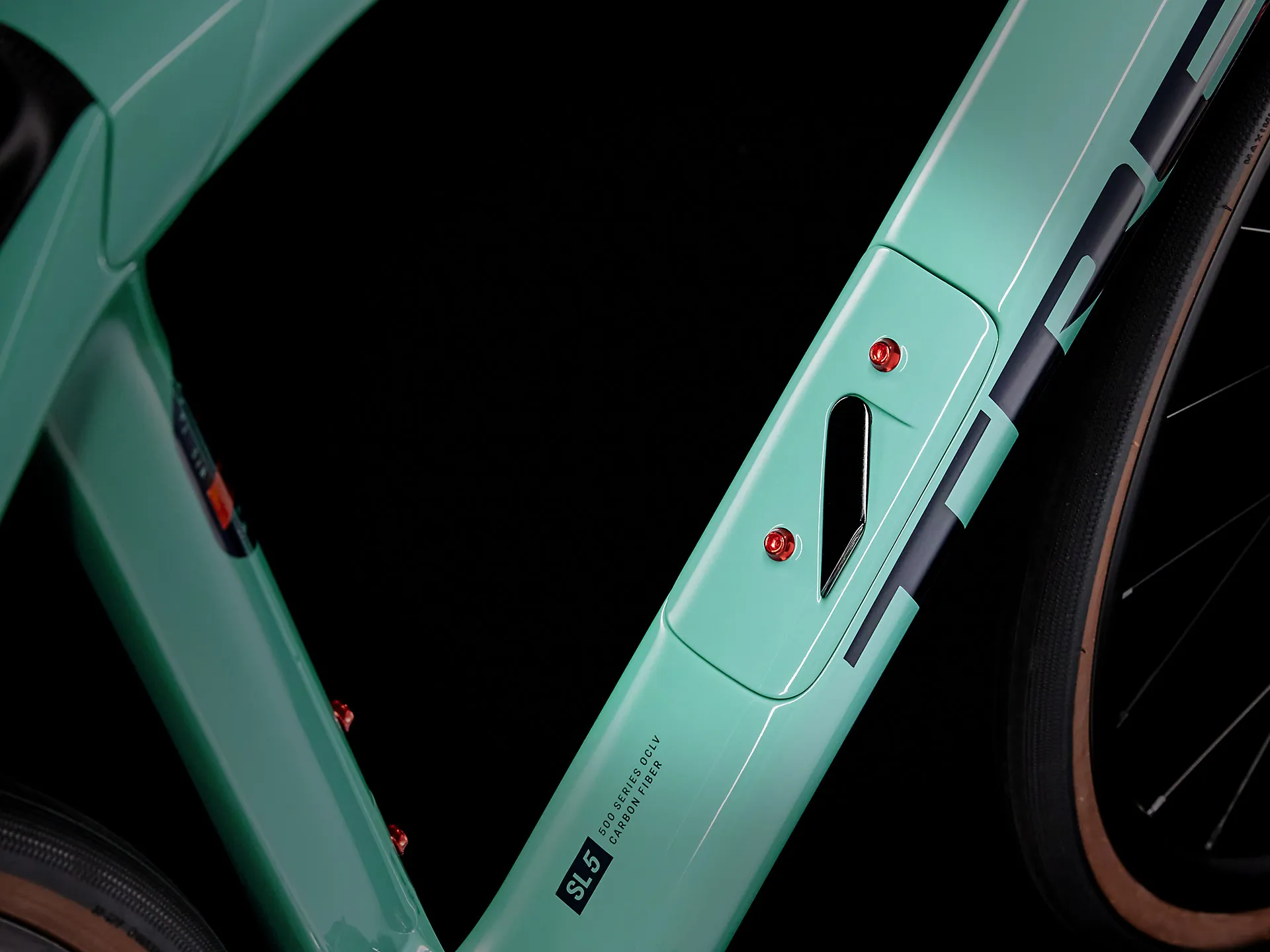

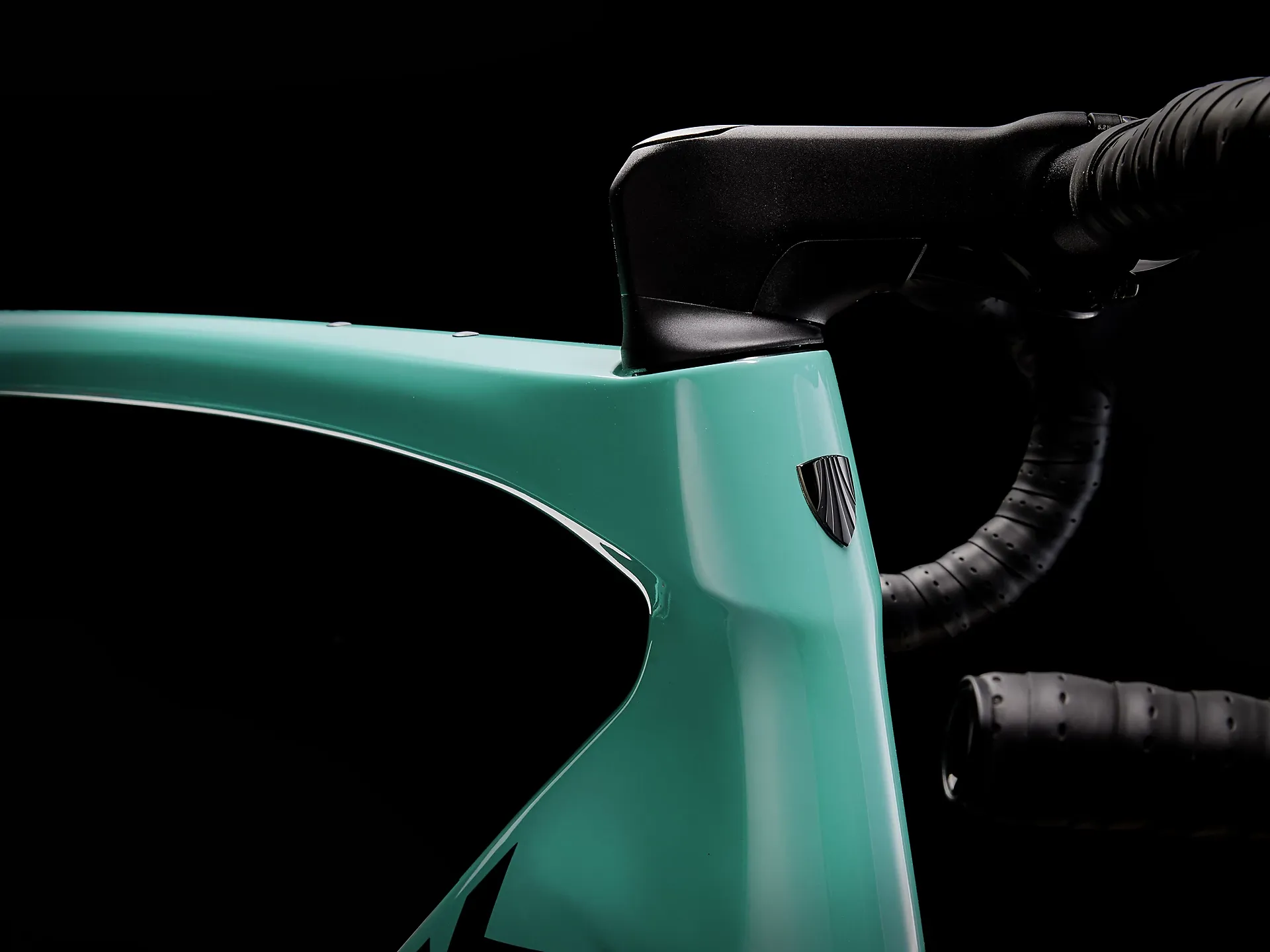

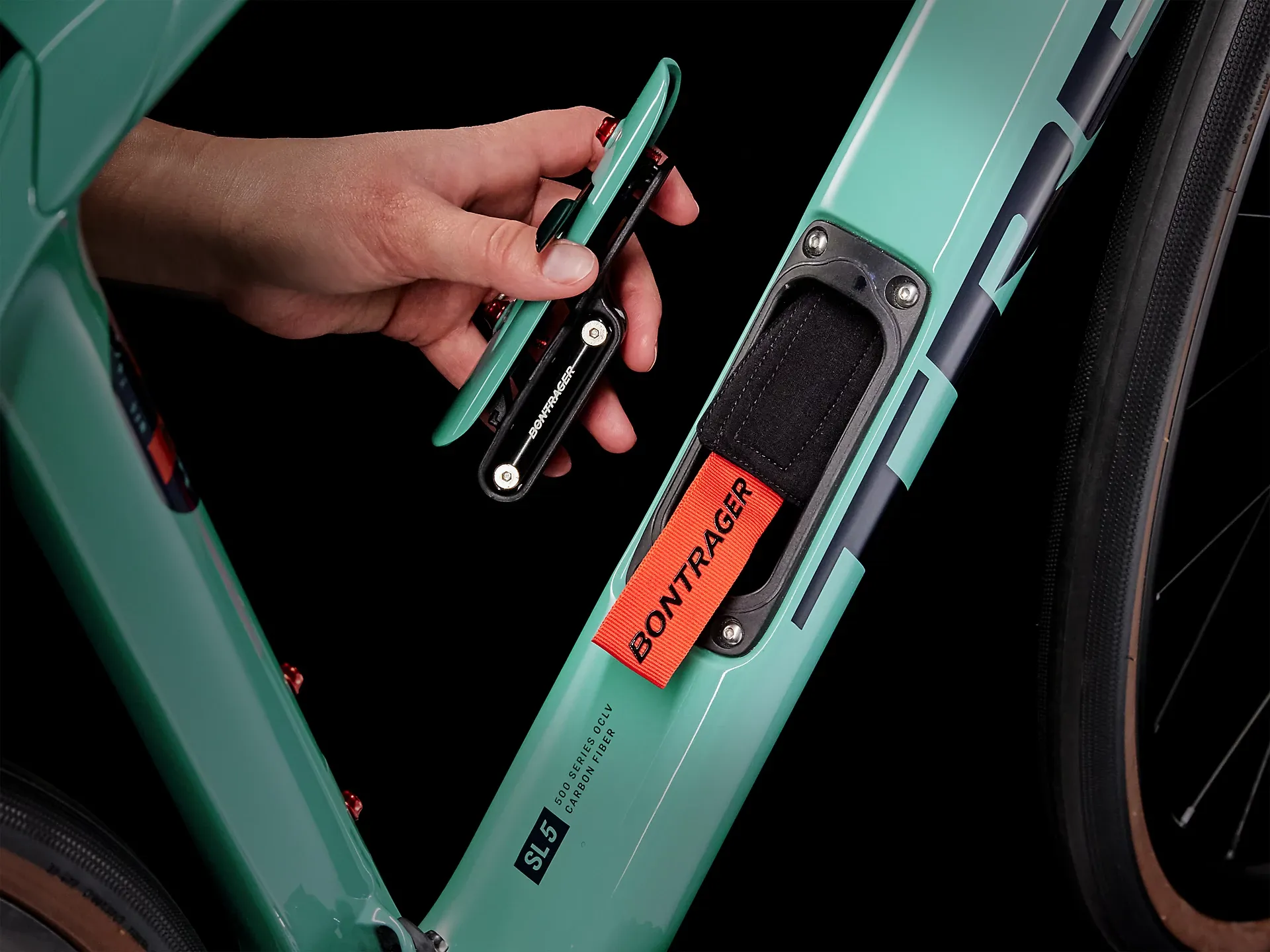

500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12mm thru axle
Frame fit
Endurance
Hub front
Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Rim
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes
14g stainless
Tyre
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 c
Max tyre size
38c without mudguards, 35c with mudguards
Shifter
Size: 44, 47, 50, 52
Shimano 105 R7025, short-reach lever, 11-speed
Size:54, 56, 58, 60, 62
Shimano 105 R7020, 11-speed
Front derailleur
Shimano 105 R7000, braze-on
Rear derailleur
Shimano 105 R7000, long cage, 34T max cog

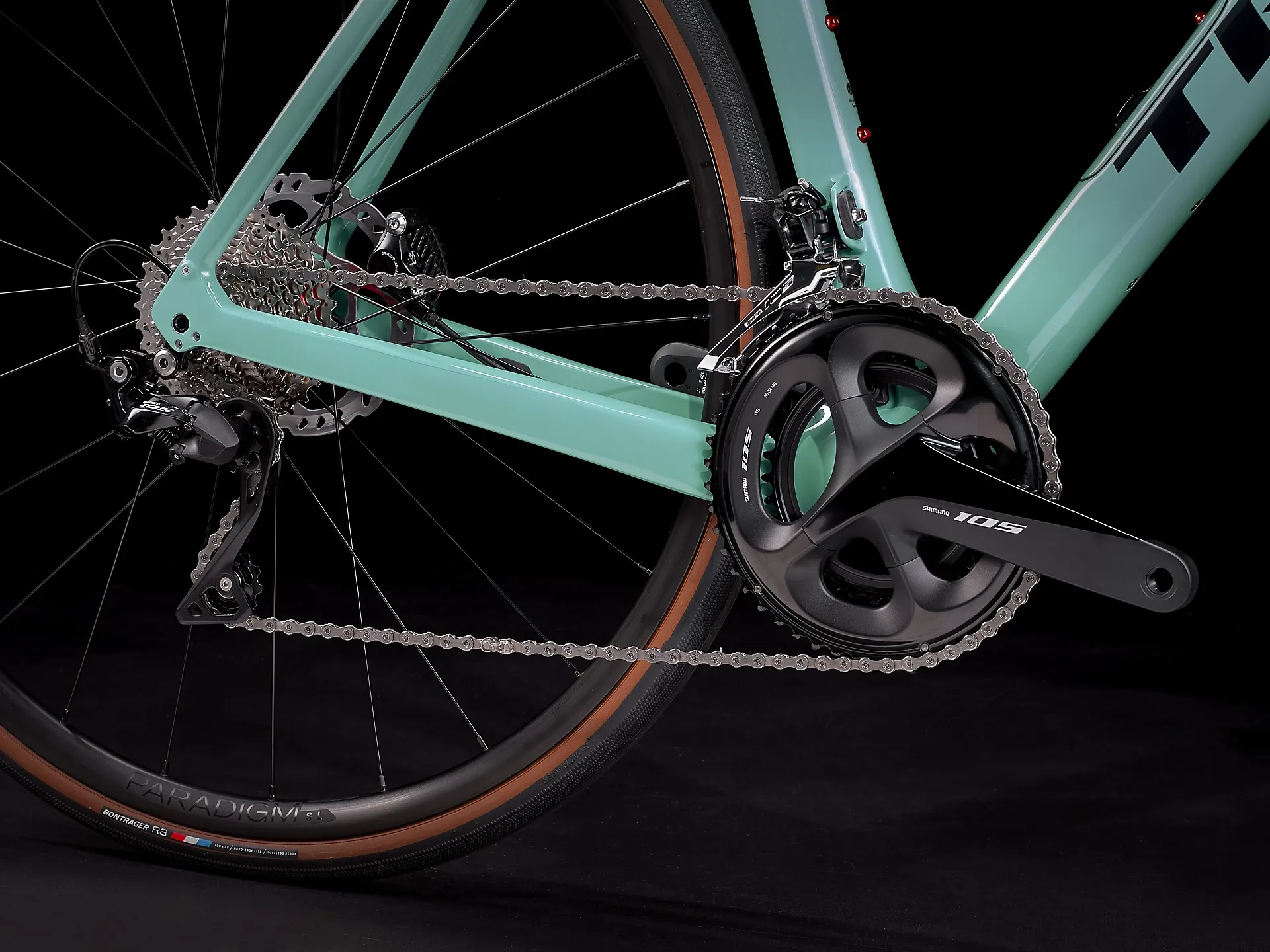

Crank
Size: 44, 47
Shimano 105 R7000, 50/34 (compact), 165 mm length
Size:50, 52
Shimano 105 R7000, 50/34 (compact), 170 mm length
Size:54, 56
Shimano 105 R7000, 50/34 (compact), 172.5 mm length
Size:58, 60, 62
Shimano 105 R7000, 50/34 (compact), 175 mm length
Bottom bracket
Praxis, T47 threaded, internal bearing
Cassette
Shimano 105 HG700-11, 11-34, 11 speed
Chain
Shimano 105 HG601, 11-speed
Max. chainring size
2x: 52/36
Saddle
Size: 44, 47, 50, 52
Bontrager Verse Comp, steel rails, 155 mm width
Size:54, 56, 58, 60, 62
Bontrager Verse Comp, steel rails, 145 mm width

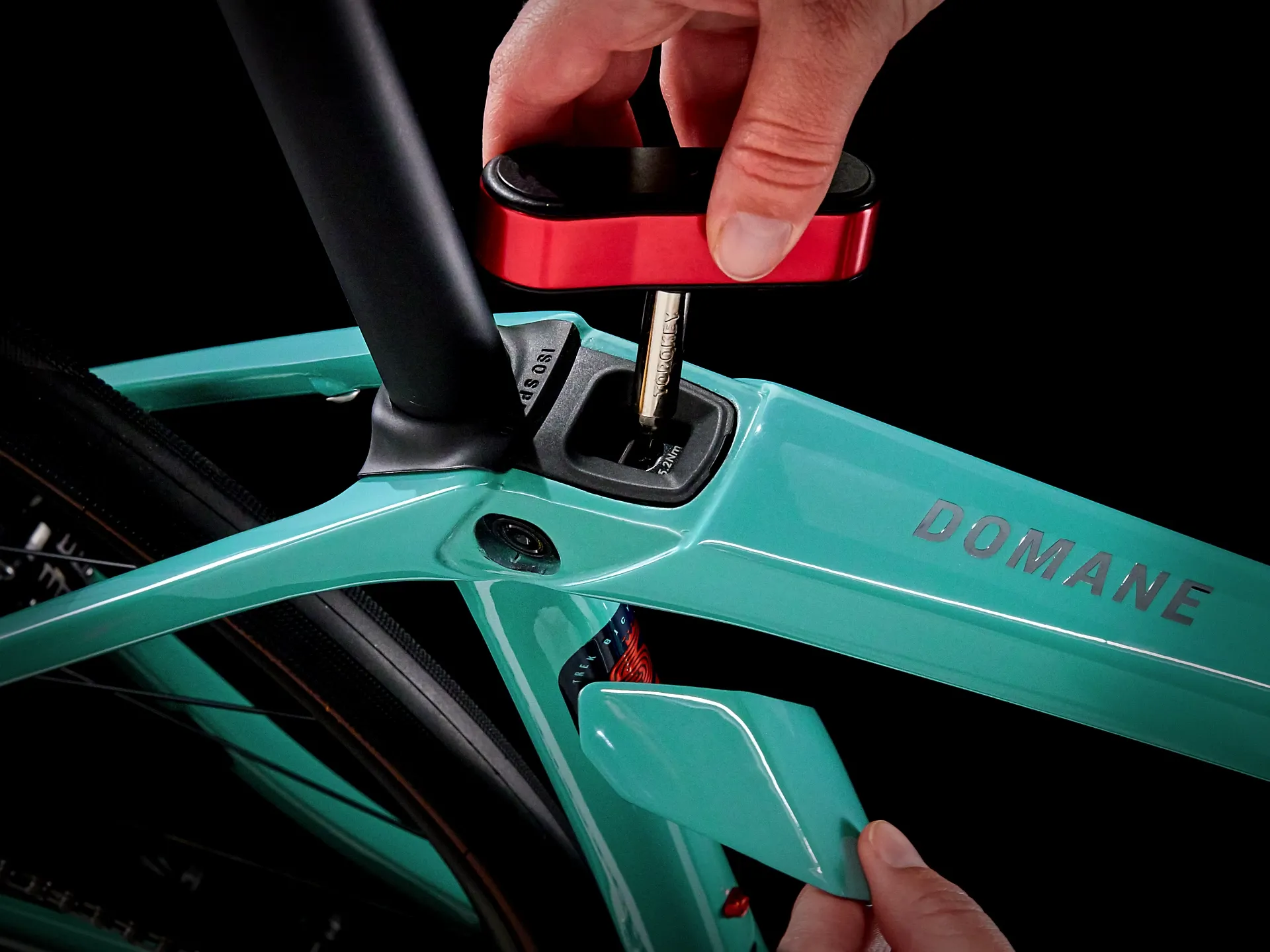

Seatpost
Size:44, 47, 50, 52, 54, 56
Domane carbon seat post, KVF shaping, 20 mm offset, 280 mm length
Size:58, 60, 62
Domane carbon seat post, KVF shaping, 20 mm offset, 320 mm length

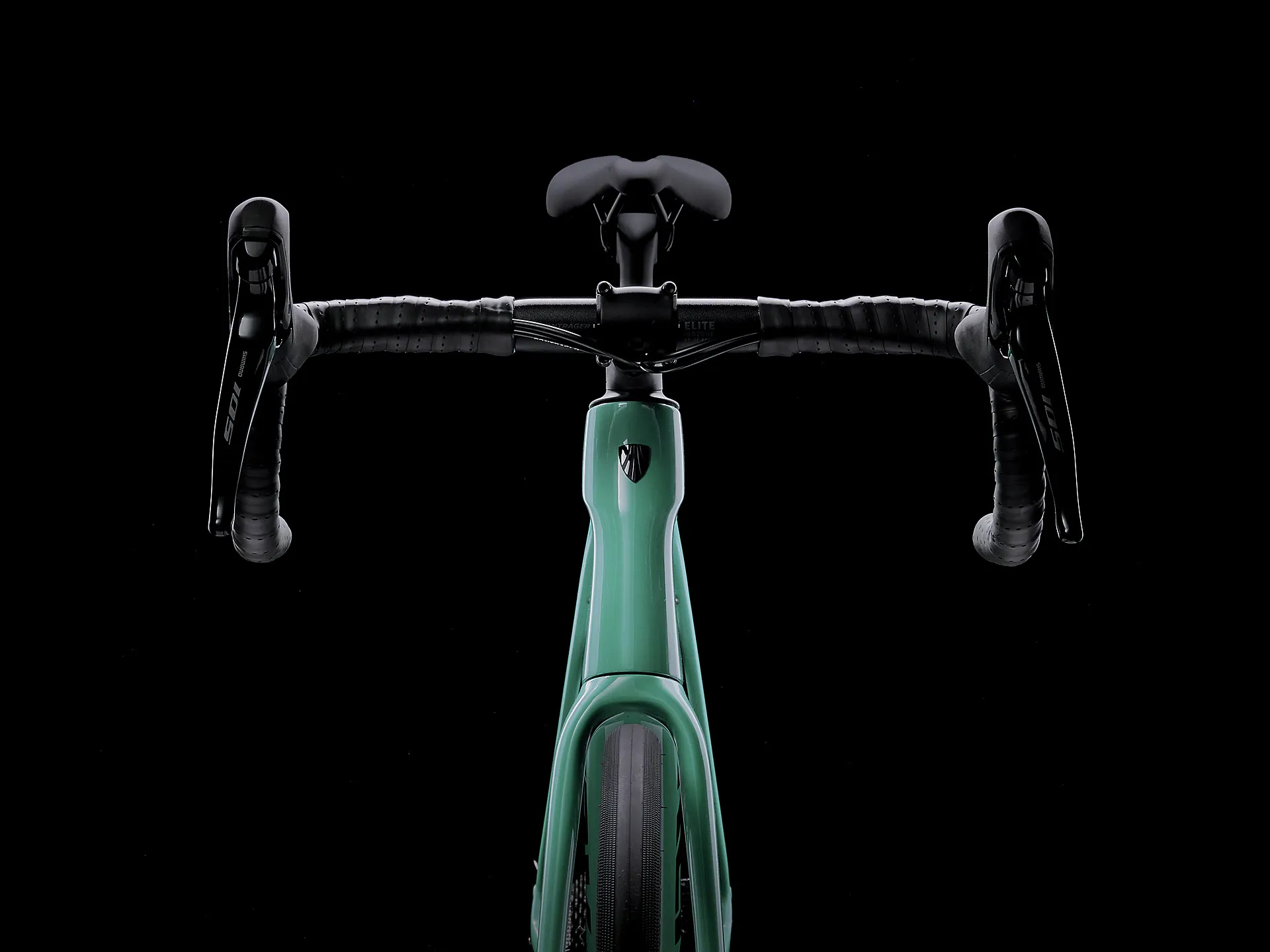

Handlebar
Size: 44, 47
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 36 cm width
Size:50
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 38 cm width
Size:52
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 40 cm width
Size:54, 56
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 42 cm width
Size:58, 60, 62
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 44 cm width
Handlebar tape
Bontrager Supertack Perf tape

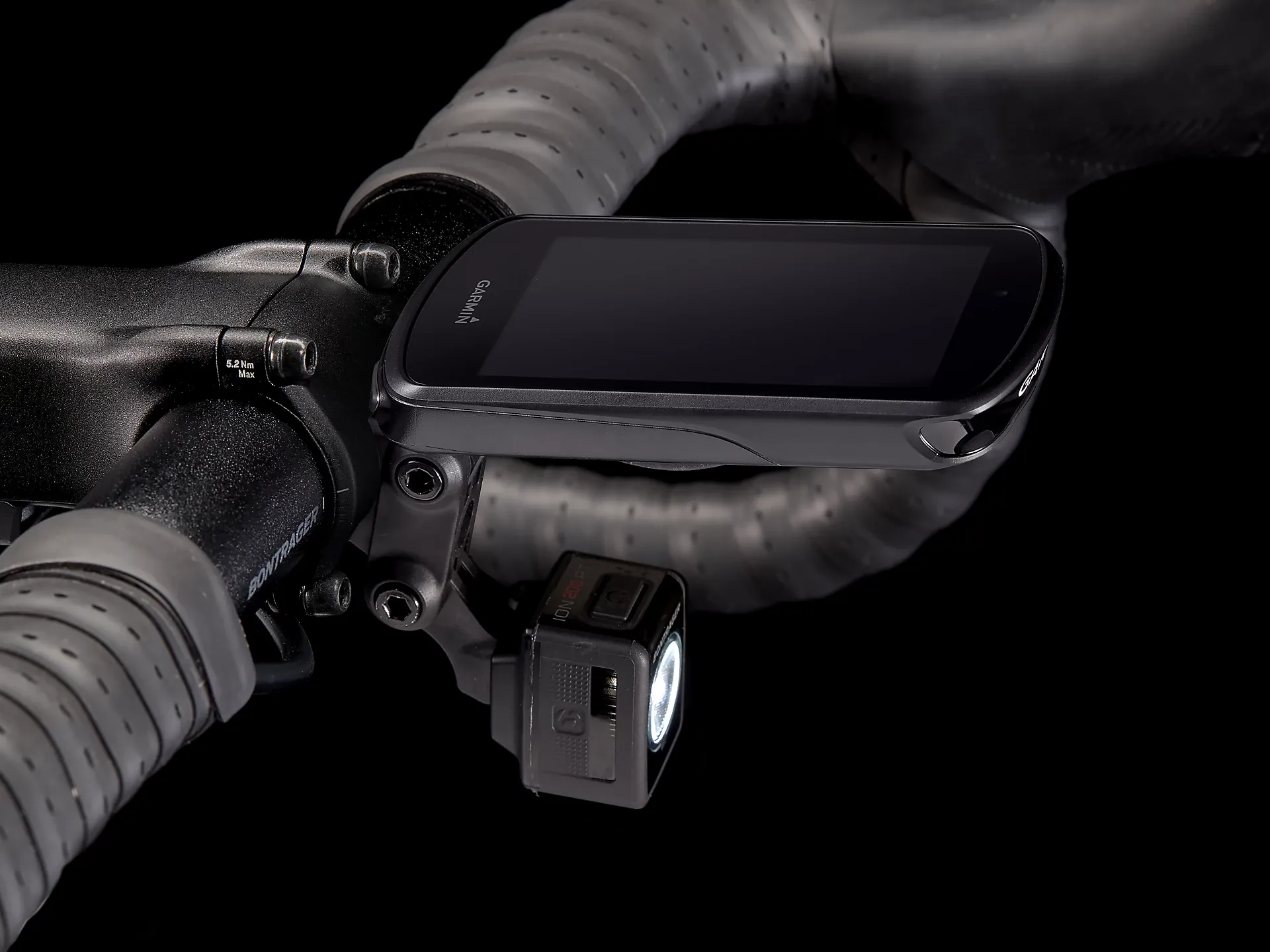

Stem
Size: 44
Bontrager RCS Pro, -7-degree, 60mm length
Size:47
Bontrager RCS Pro, -7-degree, 70mm length
Size:50
Bontrager RCS Pro, -7-degree, 80mm length
Size:52, 54
Bontrager RCS Pro, -7-degree, 90mm length
Size:56, 58
Bontrager RCS Pro, -7-degree, 100mm length
Size:60, 62
Bontrager RCS Pro, -7-degree, 110mm length
Brake
Shimano 105 hydraulic disc

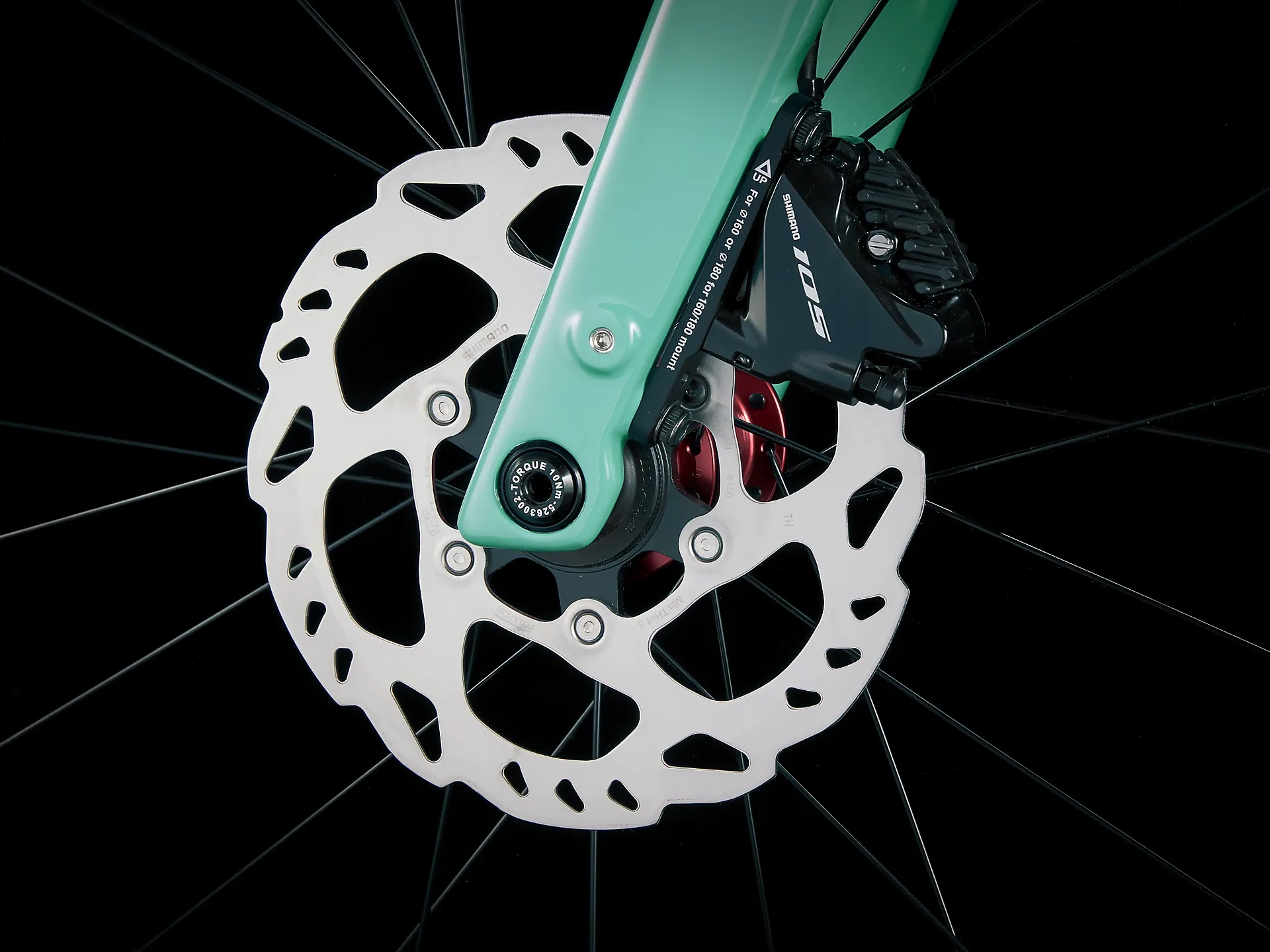

Brake rotor
Shimano RT70, CentreLock, 160 mm
Rotor size
Max brake rotor sizes: 160 mm front and rear
Weight
56 - 8.93 kg/19.69 lb
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
