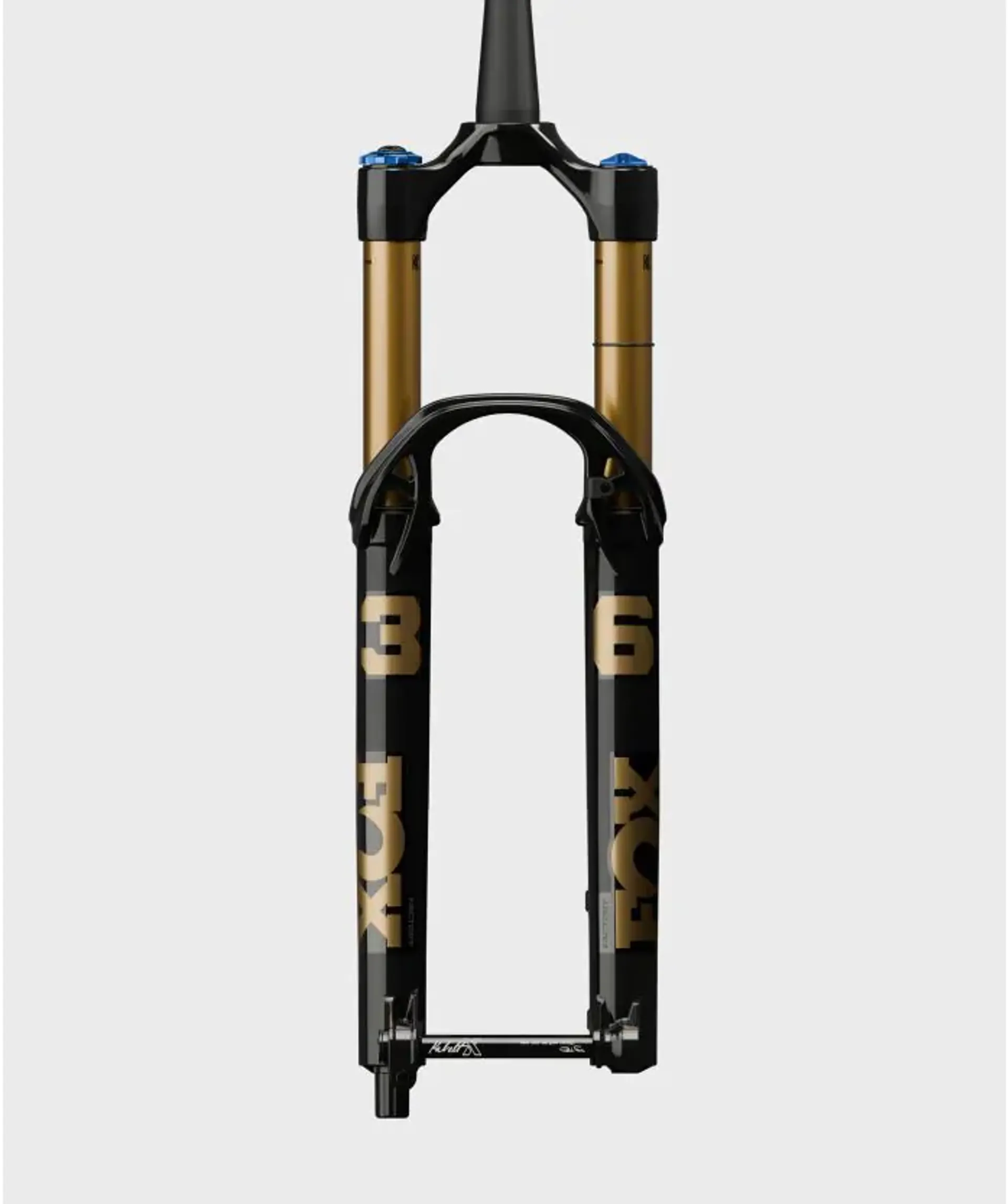

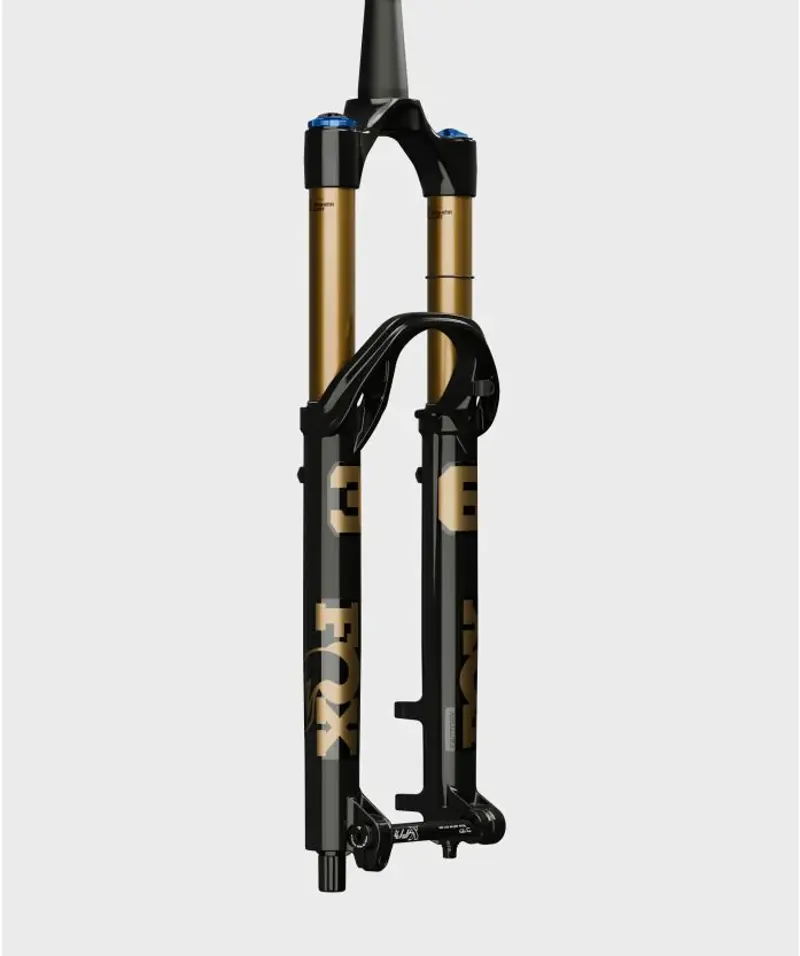

Since its debut in 2005, the FOX 36 has been the benchmark for aggressive single crown forks. This latest generation raises the bar with a stiffer chassis, more tuning capability, and a smoother ride. Built for riders who demand uncompromising performance on rough and fast trails, the updated 36 now delivers an enduro-level ride feel at a trail-friendly weight.
Key Specifications
Travel: 160mm
Wheel Size: 29"
Axle: 15QR x 110mm Boost (Kabolt)
Rake/Offset: 44mm
Steerer: Tapered
Damper: GRIP X2 – High and Low-Speed Compression and Rebound Adjustment
Spring: FLOAT EVOL air spring
Weight: Approx. 2,065g
Finish: Factory Series with Kashima Coat
Performance Features
GRIP X2 Damper – More Control, More Speed
The GRIP X2 damper takes inspiration from motocross, with a larger 24mm base valve and 23 internal valves for superior oil flow and precise control. It offers:
4-way independent adjustability
Better traction and support across the stroke
Less damper cross-talk for more consistent tuning
FLOAT EVOL Air Spring – Compliance Under Load
Redesigned to decouple stanchion flex from the air shaft, the updated FLOAT EVOL air spring maintains plushness and control, especially under hard compressions and high-speed hits.
Stiffer Chassis – 20% More Torsional Stiffness
With a new arch design and increased bushing overlap, the 36 achieves 20% more torsional stiffness over the previous generation—now offering 87% of the FOX 38’s stiffness while remaining 275 grams lighter.
Inboard Bypass Channels
Relocated to the inside of the fork legs, the bypass channels improve oil flow and reduce pressure ramping, resulting in smoother travel and better long-term durability.
Refined Utility and Design
Low-profile air bleeders for quick pressure release
Air cap compatible with standard Shimano cassette tool
Mudguard mounts repositioned to the arch for improved aesthetics and seal protection
Summary
The FOX 36 Float Factory GRIP X2 is designed for aggressive all-mountain and enduro riders who demand high performance without the added weight of a burlier fork. With improved stiffness, adjustability, and small-bump sensitivity, the new 36 is the most refined version yet—ready for the roughest terrain and fastest lines.
