Frameset
Frame
800 Series OCLV Carbon, IsoSpeed, hidden mudguard mounts, integrated frame bag mounts, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle

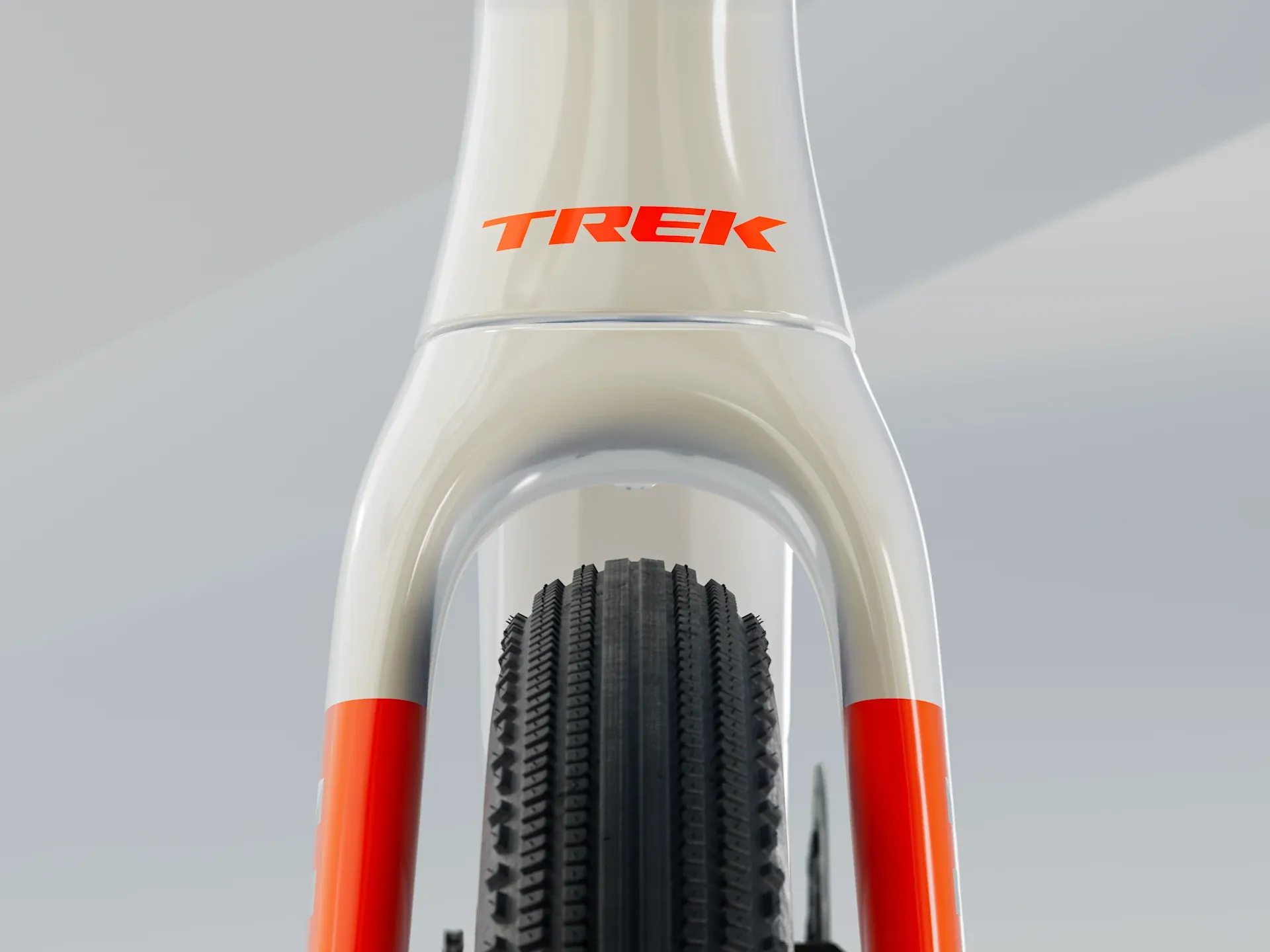

Fork
Checkmate SLR full carbon, tapered carbon steerer, hidden mudguard mounts, flat-mount disc, 12x100 mm thru axle
Weight
Weight
ML - 8.10 kg / 17.86 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg / 275 lb
E-System
Battery
SRAM eTap battery pack (with charger)

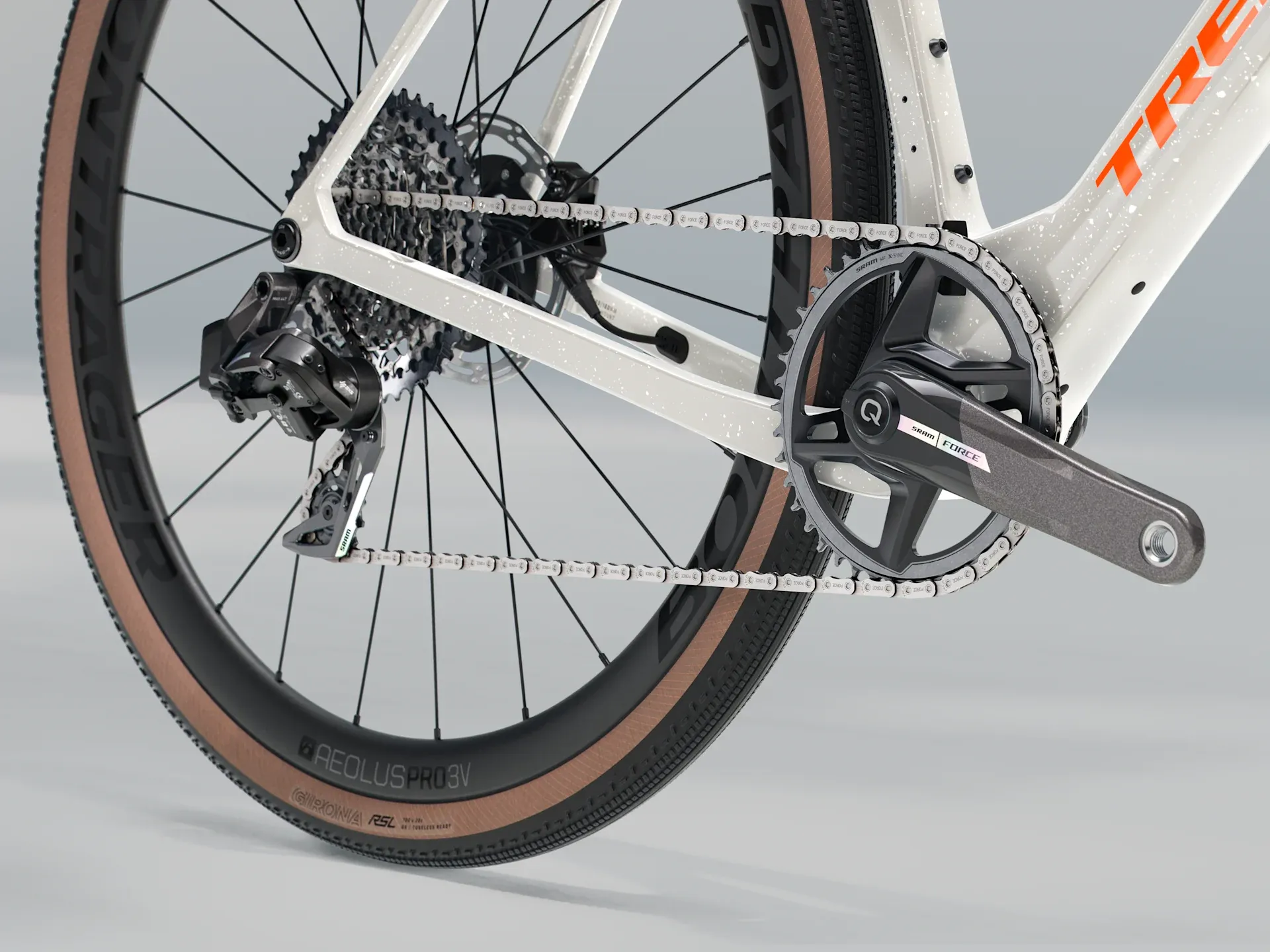

Drivetrain
Shifter
SRAM Force AXS D2, 12-speed
Rear derailleur
SRAM Force XPLR AXS D2, 44T max cog
Crank
- Size XS, S: SRAM Force 1 AXS D2 w/ power meter, 40T, DUB, 165 mm length
- Size M: SRAM Force 1 AXS D2 w/ power meter, 40T, DUB, 170 mm length
- Size ML, L, XL: SRAM Force 1 AXS D2 w/ power meter, 40T, DUB, 172.5 mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM XG-1271, 10-44, 12-speed
Chain
SRAM Force, 12-speed
Max. chainring size
See service manual
Wheels
Wheel front
Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 100 x 12 mm thru axle
Wheel rear
Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, SRAM XD-R driver, 142x12 mm thru axle
Skewer front
Bontrager Switch chamfered thru axle, removable lever
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tyre
Bontrager Girona RSL GR, Tubeless-Ready, aramid bead, 220 tpi, 700x38 mm
Tyre part
Bontrager TLR sealant, 180 ml / 6 oz
Rim strip
Bontrager TLR
Max tyre size
45 mm without mudguards
Components
Saddle
- Size XS, S: Bontrager Aeolus P2 Pro, carbon rails, 155 mm width
- Size M, ML, L, XL: Bontrager Aeolus Pro, carbon rails, 145 mm width
Seatpost
- Size XS, S, M: KVF aero carbon seat post, 5 mm offset, 280 mm length
- Size ML, L, XL: KVF aero carbon seat post, 5 mm offset, 320 mm length

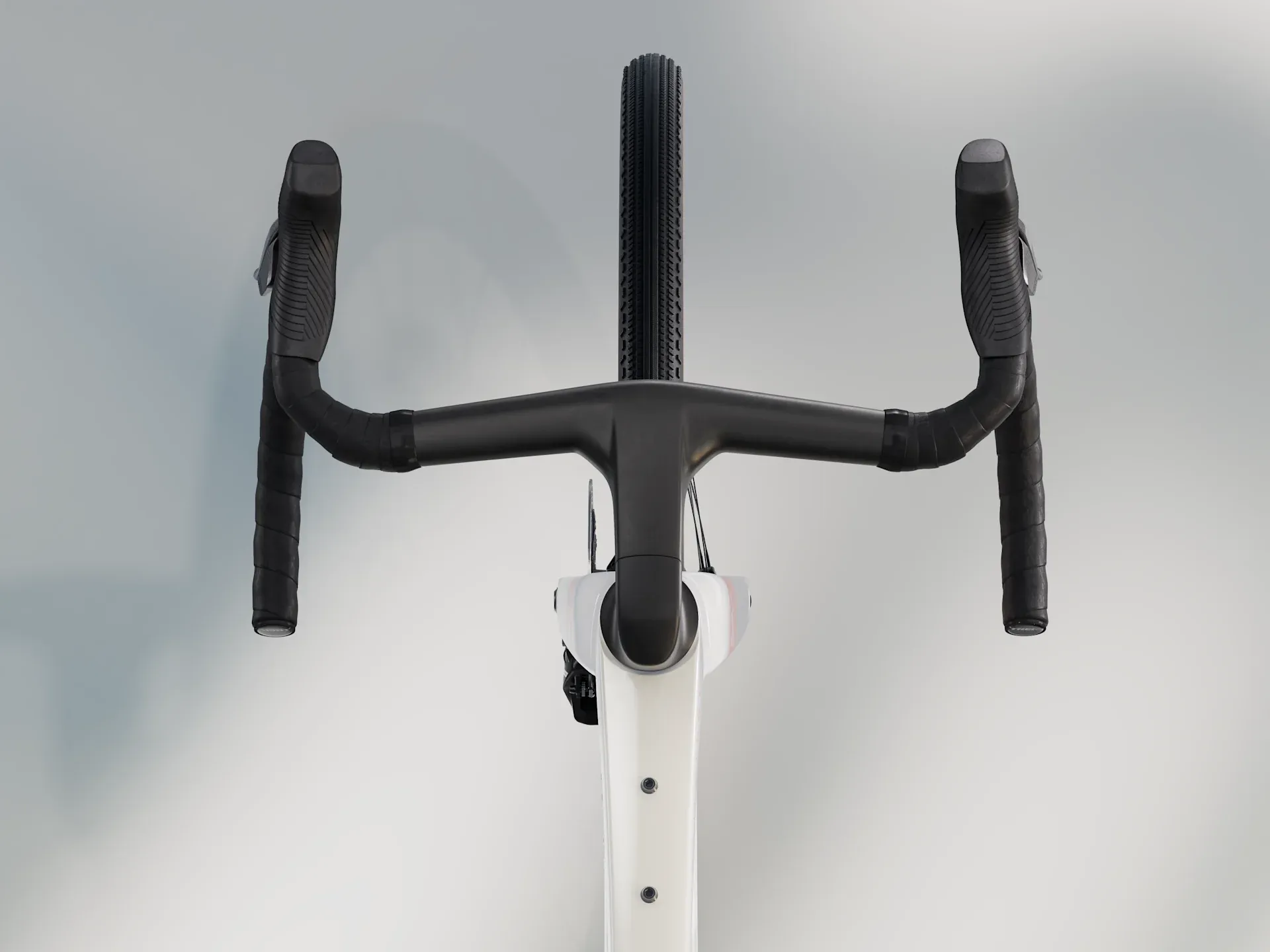

Handlebar / Stem (integrated)
- Size XS: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 70 mm stem length
- Size S: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 80 mm stem length
- Size M: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length
- Size ML, L: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 100 mm stem length
- Size XL: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length
Brake rotor
SRAM CentreLine X, CentreLock, round edge, 160 mm
Rotor size
Max brake rotor sizes: 180 mm front and rear
Notes
We reserve the right to make changes to product information at any time without notice, including equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Bike and frame weights are based on pre-production painted frames at time of publication; weights may vary in final production.
