Frameset

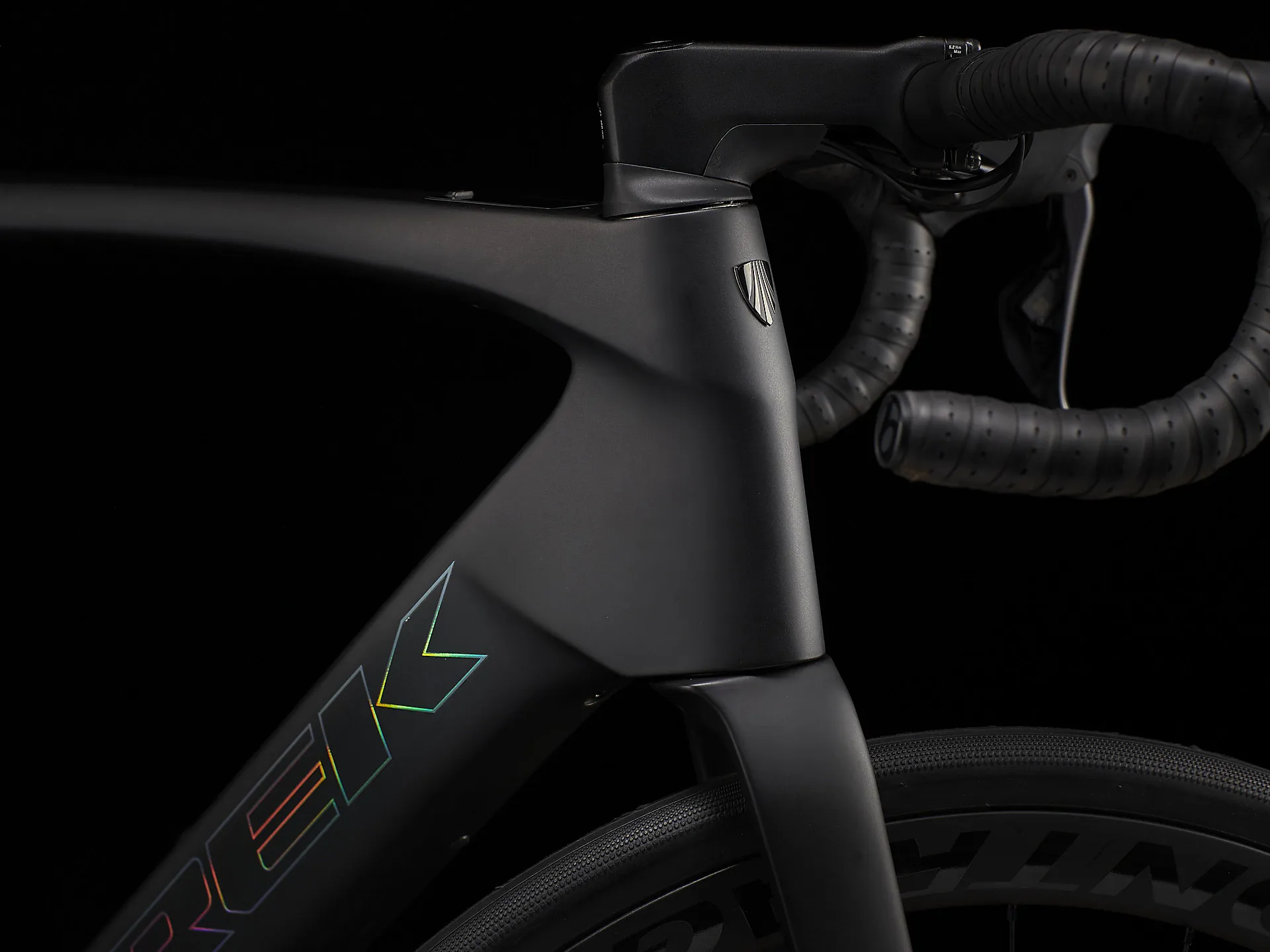

Frame: 800 Series OCLV Carbon, TQ drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, mudguard mounts, 142x12 mm thru axle
Fork: Domane+ carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat mount disc, 12x100 mm thru axle
Frame fit: Endurance
Weight
Weight: 56 - 12.49 kg / 27.54 lbs (with TLR sealant, no tubes)
Weight limit: 125 kg (275 lb) total (bike, rider, cargo)
E-system
Battery: Shimano BT-DN300 / TQ 360Wh (Sizes 50–62)

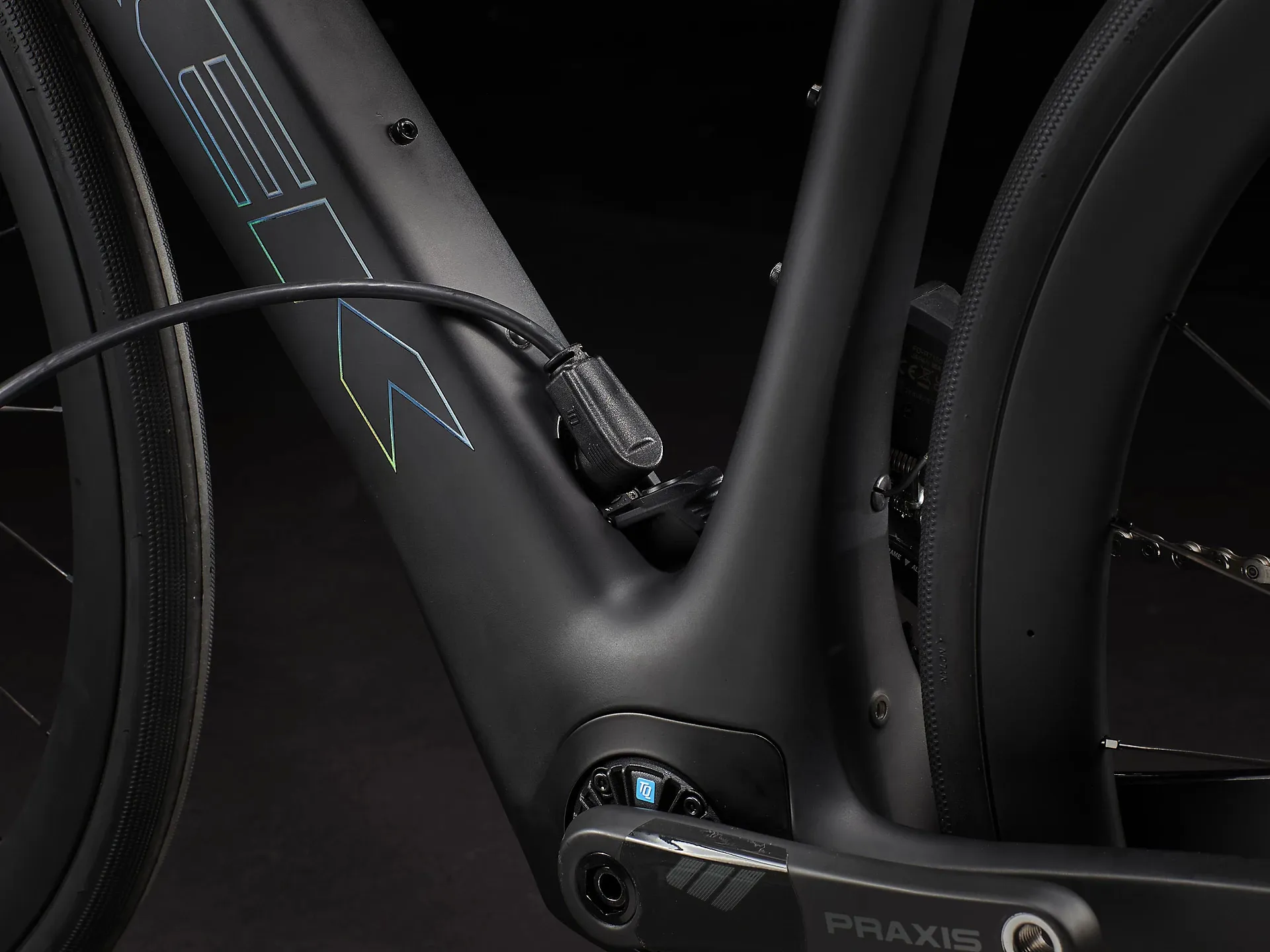

Charger: Charging cable included / TQ 4A charger (Sizes 50–62)

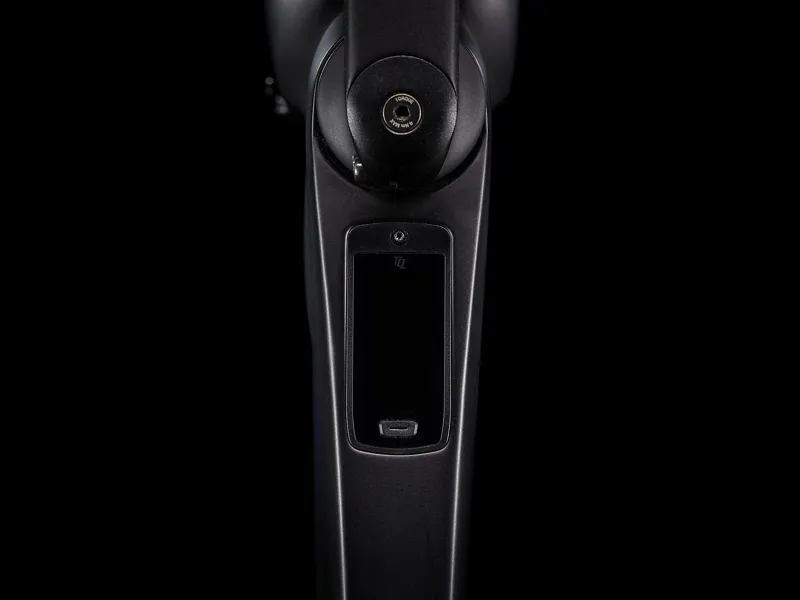

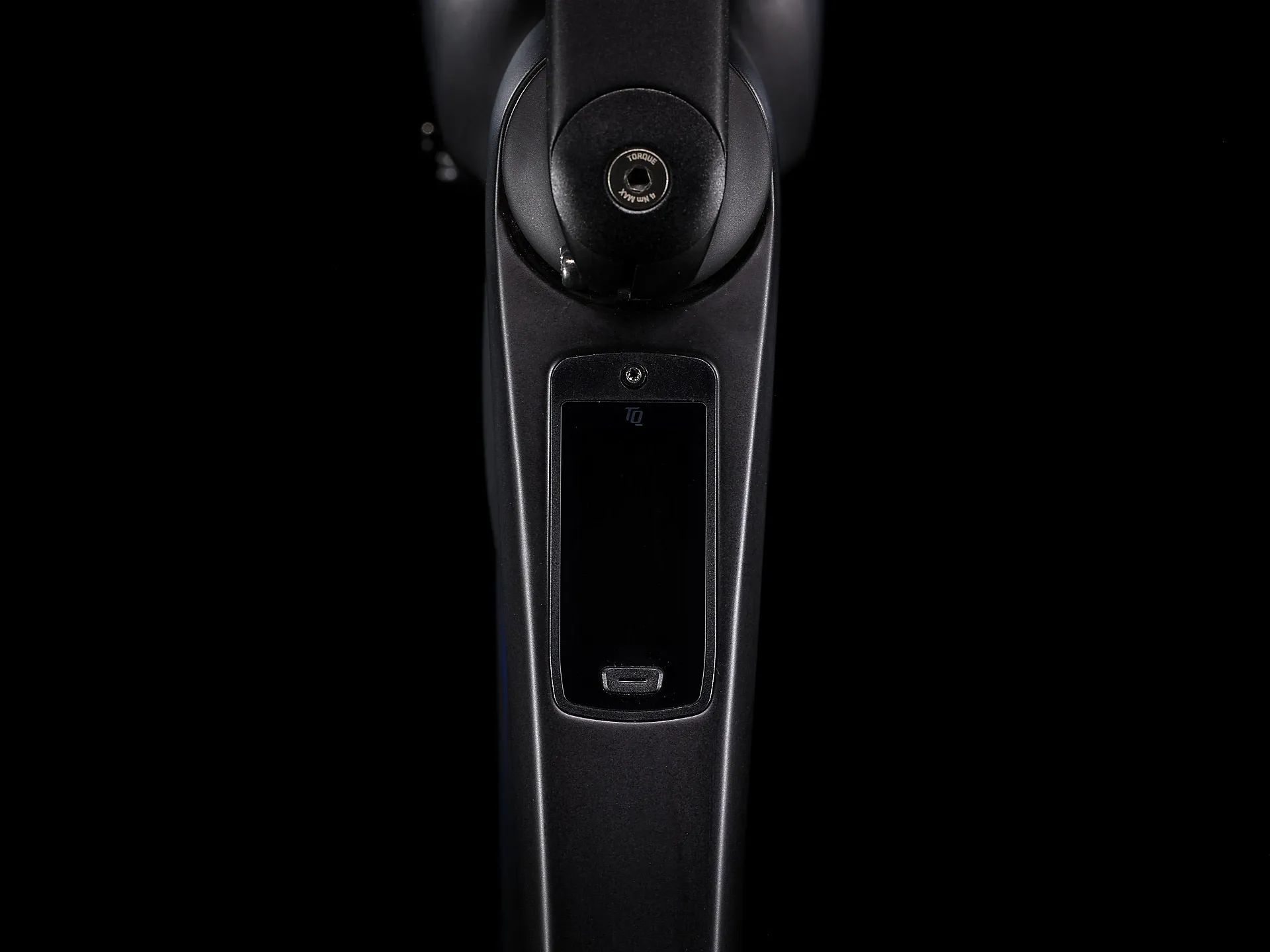

Computer: TQ LED display with Bluetooth & ANT+ connectivity
Motor: TQ-HPR50, 50 Nm, 250 W continuous, 300 W peak
Drivetrain

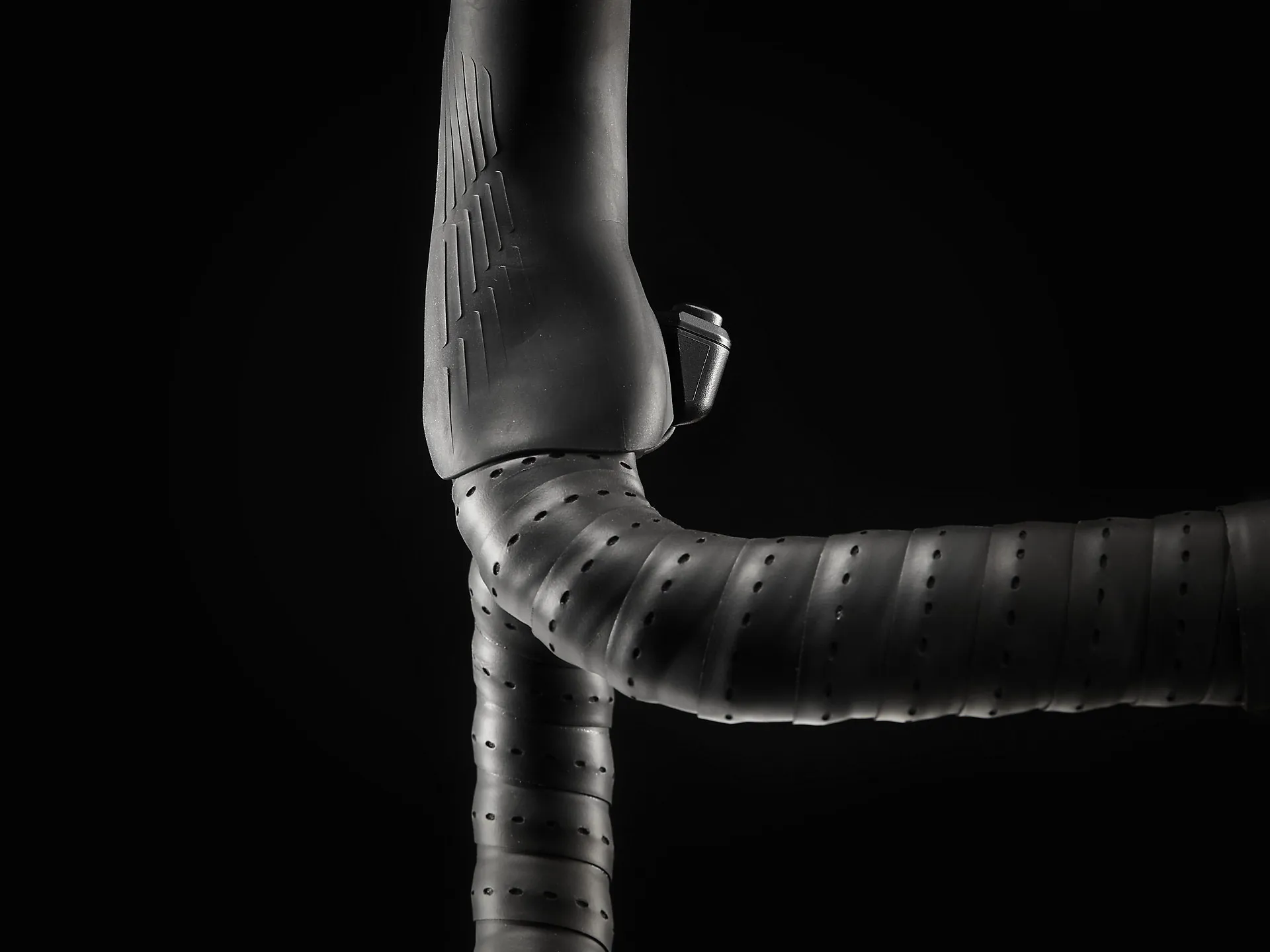

Shifter: Shimano 105 R7170 Di2, 12-speed
Front derailleur: Shimano 105 R7150 Di2, braze-on, down swing
Rear derailleur: Shimano 105 R7150 Di2, 36T max cog

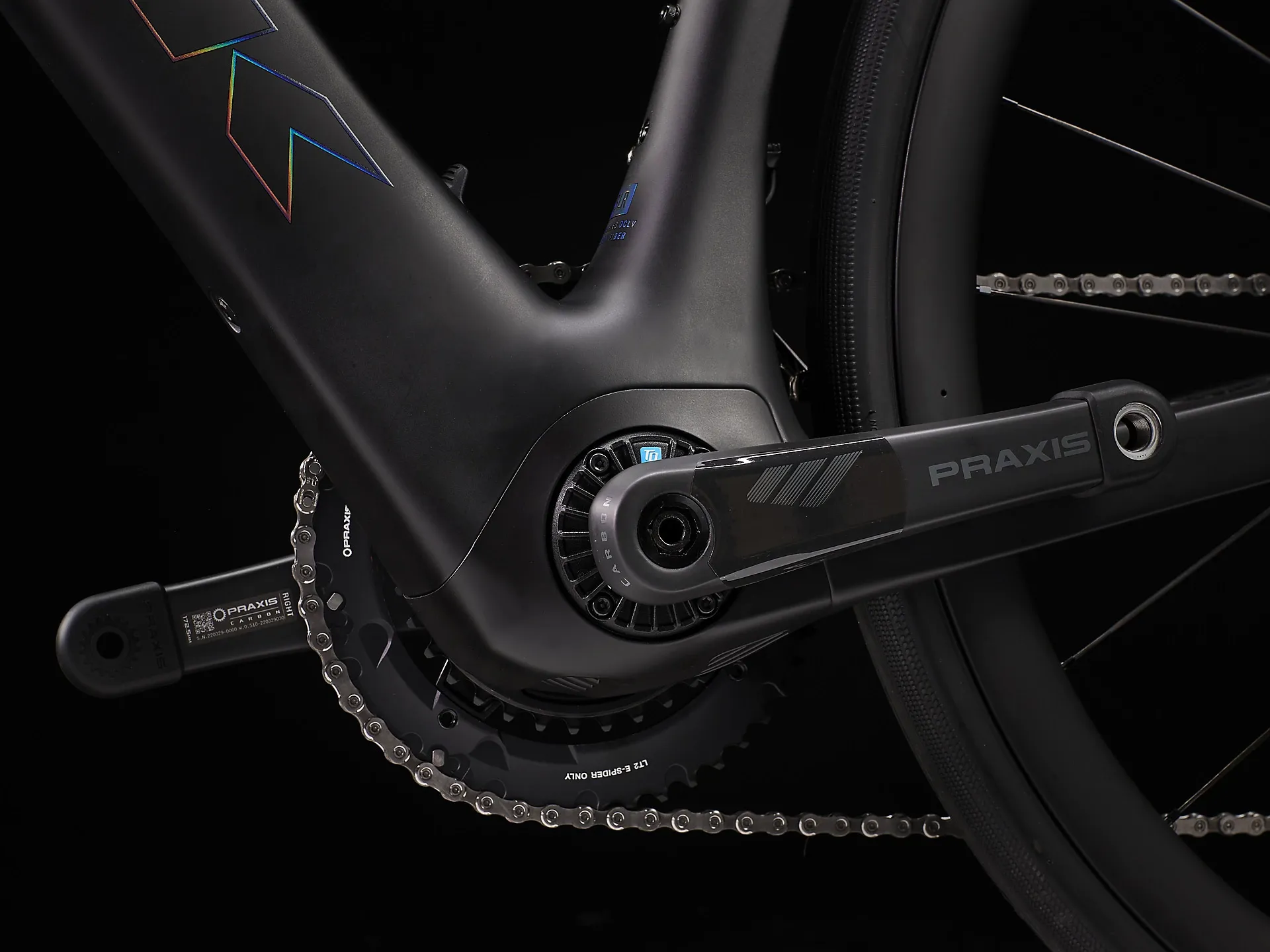

Crank:
- Size 50, 52: Praxis Carbon, 170 mm
- Size 54, 56: Praxis Carbon, 172.5 mm
- Size 58, 60, 62: Praxis Carbon, 175 mm
Cassette: Shimano 105 7100 / 7101, 11-34, 12-speed (Sizes 50–62)
Chain: Shimano SLX M7100, 12-speed
Max. chainring size: 1x: 46T, 2x: 52/36
Wheels
Front wheel: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 100x12 mm thru axle
Rear wheel: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer front: Bontrager Switch thru-axle
Skewer rear: Bontrager Switch thru-axle, removable lever
Tyre: Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 mm
Tyre part: Bontrager TLR sealant, 180 ml/6 oz
Rim strip: Bontrager TLR
Max tyre size: 40 mm without mudguards, 35 mm with mudguards
Components
Saddle:
- Sizes 50, 52: Bontrager Verse Short Elite, hollow stainless steel rails, 155 mm width
- Sizes 54–62: Verse Short Elite, hollow stainless steel rails, 145 mm width
Seatpost:
- Sizes 50–56: KVF aero carbon, 20 mm offset, 280 mm length
- Sizes 58–62: KVF aero carbon, 20 mm offset, 320 mm length

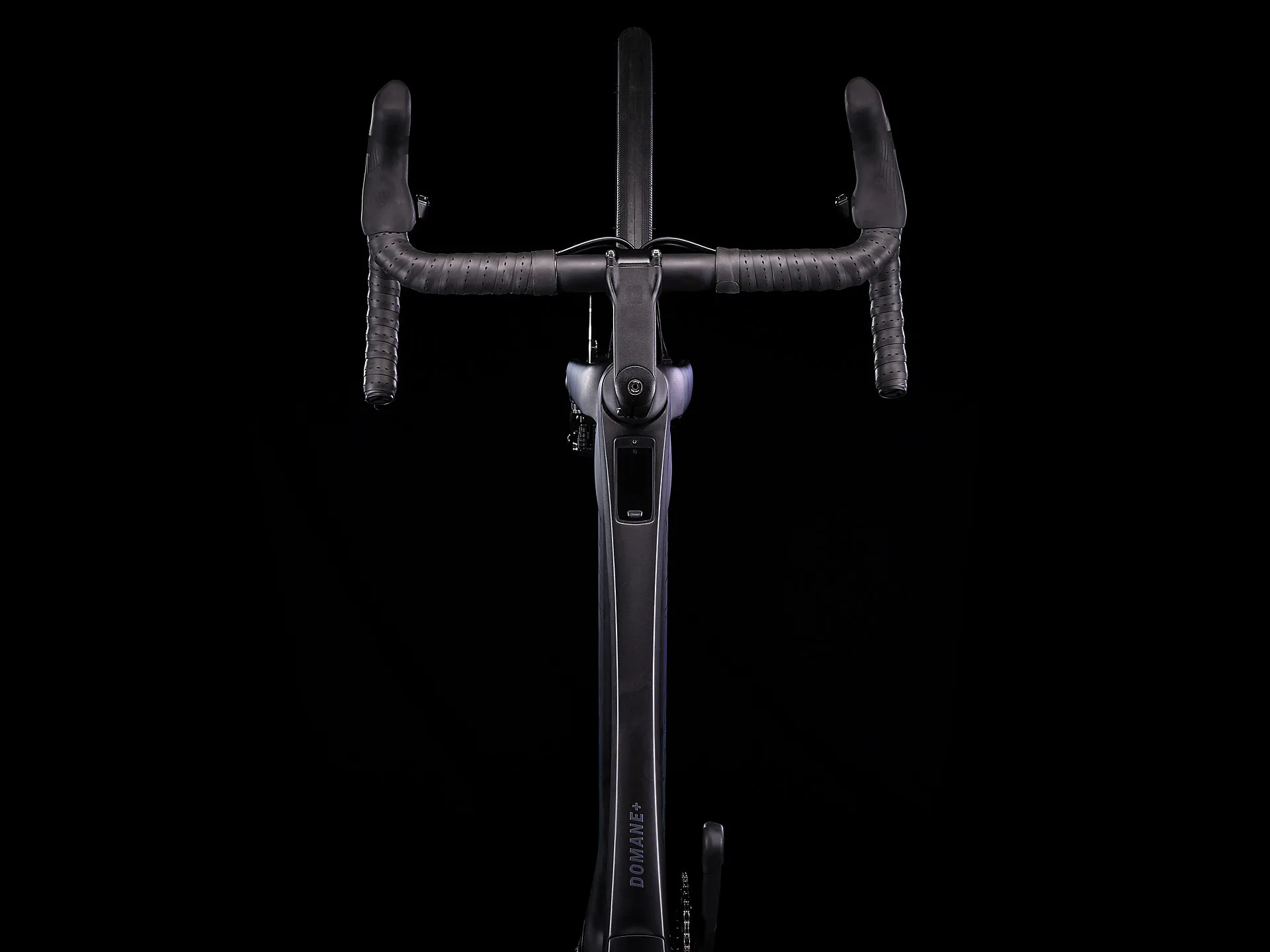

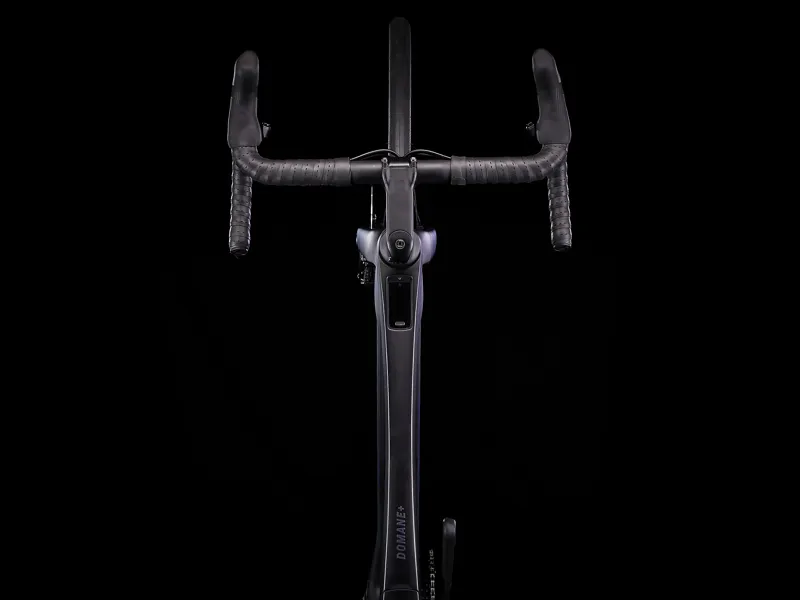

Handlebar:
- Sizes 50, 52: Bontrager Pro IsoCore VR-SF, 40 cm
- Sizes 54, 56: Bontrager Pro IsoCore VR-SF, 42 cm
- Sizes 58–62: Bontrager Pro IsoCore VR-SF, 44 cm
Handlebar tape: Bontrager Supertack Perf tape
Stem:
- Size 50: Trek RCS Pro, -7°, 80 mm
- Sizes 52, 54: Trek RCS Pro, -7°, 90 mm
- Sizes 56, 58: Trek RCS Pro, -7°, 100 mm
- Sizes 60, 62: Trek RCS Pro, -7°, 110 mm
Brake: Shimano 105 hydraulic disc, BR-R7170 flat mount, resin pad with fin
Brake rotor: Shimano RT70, CentreLock, 160 mm
Max rotor size: 180 mm front, 160 mm rear
We reserve the right to make changes to product information at any time without notice. Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
