*Please note – spec applies to all sizes unless listed separately
Frameset
Frame: Alpha Gold Aluminium, internal cable routing, internal battery, rack and mudguard mounts, kickstand mount

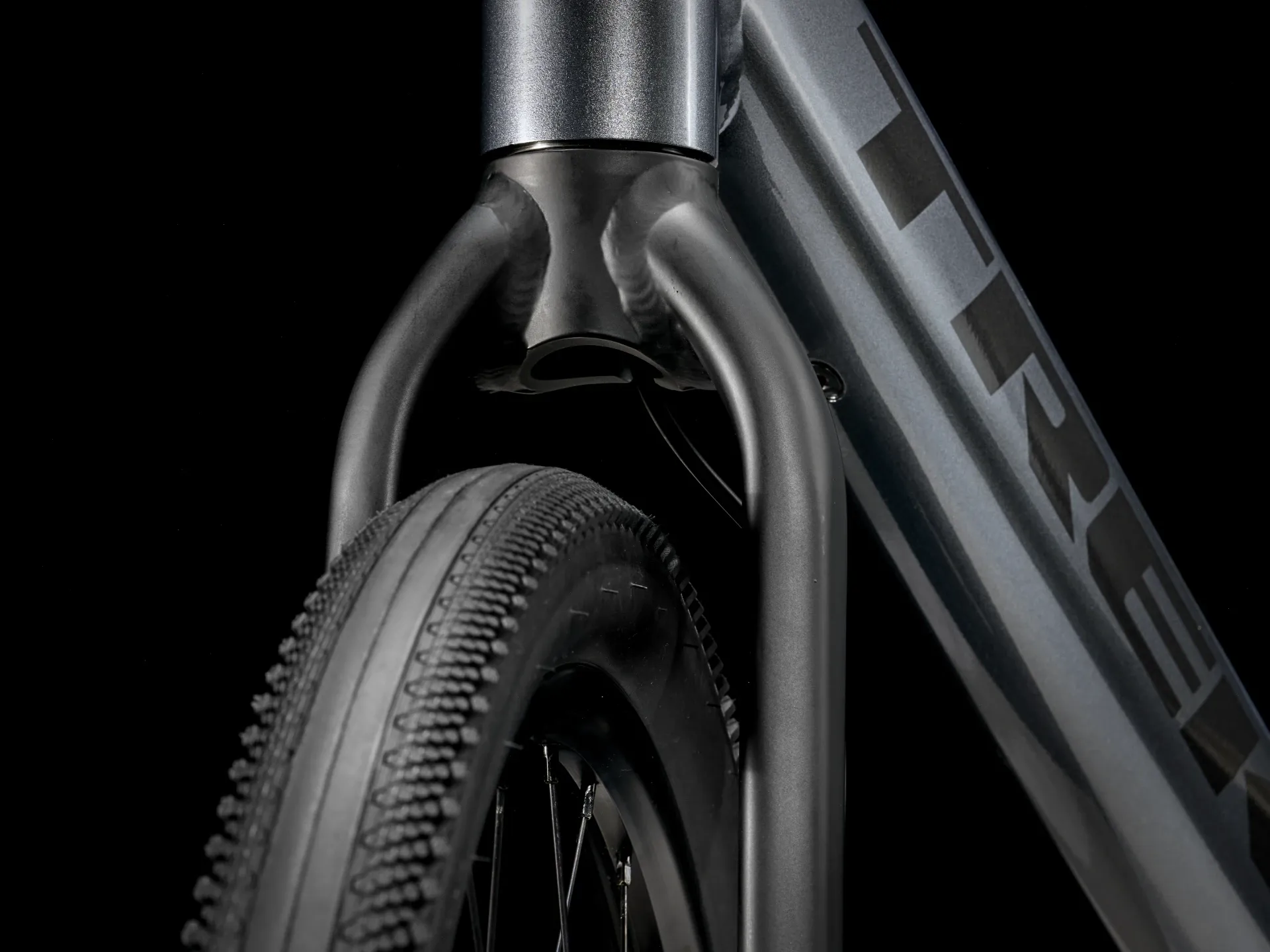

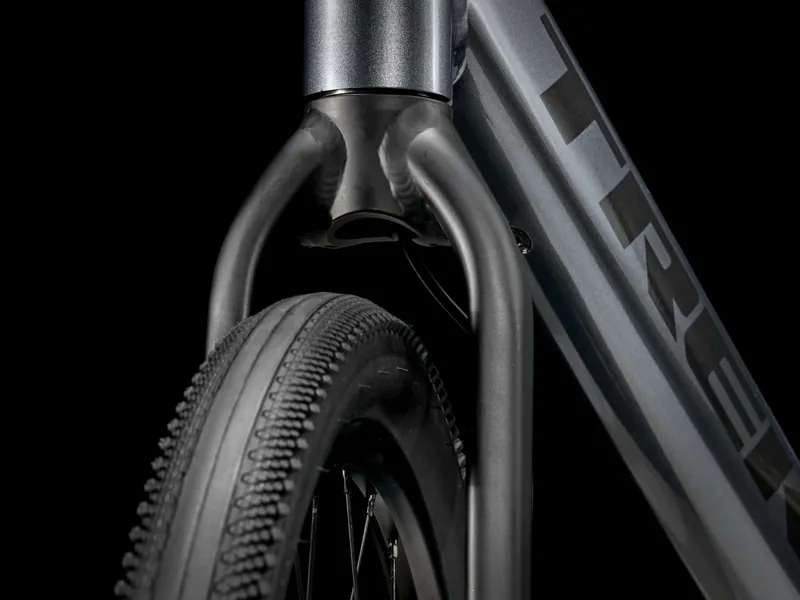

Fork: Alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR
Wheels
Hub front: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Skewer front: 132x5 mm QR

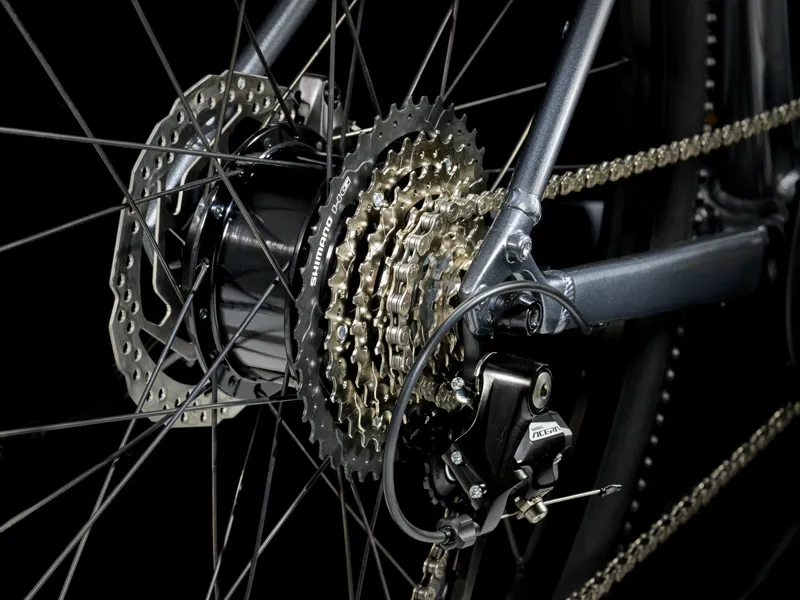

Hub rear: Hyena hub drive motor, 40 Nm, 250 W
Rim: Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Spokes: 14 g stainless steel, black
Tyre: Bontrager GR0 Comp, wire bead, 60 tpi, 650x50 mm
E-system
Battery: 250 Wh, integrated in down tube

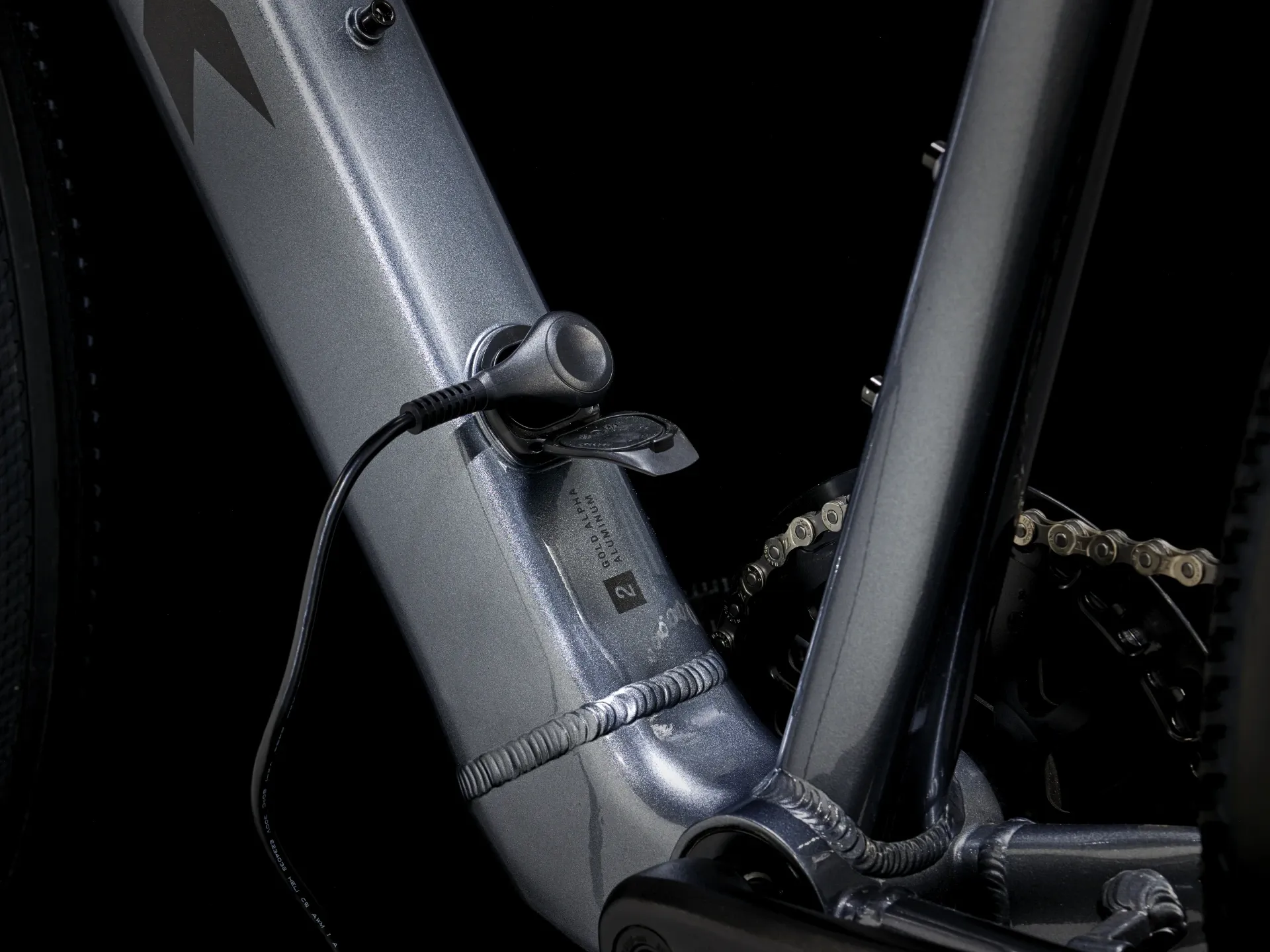

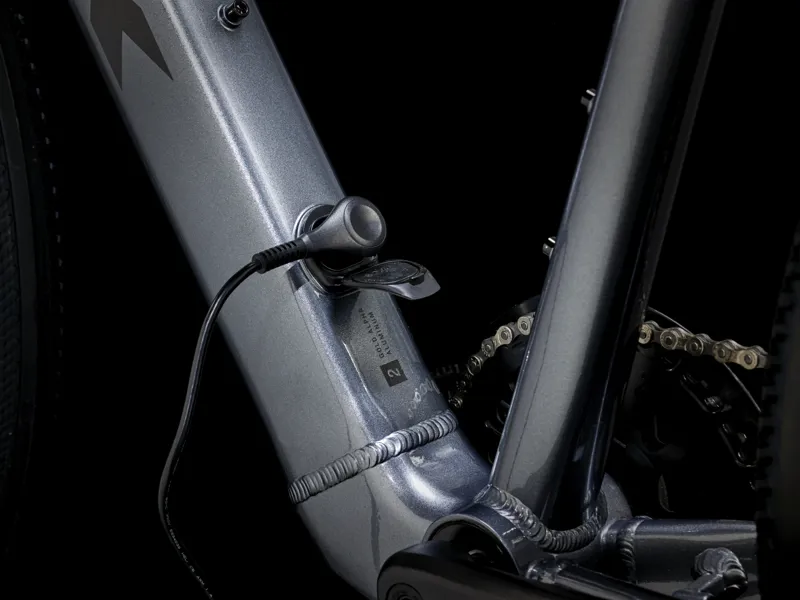

Charger: 2A, 42V output, 100V–240V AC input

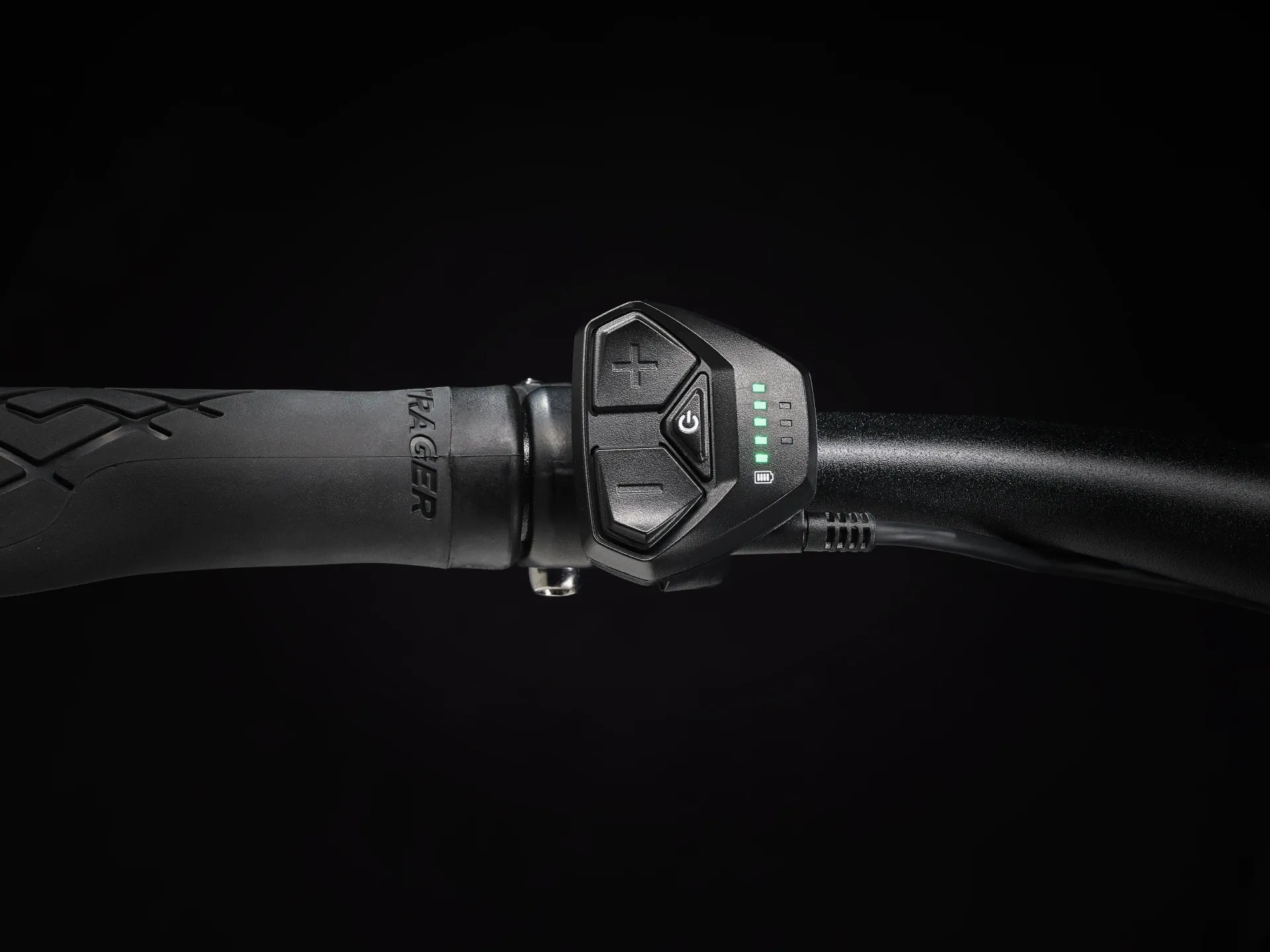

Computer: LED display
Drivetrain
Shifter: Shimano M315, 8-speed
Rear derailleur: Shimano Acera M3020-8, 40T max cog
*Crank:
Size: S, M – ProWheel Pro alloy, 42T narrow-wide steel ring, 170 mm length
Size: L, XL – ProWheel Pro alloy, 42T narrow-wide steel ring, 175 mm length
Bottom bracket: Torque sensor, threaded, 122.5 mm spindle
Cassette: Shimano HG400, 11-40, 8-speed
Chain: KMC Z8.3
Pedal: Bontrager City pedals
Max. chainring size: 1x: 42T, 2x/3x: 48T
Components
Saddle: Bontrager Sport
*Seatpost:
Size: S, M – Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: L, XL – Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length

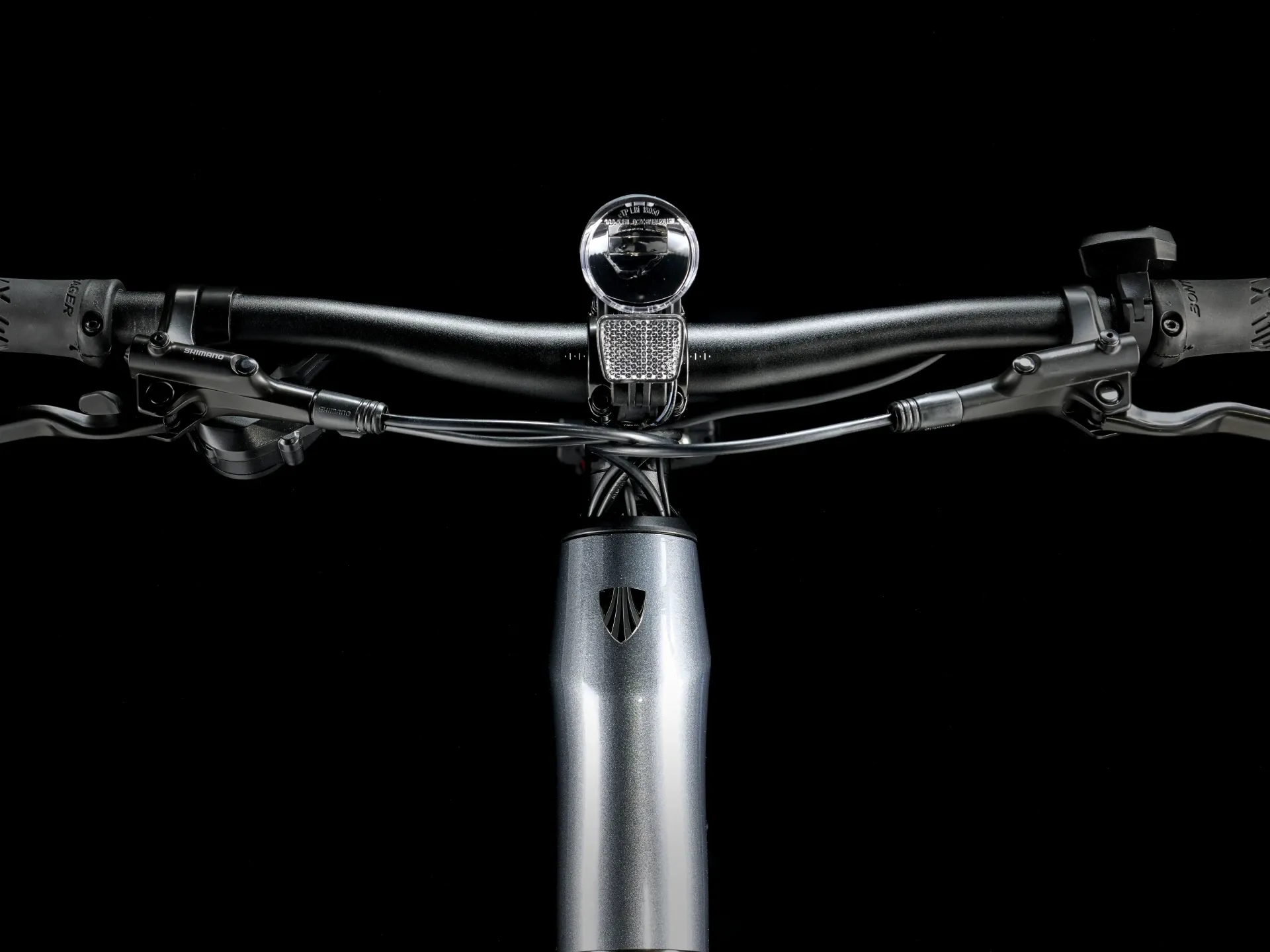

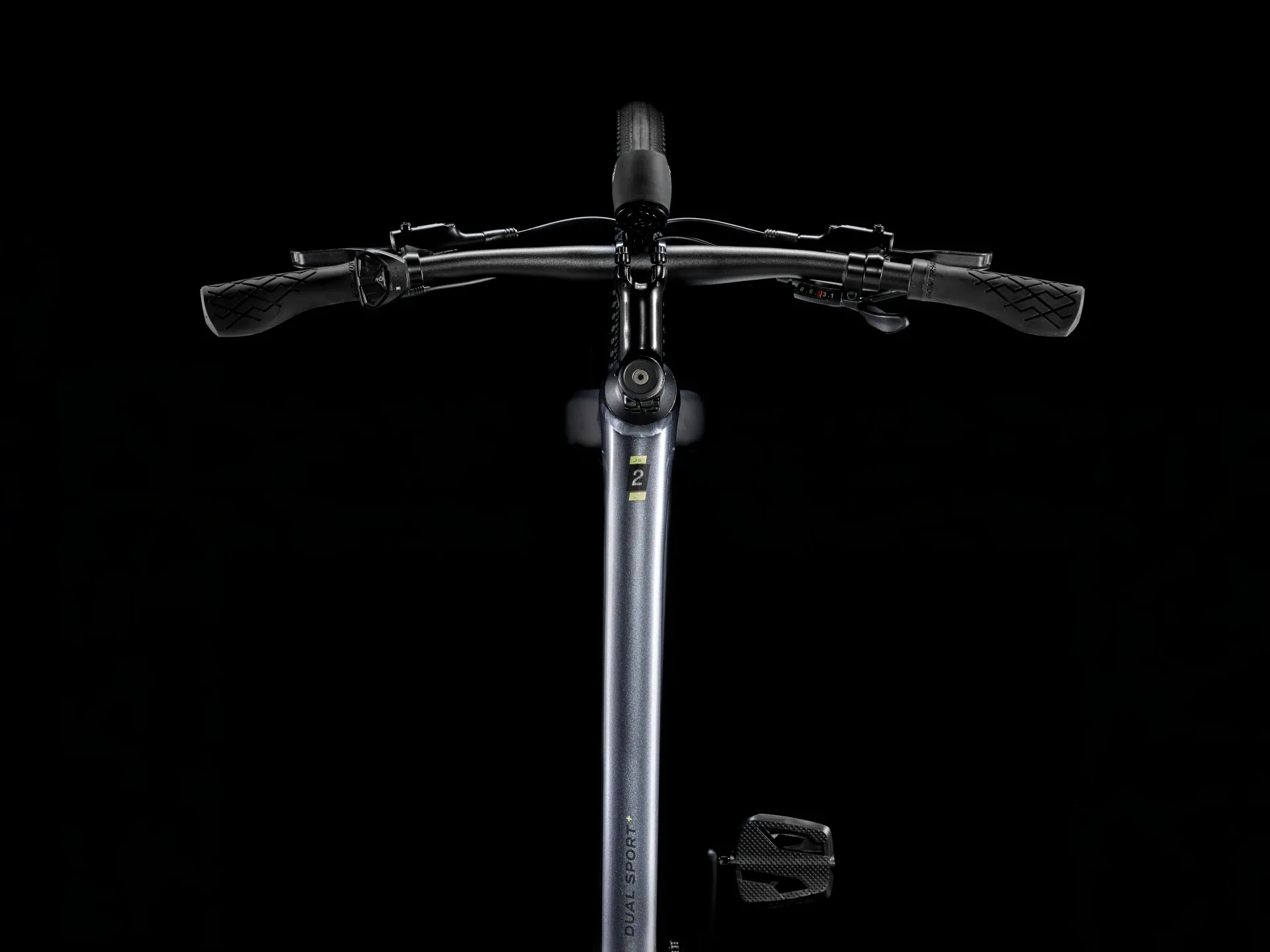

*Handlebar:
Size: S, M – Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width
Size: L, XL – Bontrager alloy, 31.8 mm, 15 mm rise, 690 mm width
Grips: Bontrager XR Endurance Comp, lock-on
*Stem:
Size: S – Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length
Size: M – Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
Size: L, XL – Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length
Brakes

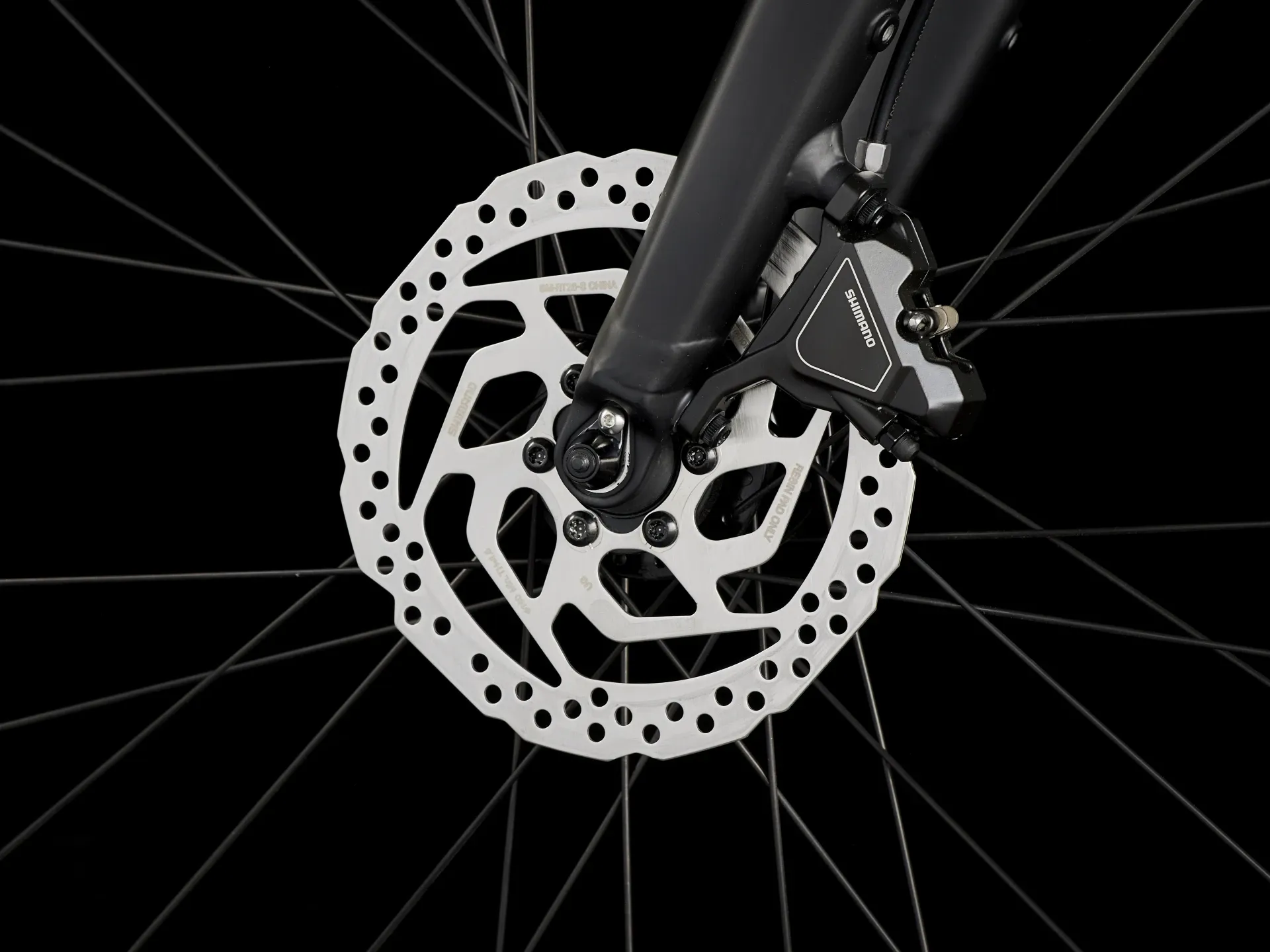

Brake: Shimano hydraulic disc, MT200 lever, UR300 calliper
Brake rotor: Shimano RT26, 6-bolt, 160 mm
Rotor size: Max brake rotor sizes: 160 mm front & rear
Accessories

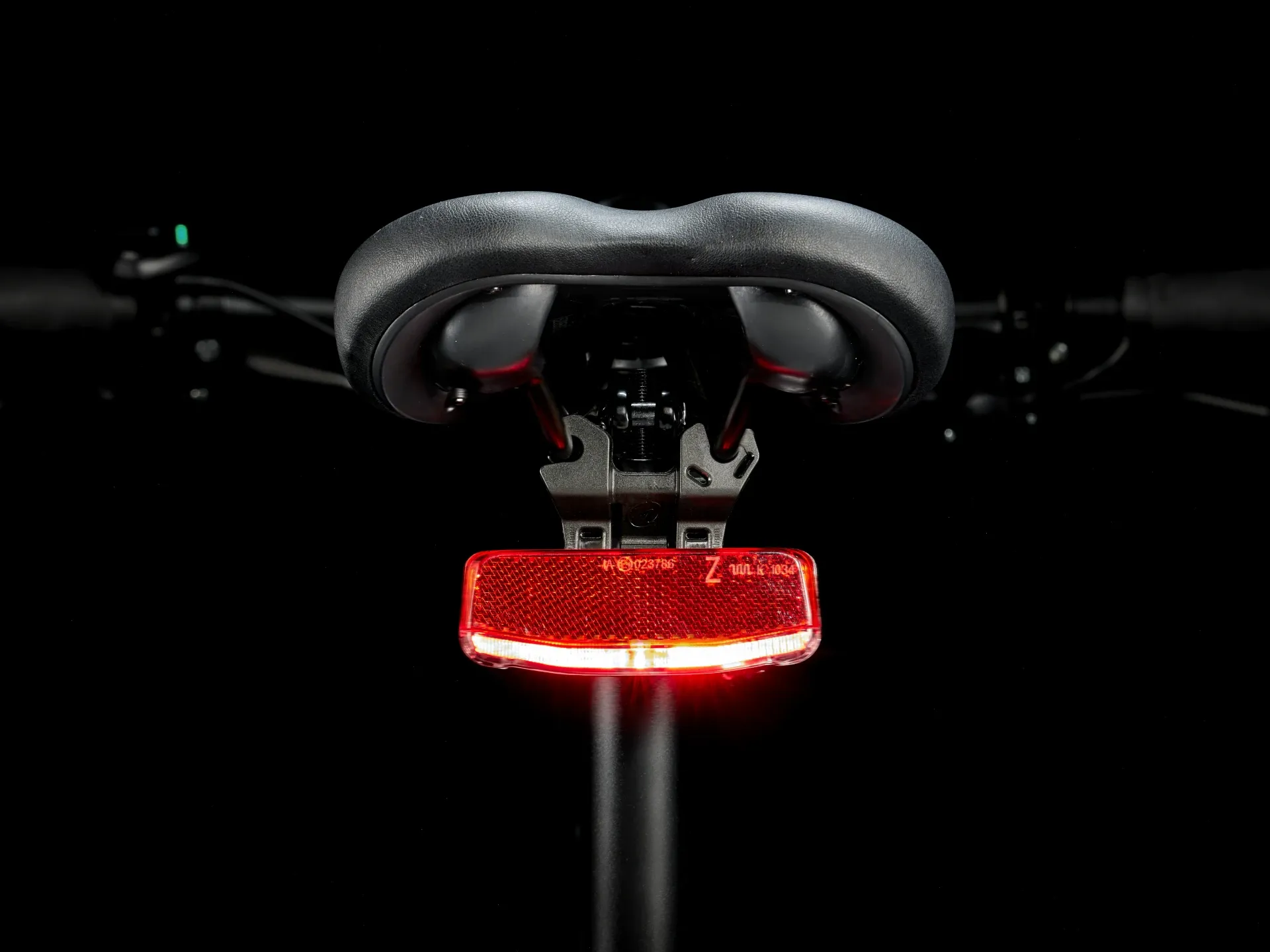

*Light: Size: S, M, L, XL – Herrmans MR4, 120-lumen LED / Spanninga Solo
Kickstand: Pletscher Comp 18
Weight
Weight: M – 17.35 kg / 38.26 lb
Weight limit: 136 kg (300 lb)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
