*Please note – spec applies to all sizes unless listed separately
Frameset
Frame:

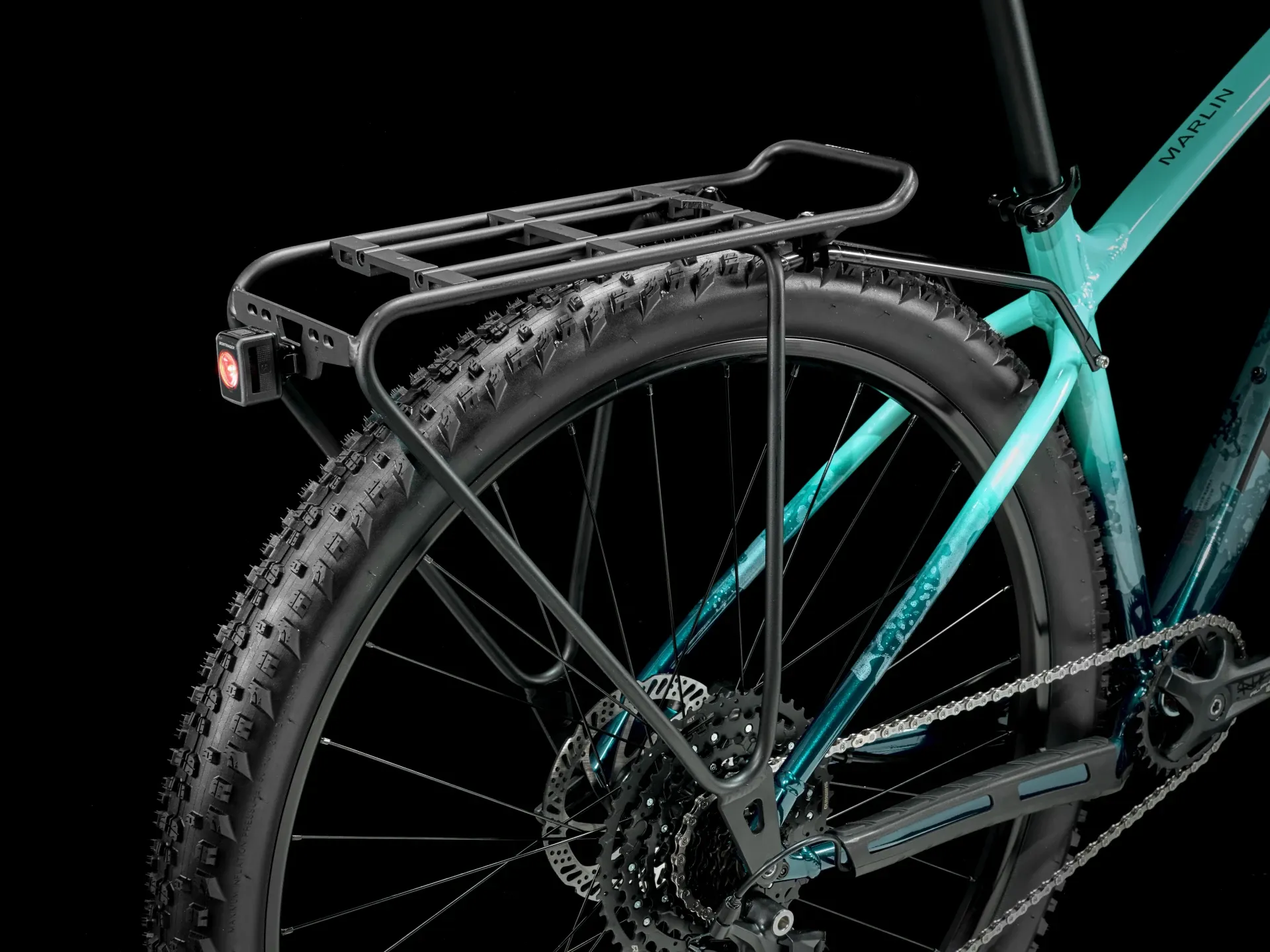

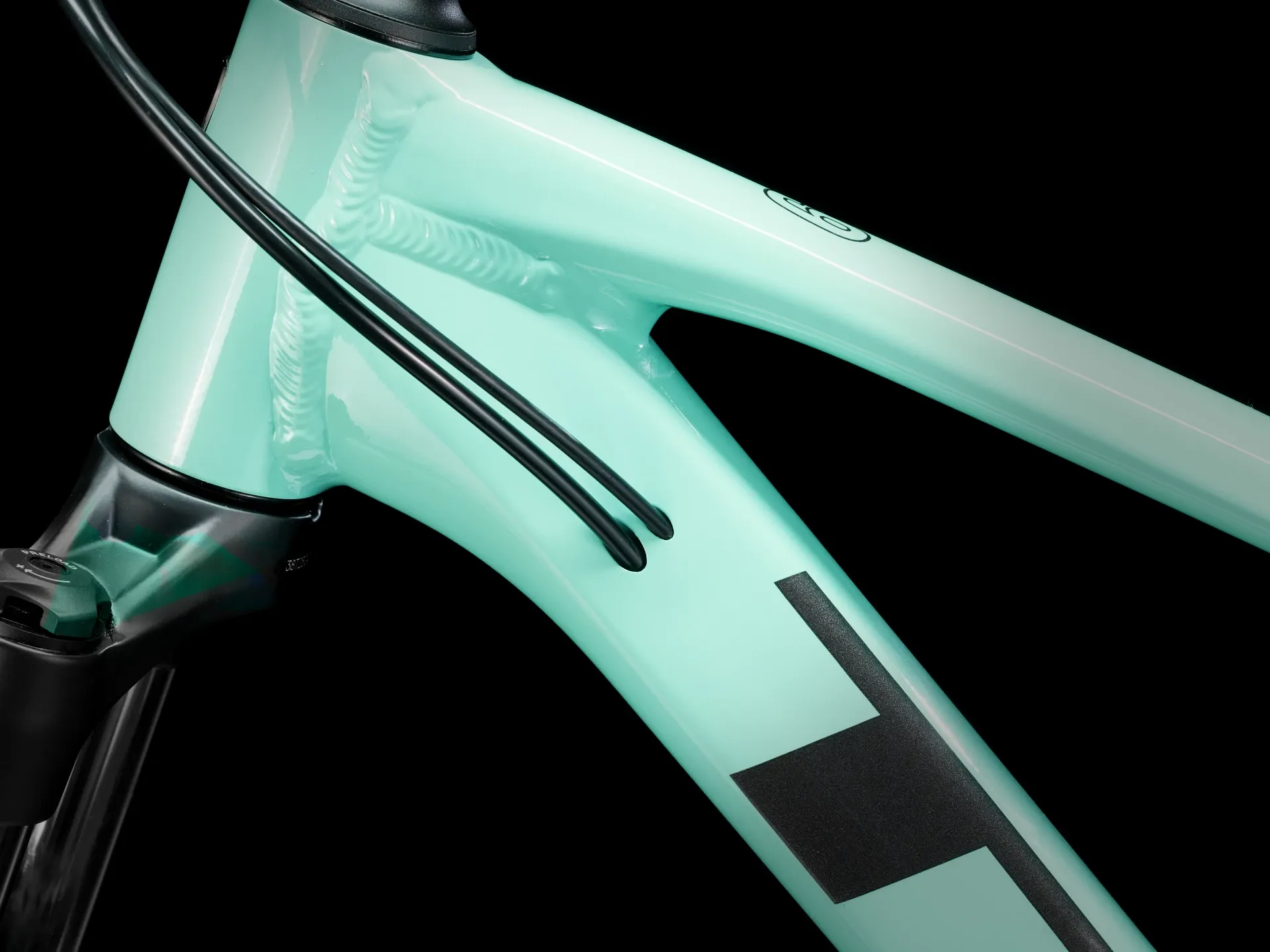

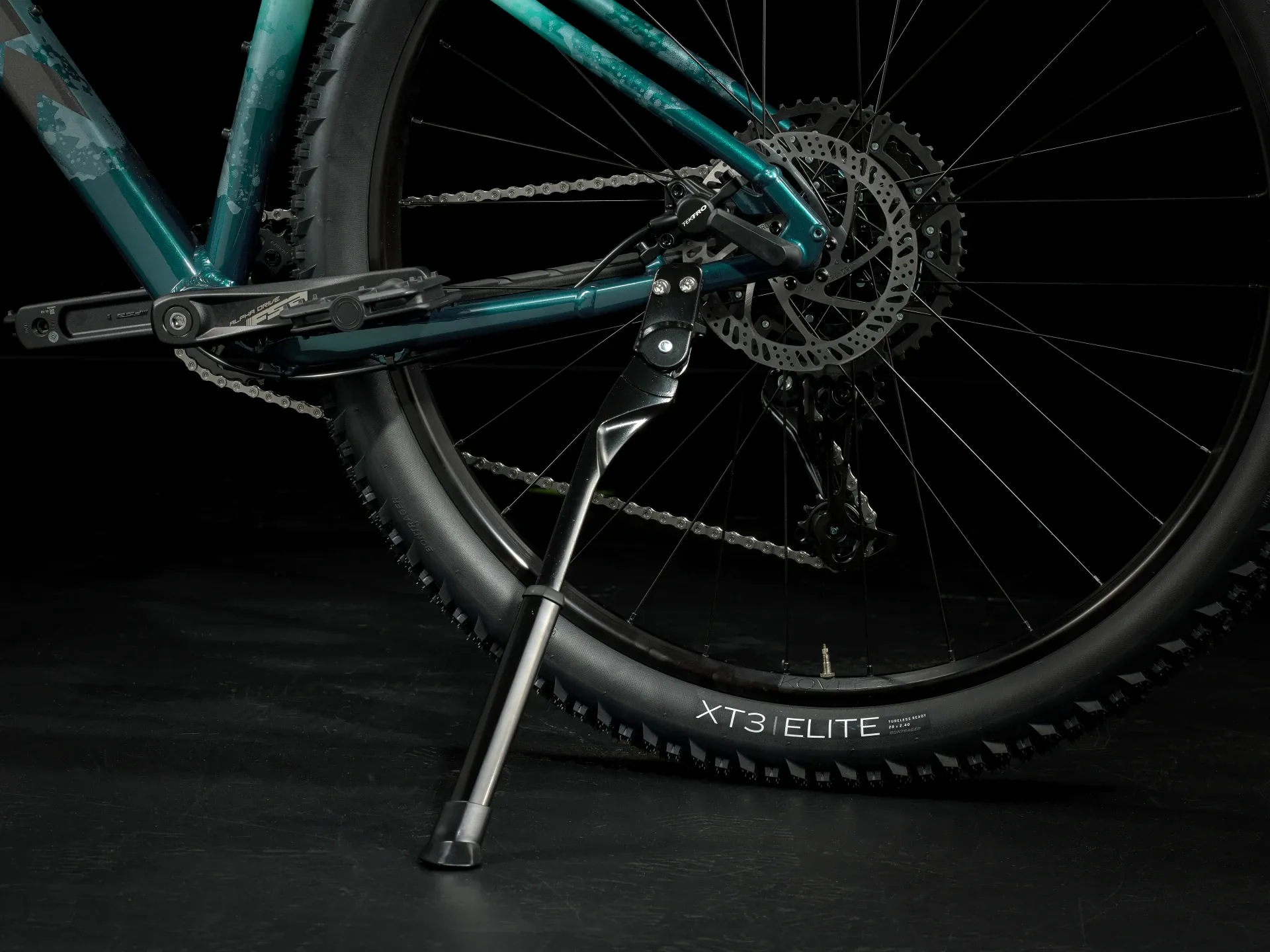

Size: XXS, XS – Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Size: S, M, ML, L, XL, XXL – Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Fork:

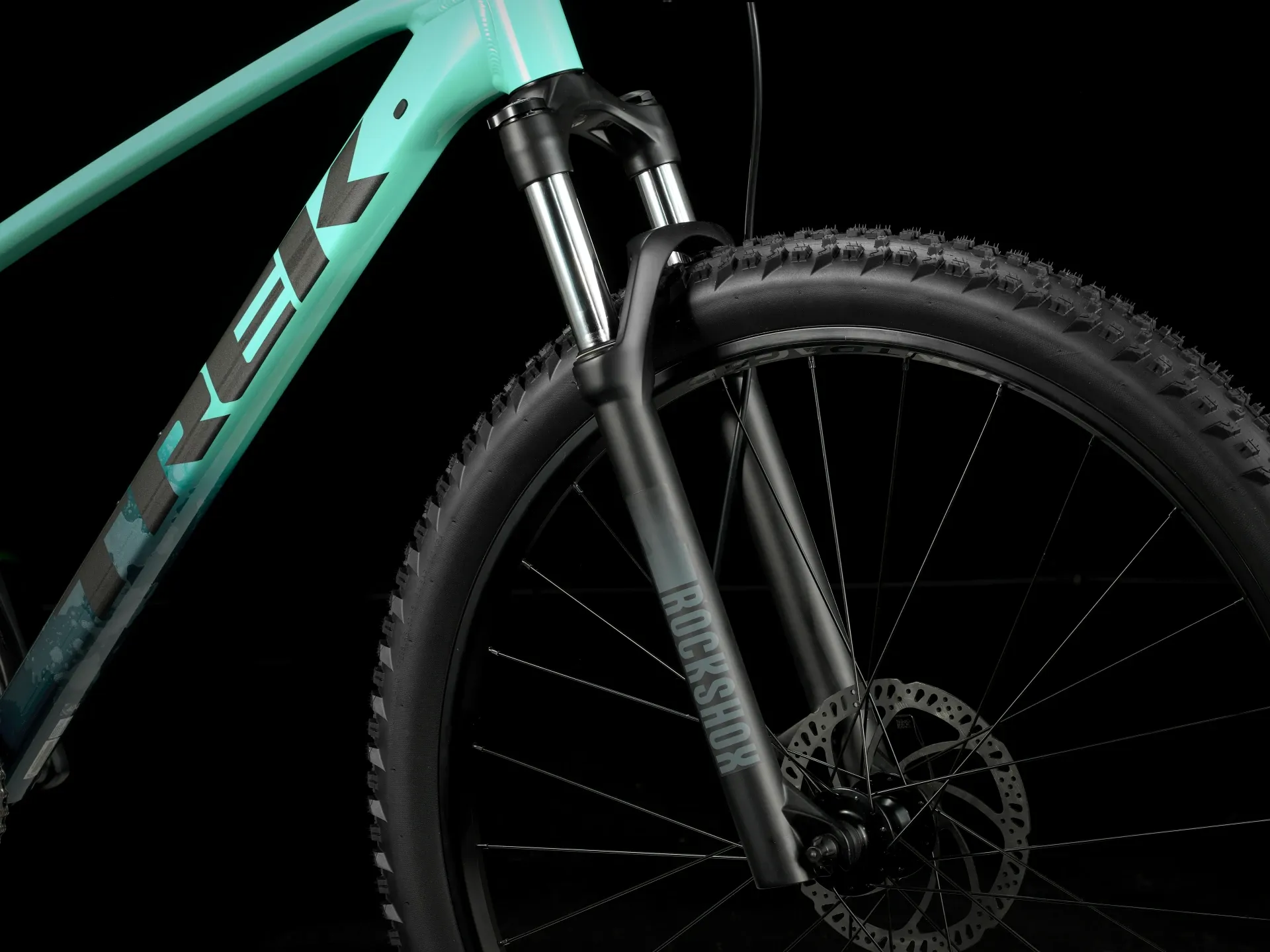

Size: XXS – RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
Size: XS – RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Size: S – RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Size: M, ML, L, XL, XXL – RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Max compatible fork travel: 120 mm, XXS: 80 mm
Wheels
Hub (front): Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew
Hub (rear): Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rim: Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
Tyres:

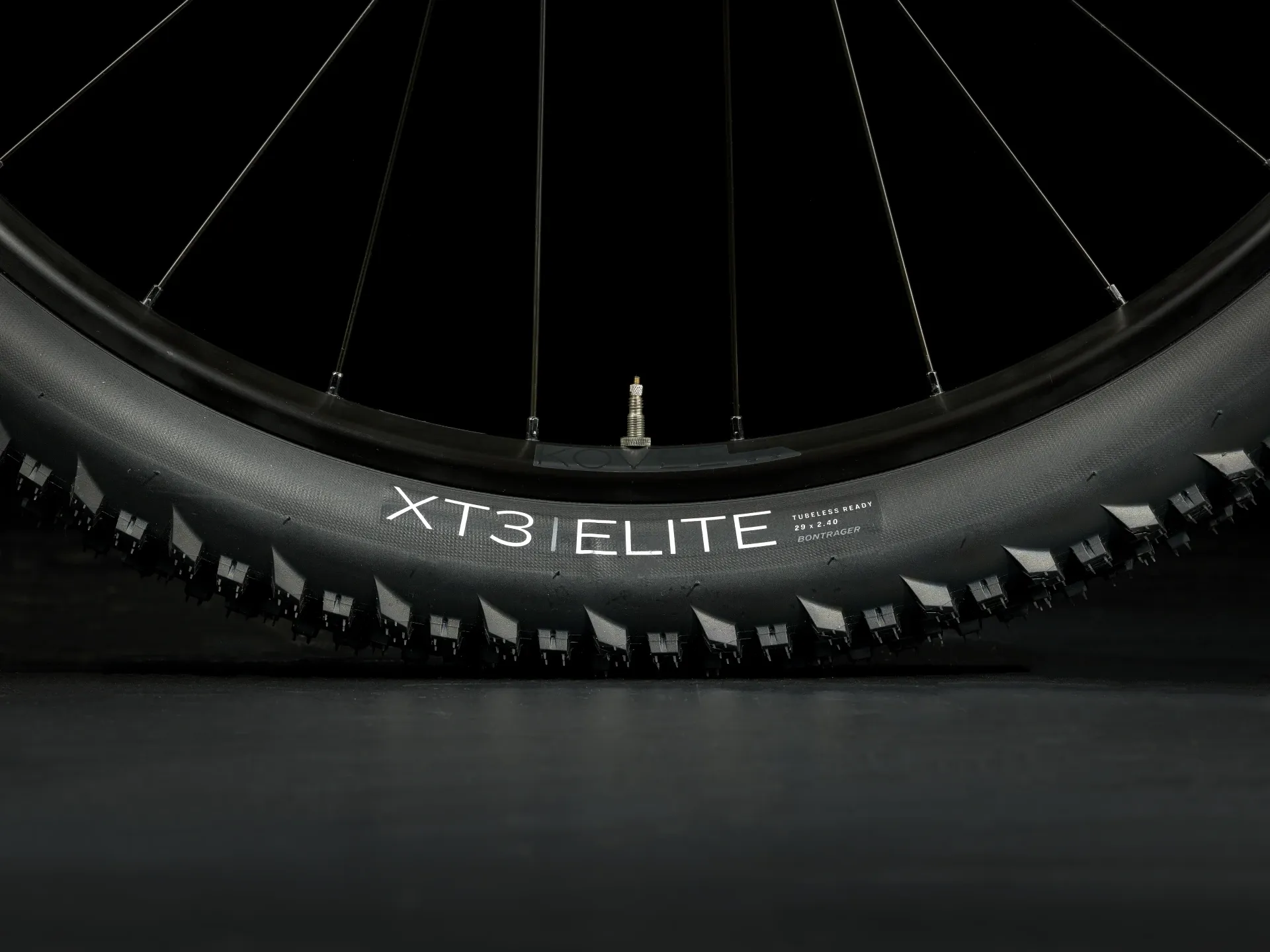

Size: XXS – Bontrager XT3 Elite, Tubeless Ready, Inner Strength casing, wire bead, 60 tpi, 26x2.35"
Size: XS, S – Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60 tpi, 27.5x2.35"
Size: M, ML, L, XL, XXL – Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60 tpi, 29x2.35"
Max tyre size: Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer
Drivetrain
Shifter: Shimano U6000, 10-speed

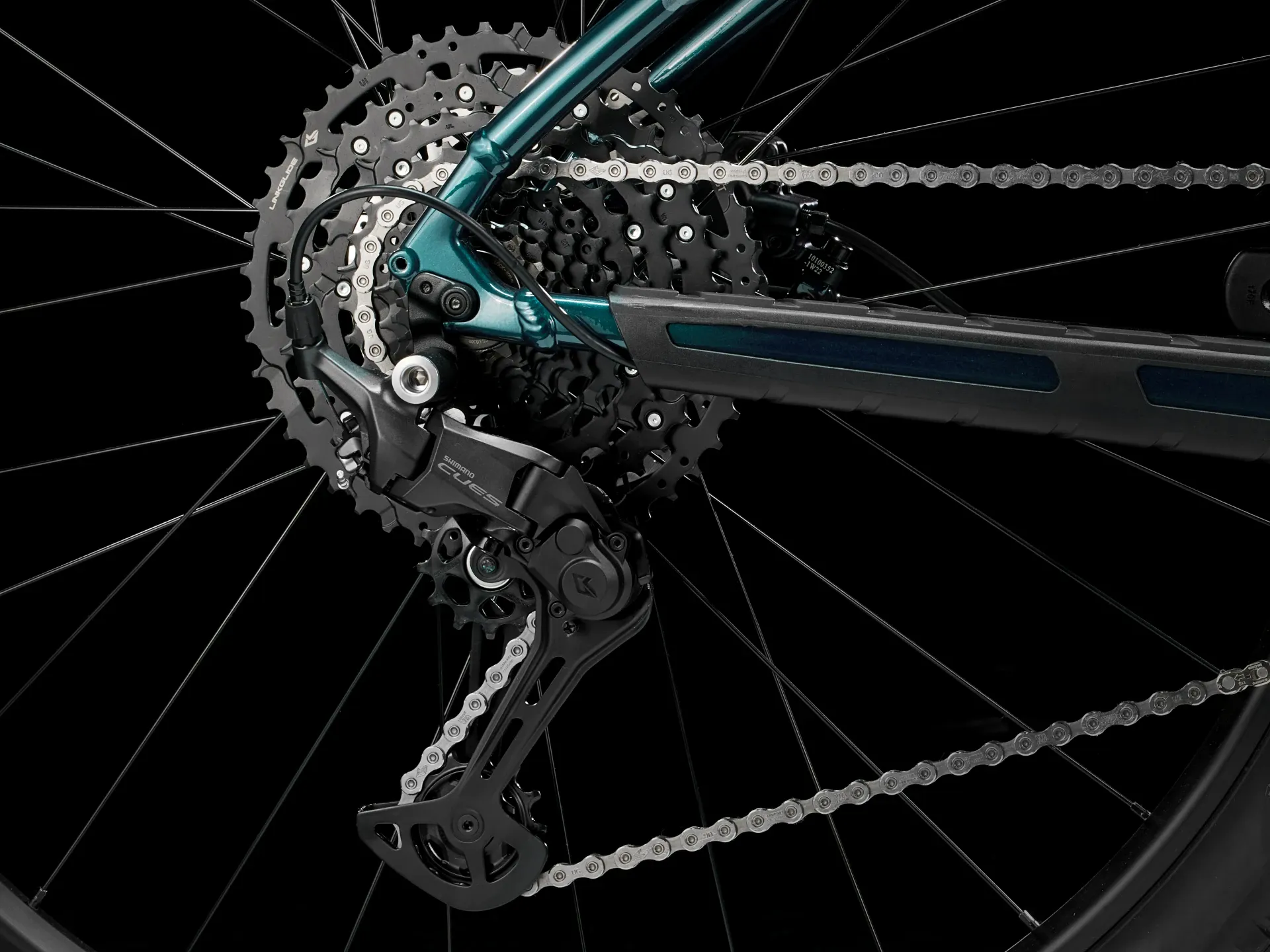

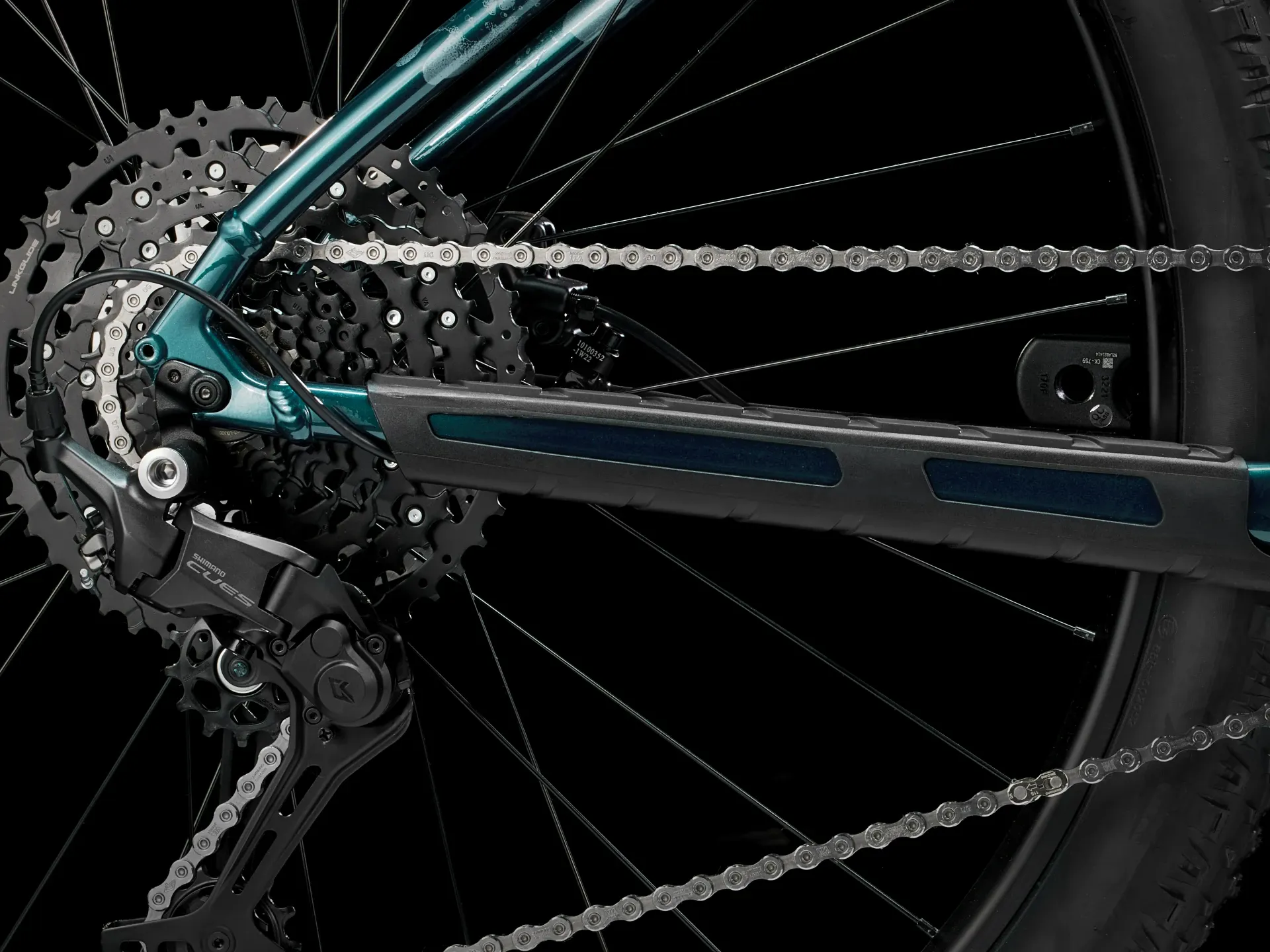

Rear derailleur: Shimano CUES U6000 GS
Crank:

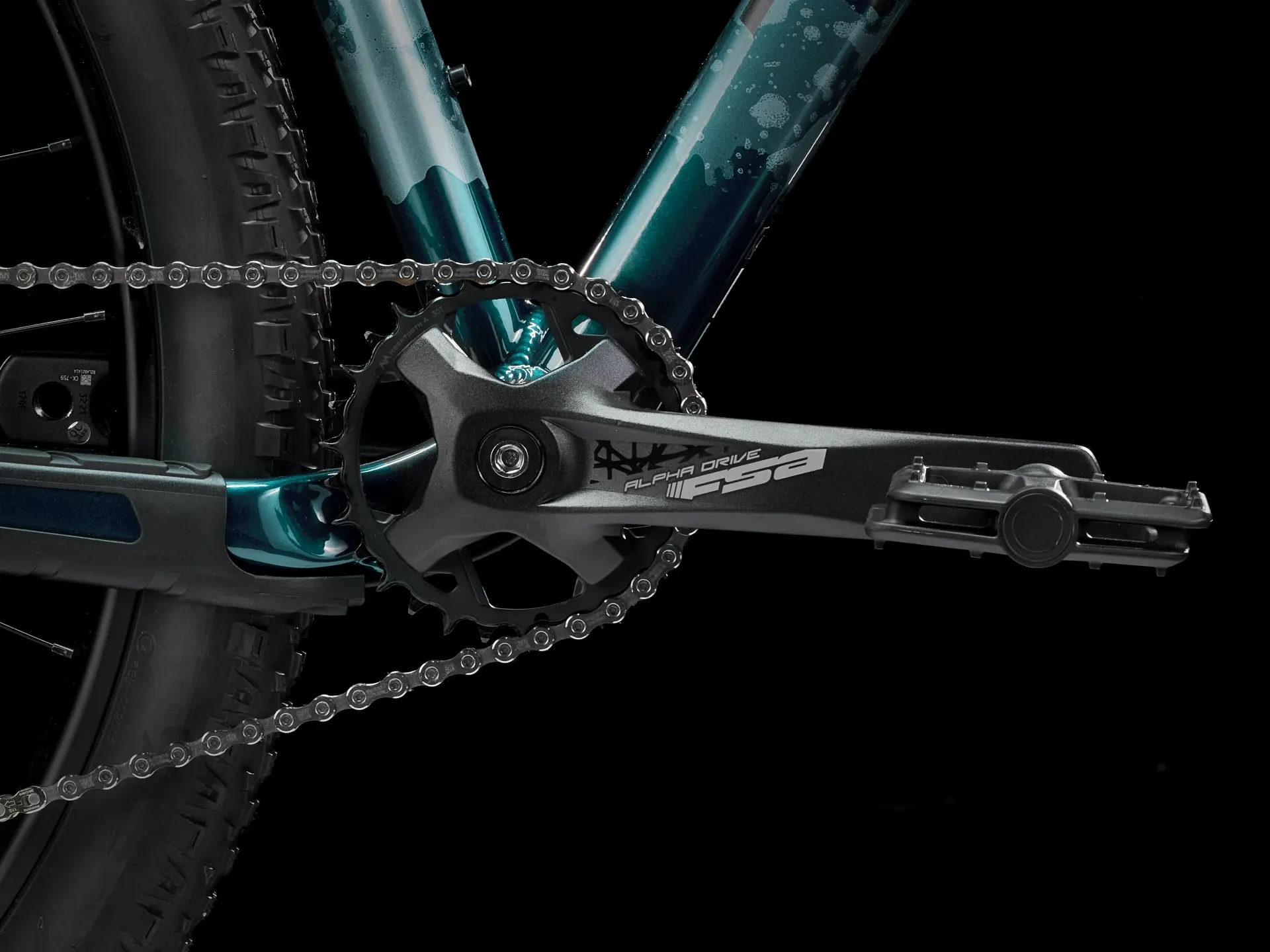

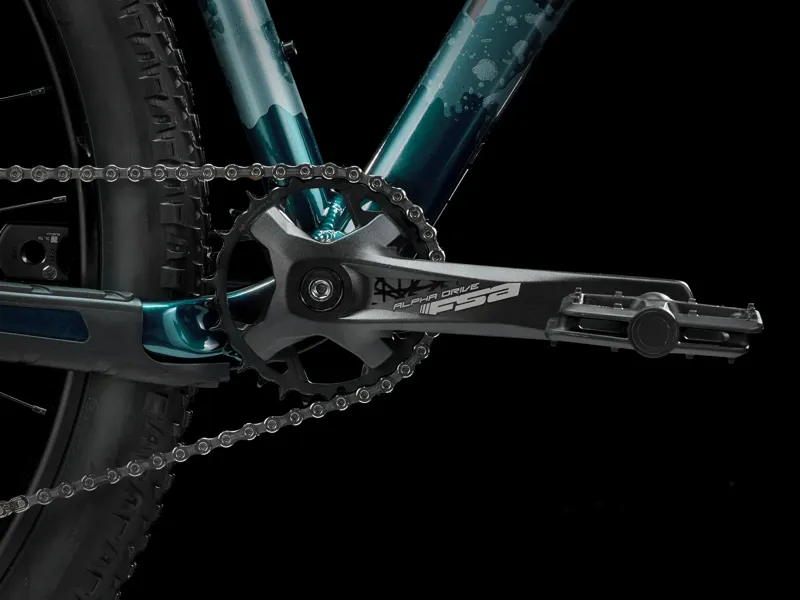

Size: XXS, XS – FSA Alpha Drive, 30T, 160 mm length
Size: S, M, ML – FSA Alpha Drive, 30T, 170 mm length
Size: L, XL, XXL – FSA Alpha Drive, 30T, 175 mm length
Bottom bracket: FSA, 73 mm, threaded cartridge, 122.5 mm spindle
Cassette: Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
Chain: Shimano LG500
Pedal: VP-536 nylon platform
Max. chainring size: 1x: 34T, 2x: 36/22
Components
Saddle: Bontrager Verse Short, stainless steel rails
Seatpost:
Size: XXS – Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length
Size: XS, S, M – Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: ML, L, XL, XXL – Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Handlebar:
Size: XXS, XS – Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Size: S – Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size: M, ML, L, XL, XXL – Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips: Bontrager XR Trail Comp, nylon lock-on
Stem:
Size: XXS, XS, S – Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length
Size: M, ML, L – Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
Size: XL – Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size: XXL – Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Headset: Semi-integrated, 1-1/8"
Brakes
Brake set:

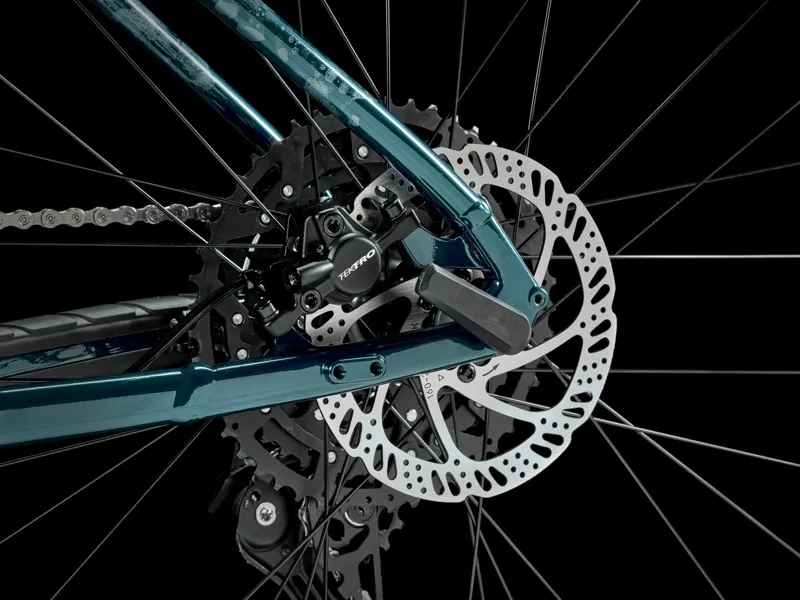

Size: XXS, XS, S – Tektro HD-M276 hydraulic disc, short reach
Size: M, ML, L, XL, XXL – Tektro HD-M275 hydraulic disc
Brake rotor: Tektro, 6-bolt, 160 mm
Rotor size: Max brake rotor sizes - Frame: 180 mm (XXS: 160 mm), Fork: see fork manufacturer
Weight
Weight: M – 14.50 kg / 31.97 lbs (with tubes)
Weight limit: 136 kg (300 lb)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
