Please note – spec applies to all sizes unless listed separately
Frameset
Frame: SLR OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel
Fork: RockShox SID SL Ultimate, Flight Attendant Race Day damper, Stealth DebonAir spring, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 110 mm travel

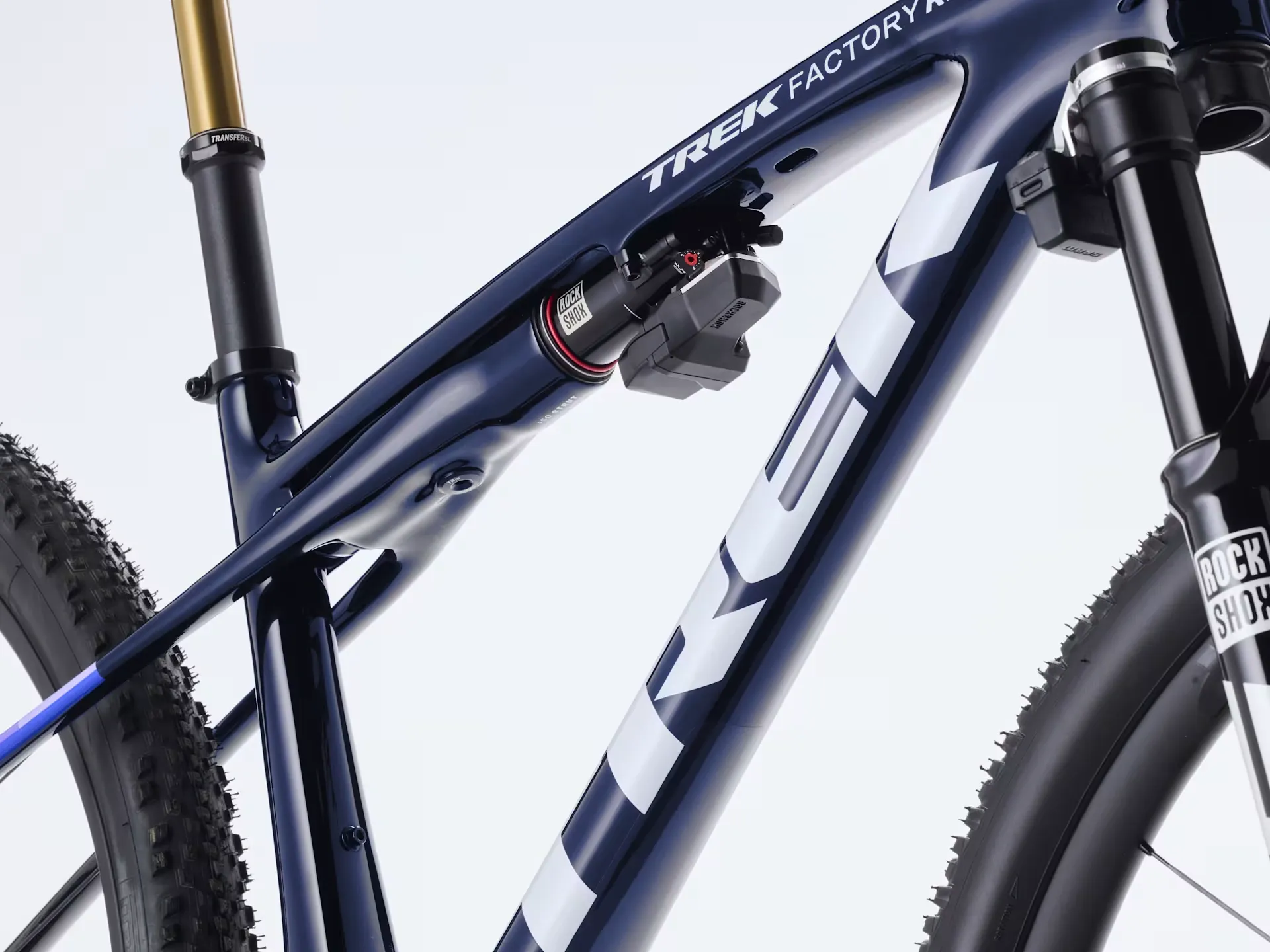

Shock: Trek IsoStrut, RockShox SIDLuxe, Flight Attendant RL3 damper
Wheels
Wheel front: Bontrager Kovee RSL, OCLV Mountain Carbon, Tubeless Ready, CentreLock, Boost110, 15 mm thru axle, 29"
Wheel rear: Bontrager Kovee RSL, OCLV Mountain Carbon, Tubeless Ready, CentreLock, Boost148, 12 mm thru axle, 29"
Skewer rear: Bontrager Switch thru axle, removable lever
Tyre:
Sizes S, M, ML, L, XL: Pirelli Scorpion XC, Tubeless-Ready, Team Edition Pro Wall, aramid bead, 120 tpi, 29x2.20"
Sizes S, M, ML, L, XL: Bontrager Sainte-Anne RSL XR, Tubeless Ready, dual compound, aramid bead, 220 tpi, 29x2.40"
Sizes S, M, ML, L, XL: Pirelli Scorpion XC RC, Tubeless-Ready, Team Edition Pro Wall, aramid bead, 120 tpi, 29x2.40"
Tyre part: Bontrager TLR sealant, 180 ml/6 oz
Rim strip: Bontrager TLR
Max tyre size: Frame: 29x2.40", Fork: See manufacturer

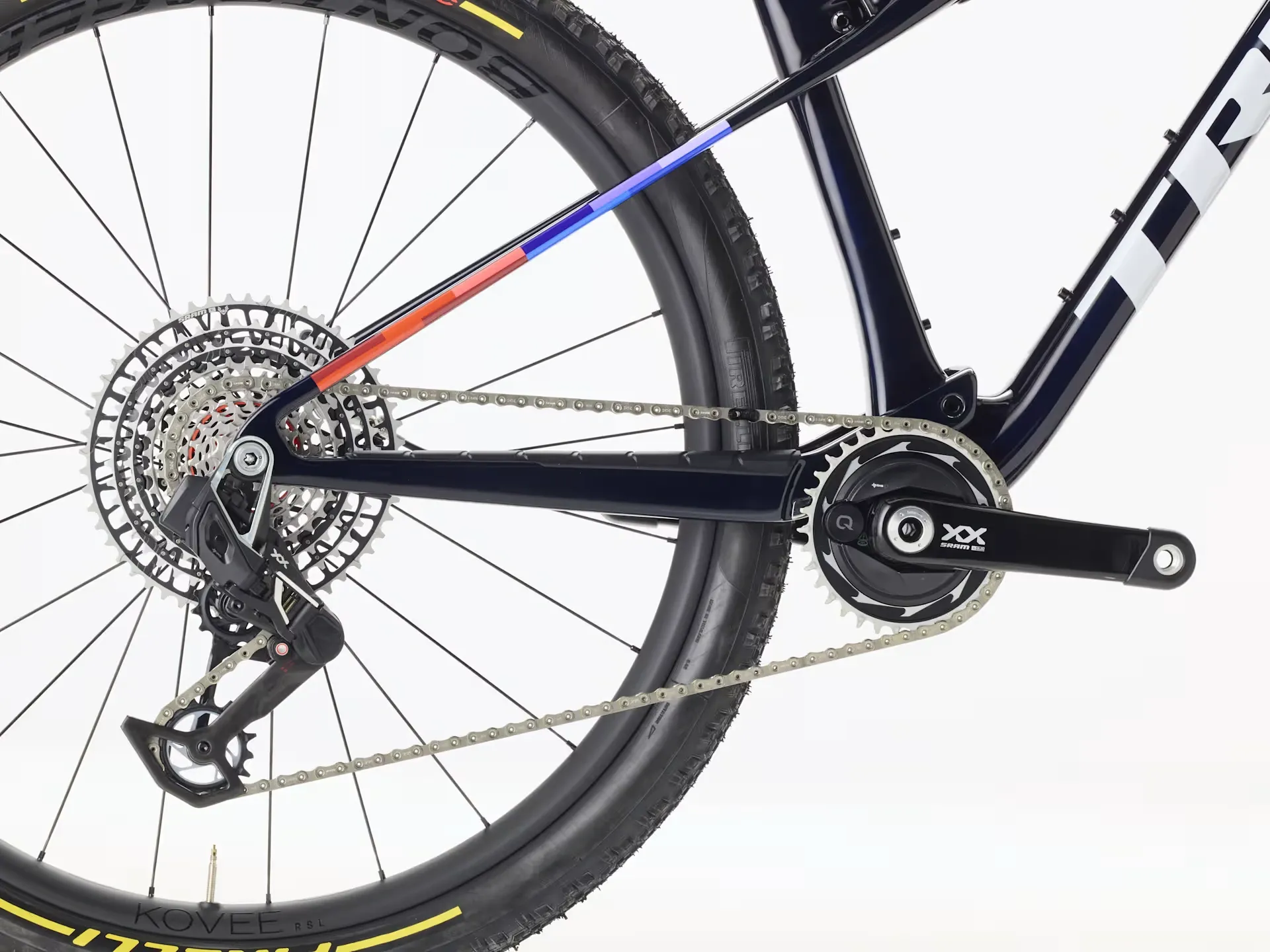

Drivetrain
Shifter: SRAM AXS pod
Rear derailleur: SRAM XX SL Eagle AXS, T-Type
Crank:
Sizes S, M, ML: SRAM XX SL, Flight Attendant, DUB Wide, 34T alloy ring, 55 mm chainline, 170 mm length
Sizes L, XL: SRAM XX SL, Flight Attendant, DUB Wide, 34T alloy ring, 55 mm chainline, 175 mm length
Bottom bracket: SRAM DUB, 92 mm, PressFit
Cassette: SRAM Eagle XS-1299, T-Type, 10-52, 12-speed
Chain: SRAM XX Eagle, T-Type, 12-speed
Max. chainring size: 1x: 38T, min 30T
Components
Saddle: Aeolus RSL, carbon rails, 145 mm width
Seatpost:
Sizes S, M: Fox Transfer SL, 100 mm travel, internal routing, 31.6 mm
Sizes ML, L: Fox Transfer SL, 125 mm travel, internal routing, 31.6 mm
Size XL: Fox Transfer SL, 150 mm travel, internal routing, 31.6 mm
Handlebar/stem (integrated):
Sizes S, M, ML: Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 70 mm length
Size L: Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 80 mm length
Size XL: Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 90 mm length
Grips: ESI Chunky
Head set: FSA IS-2, 1-1/8" top, 1.5" bottom
Brake: SRAM Motive Ultimate 4-piston hydraulic disc
Brake rotor:
Sizes S, M, ML, L, XL: SRAM CentreLine X, CentreLock, round edge, 160 mm
Sizes S, M, ML, L, XL: SRAM CentreLine X, CentreLock, round edge, 180 mm
Rotor size: Max brake rotor sizes - Frame: 160 mm
Weight
Weight: M - 10.28 kg / 22.67 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)
