Frameset

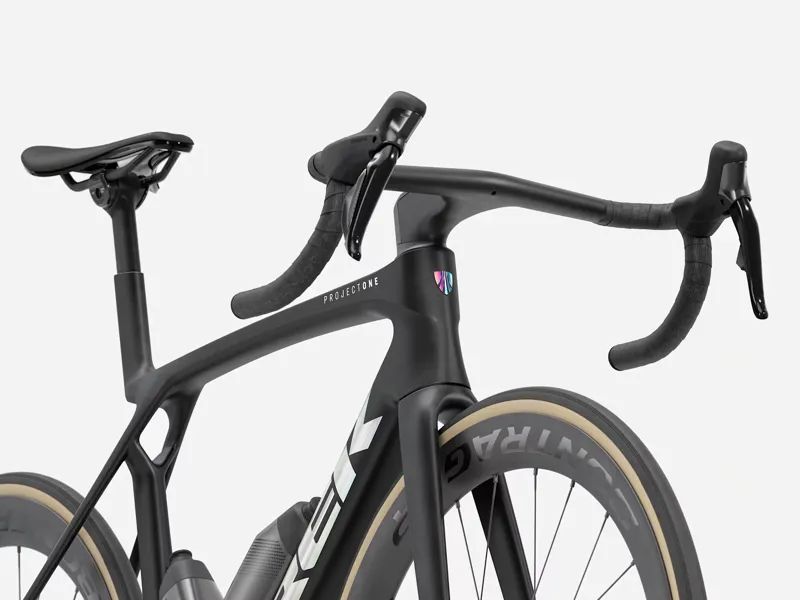

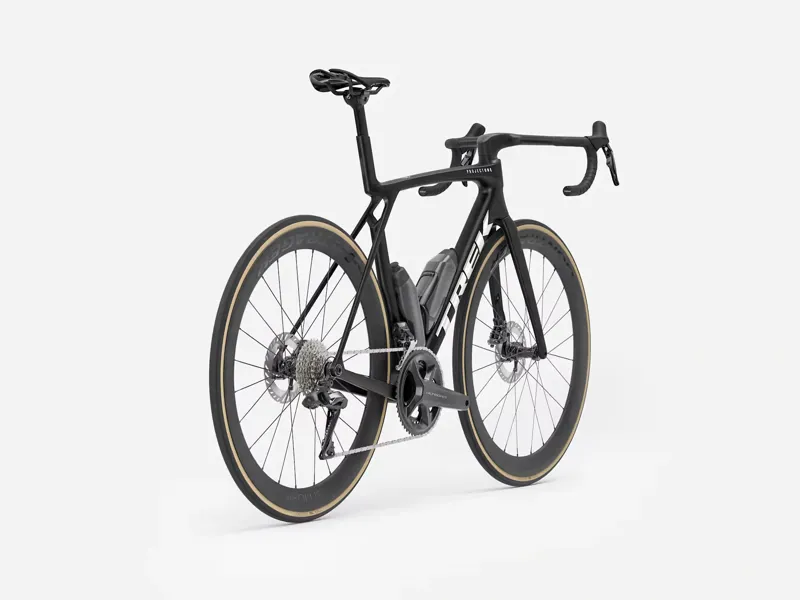

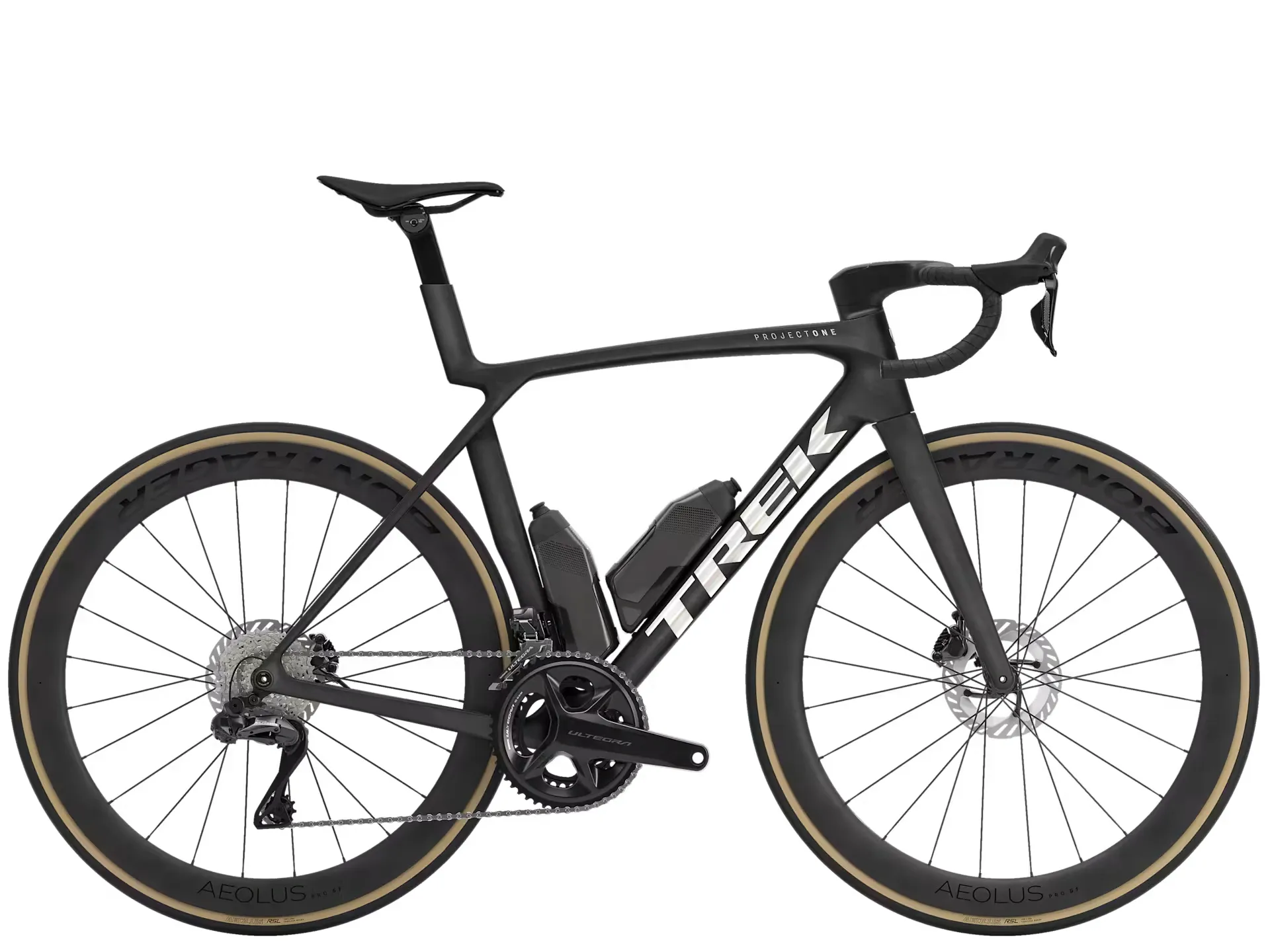

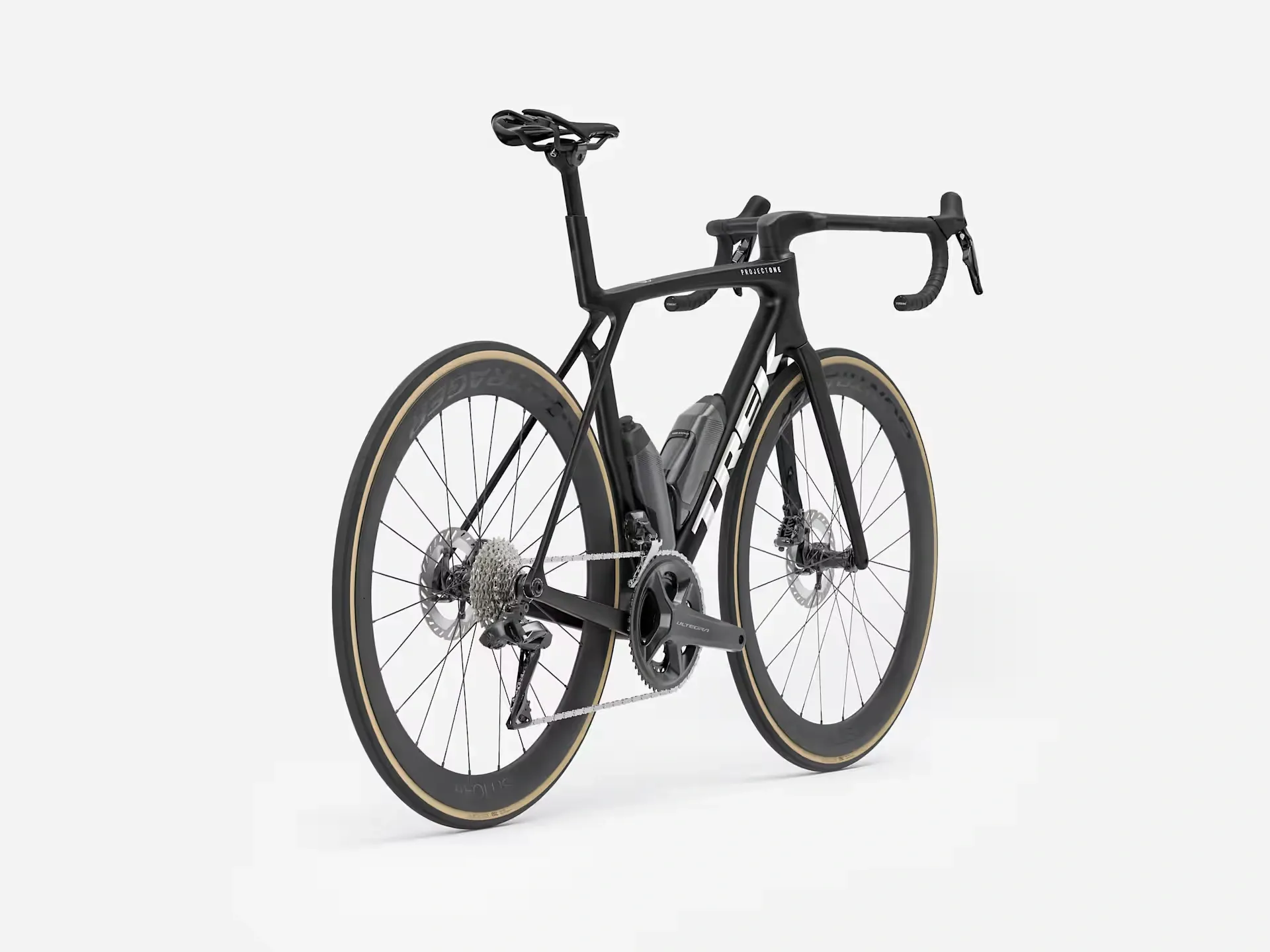

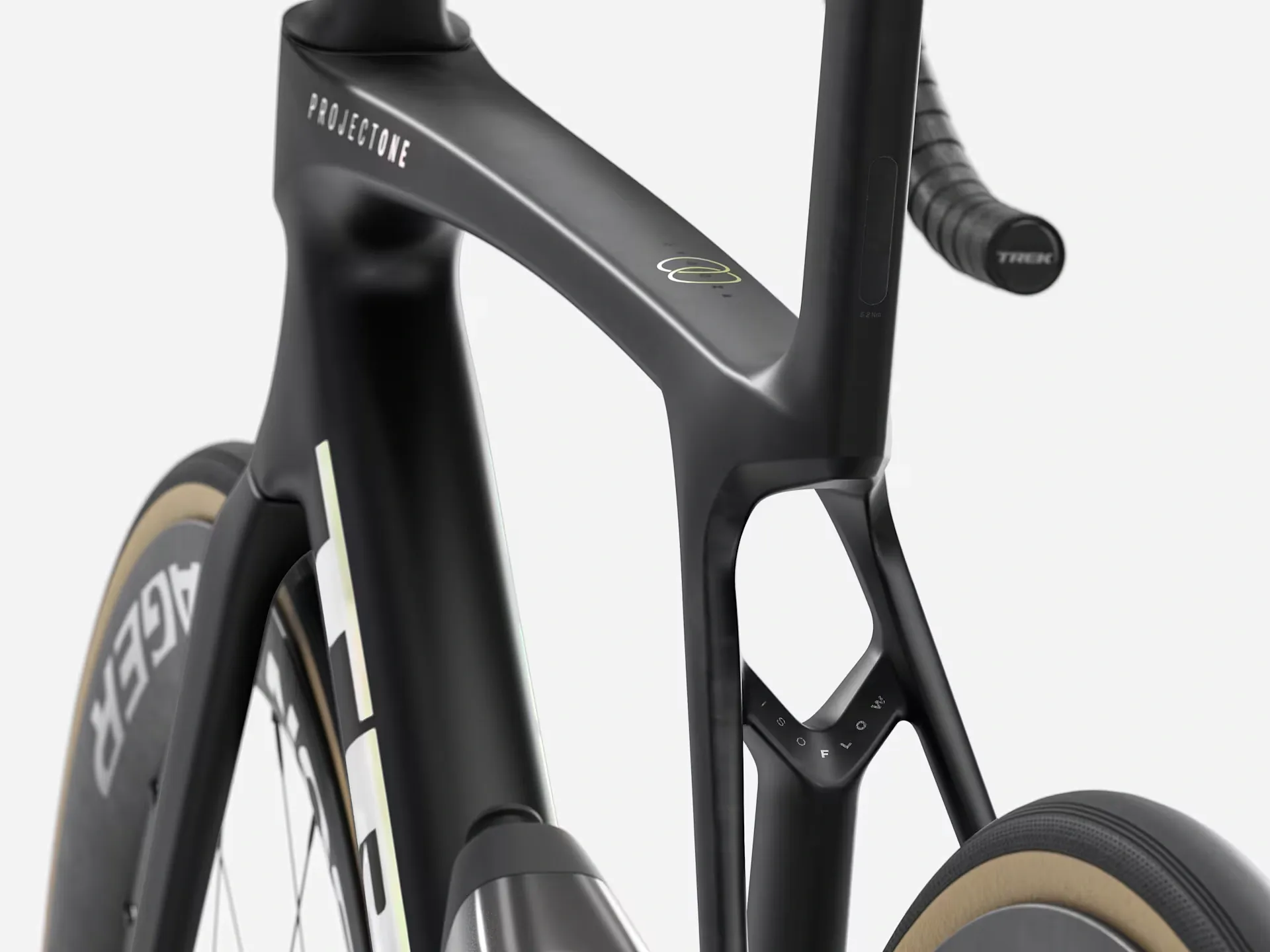

Frame: 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
Fork: Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
Weight
Weight: ML – 7.52 kg / 16.58 lb (with TLR sealant, no tubes, no bottles/cages)
Weight Limit: 125 kg (275 lb) combined rider, bike and cargo
E-System
Battery: Shimano BT-DN300
Drivetrain

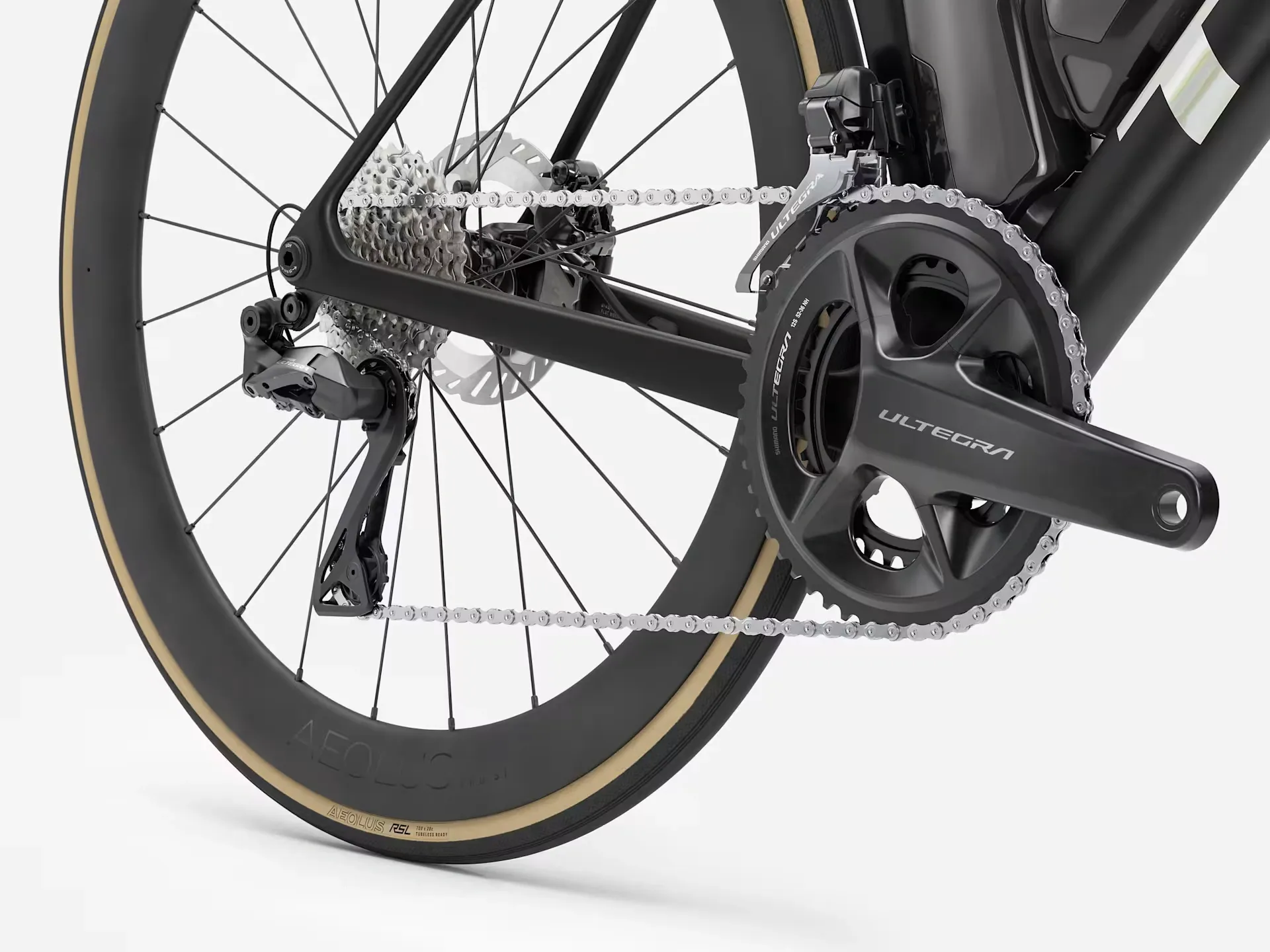

Shifter: Shimano Ultegra R8170 Di2, 12-speed
Front Derailleur: Shimano Ultegra R8150 Di2, braze-on, down swing
Rear Derailleur: Shimano Ultegra R8150 Di2, 34T max cog
Crankset: Shimano Ultegra R8100, 52/36T (length varies by size: 160mm–175mm)
Bottom Bracket: Praxis, T47 threaded, internal bearing
Cassette: Shimano Ultegra R8101, 11–30T, 12-speed
Chain: Shimano Ultegra / XT M8100
Max Chainring Size: 1x: 54T / 2x: 56/43
Wheels & Tyres
Front Wheel: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
Rear Wheel: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12mm thru axle
Tyres: Bontrager Aeolus RSL RD 700x28mm / Pirelli P Zero Race TLR RS 700x28mm / Pirelli P Zero Race 700x28mm
Tyre Sealant: Bontrager TLR sealant, 180ml / 6oz
Tube: Pirelli P Zero SmarTube (TPU)
Max Tyre Size: 32mm (as measured, see manual for details)
Components
Saddle: Bontrager Aeolus Pro (carbon rails, 145mm) or Trek Aeolus Pro (carbon fibre rails, AirLoom lattice, 145mm)
Seatpost: Madone aero carbon seatpost, 0mm offset, short length

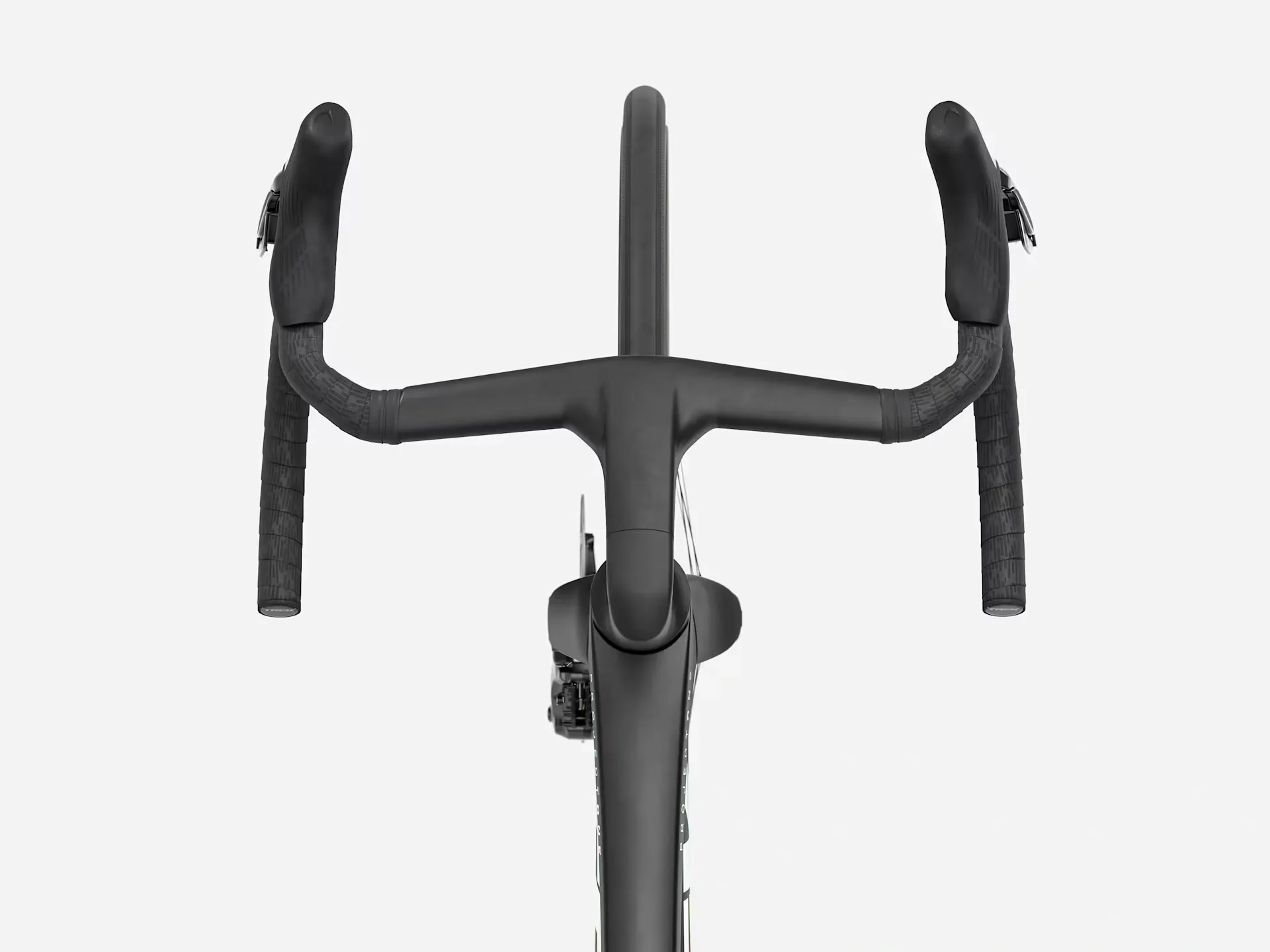

Handlebar/Stem: Trek Aero RSL Road Integrated Bar/Stem, OCLV Carbon, Race Fit (width and stem length vary by size)
Handlebar Tape: Trek EcoTack
Brake Rotors: Shimano CL800, CentreLock, 160mm
Max Rotor Size: 180mm front / 160mm rear
