Frameset

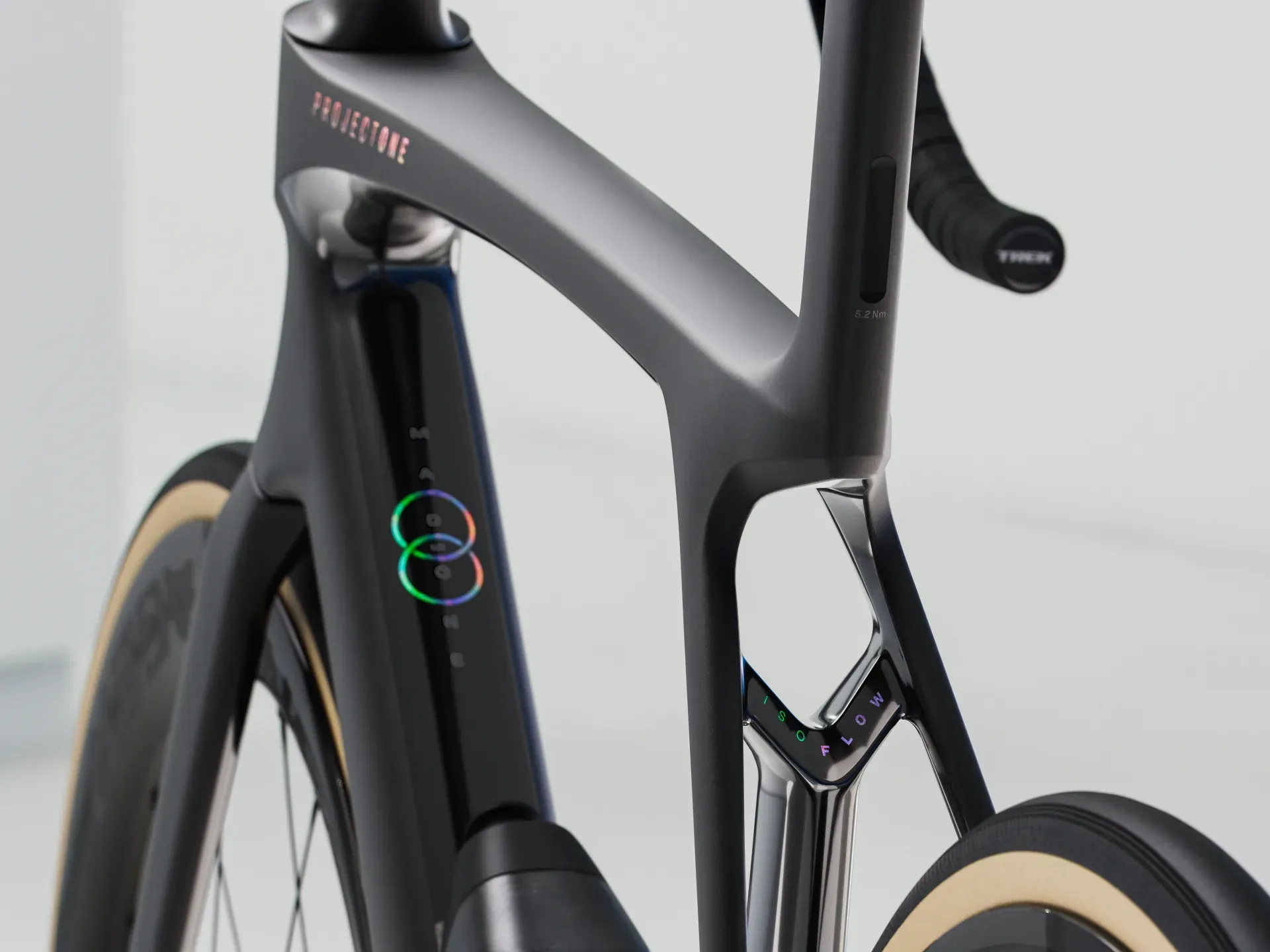

Frame: 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
Weight
Weight: ML – 7.08 kg / 15.61 lb (with TLR sealant, no tubes)
Weight Limit: 125 kg (275 lb) total (bike, rider, cargo)
E-system
Battery: Shimano BT-DN300
Charger: Charging cable included

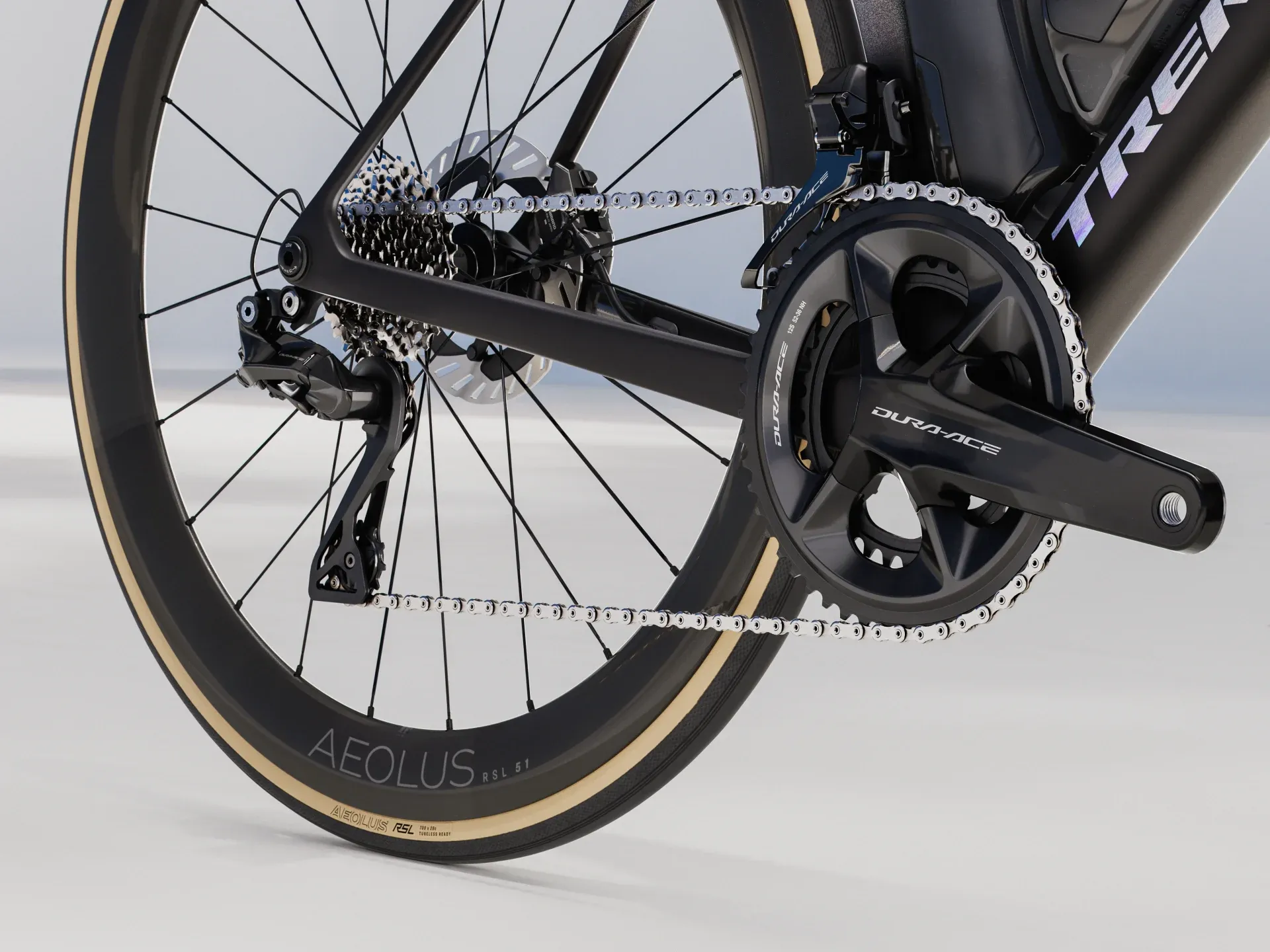

Drivetrain
Shifter: Shimano Dura-Ace R9270 Di2, 12 speed
Front Derailleur: Shimano Dura-Ace R9250 Di2, braze-on, down swing
Rear Derailleur: Shimano Dura-Ace R9250 Di2, 34T max cog
Crank:
- XS, S: Shimano Dura-Ace R9200, 52/36, 165mm length
- M: Shimano Dura-Ace R9200, 52/36, 170mm length
- ML, L: Shimano Dura-Ace R9200, 52/36, 172.5mm length
- XL: Shimano Dura-Ace R9200, 52/36, 175mm length
Bottom Bracket: Praxis, T47 threaded, internal bearing
Cassette: Shimano Dura-Ace R9200, 11-30, 12-speed
Chain: Shimano Dura-Ace/XTR M9100, 12-speed
Max Chainring Size: 1x: 54T, 2x: 56/43
Wheels & Tyres
Front Wheel: Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, 100x12mm thru axle
Rear Wheel: Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, Shimano 11/12 freehub, 142x12mm thru axle
Skewers: Bontrager Switch chamfered thru axle, removable lever (front & rear)
Tyres:
- XS, S, M, ML, L, XL: Bontrager Aeolus RSL RD, Tubeless-Ready, cotton construction, aramid bead, 170 tpi, 700x28 mm
- XS, S, M, ML, L, XL: Pirelli P Zero Race, 120 tpi, tubeless-compatible, 700x28 mm
Tyre Part: Bontrager TLR sealant, 180 ml/6 oz
Max Tyre Size: 32 mm (as measured, see manual for details)
Components
Saddle:
- XS, S: Aeolus RSL, carbon rails, 155 mm width
- M, ML, L, XL: Aeolus RSL, carbon rails, 145 mm width
Seatpost:
- XS, S, M: Madone aero carbon seat post, 0 mm offset, short length
- ML, L, XL: Madone aero carbon seat post, 0 mm offset, long length

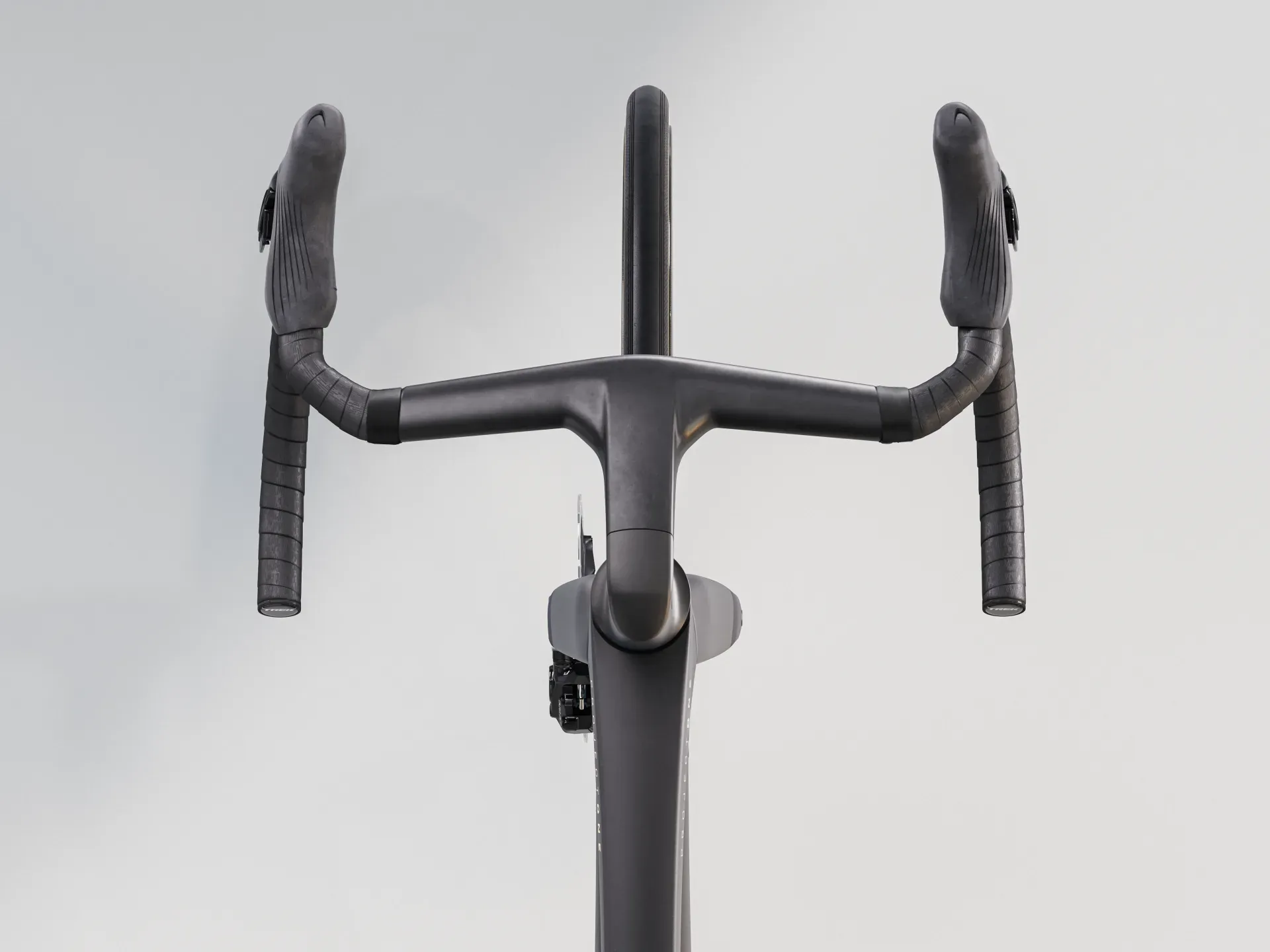

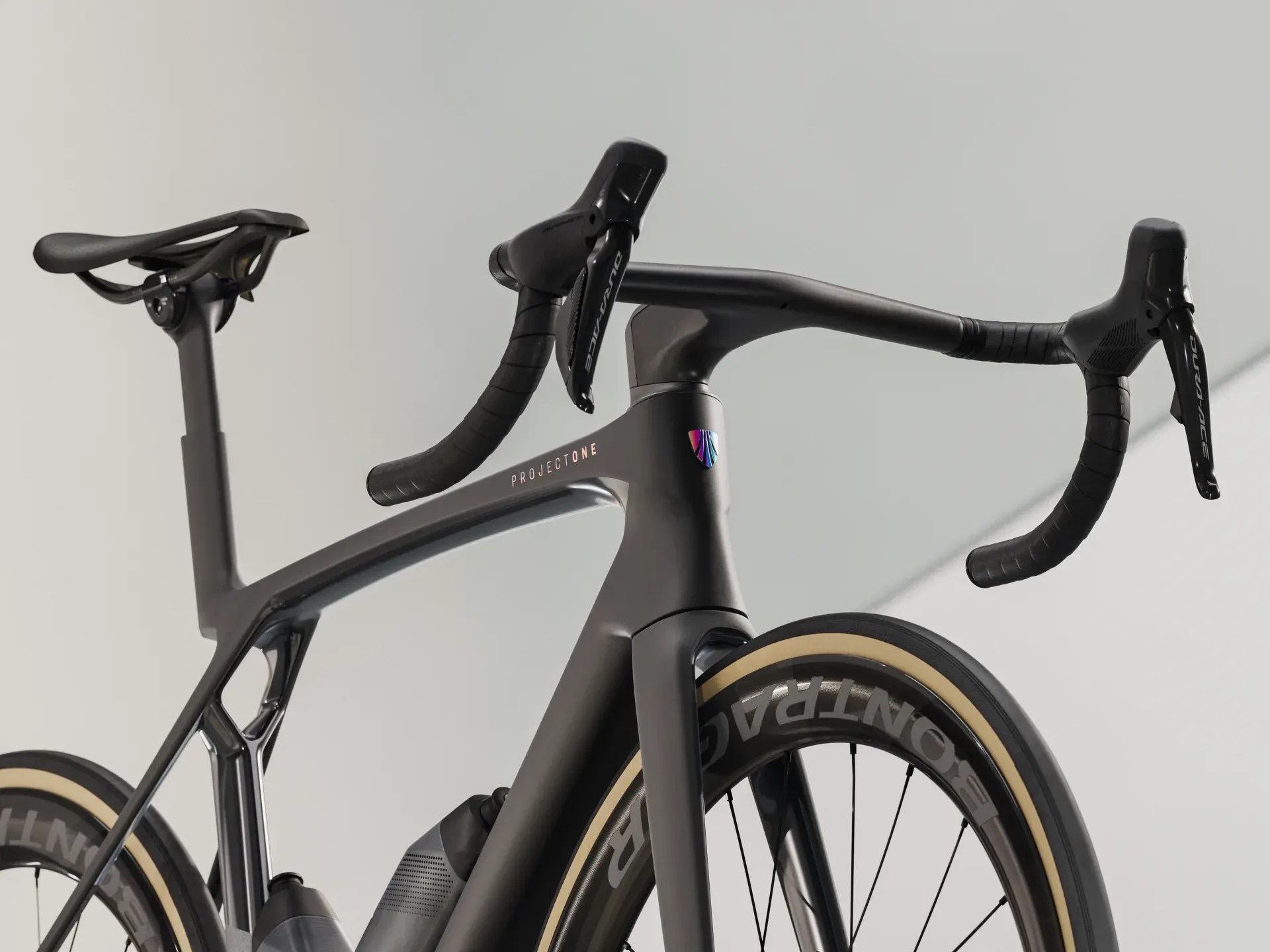

Handlebar/Stem (Integrated):
- XS: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length
- S: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length
- M: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length
- ML, L: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length
- XL: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length
Rotor Size: Max brake rotor sizes: 180 mm front, 160 mm rear
